Quick Start Guide — IPL T CR48, cont'd
Step 4
Attach the input and relay connections to the IPL T unit.
Step 5
Connect power cords and turn on the equipment in the following
order: output devices (projector lift, screen lift, lights, etc.),
IPL T CR48 interface, serial controller or computer (PC), then input
devices (motion detector, alarms, photo eyes, etc.).
Step 6
Configure the IPL T interface using the ARP command. Refer
to "IPL T CR48 interface configuration" in chapter 3 for more
information.
Step 7
Communicate with the IPL T CR48 interface via the default Web
pages. Refer to "Communication with the interface" in chapter 4 for
more information.

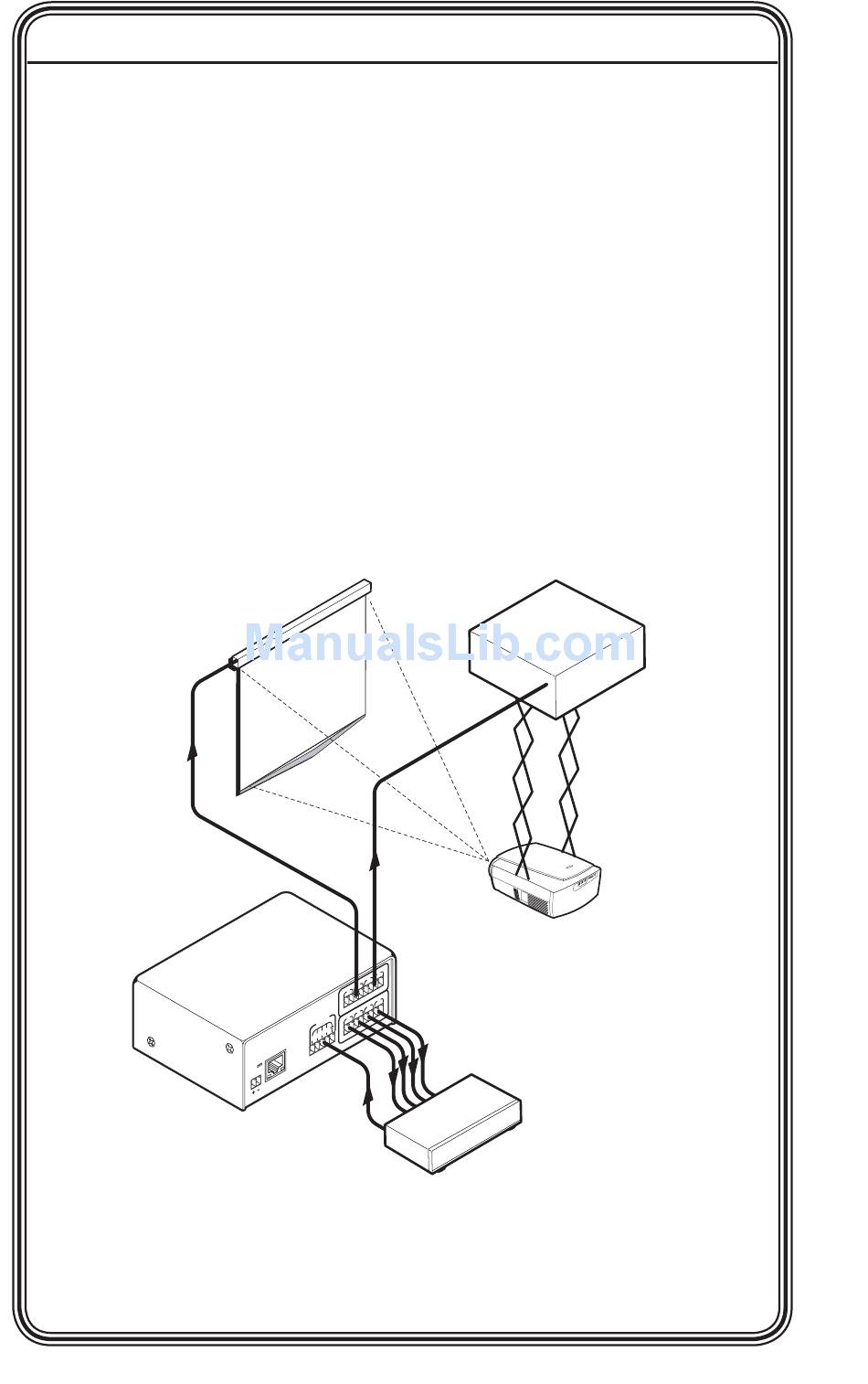

Screen Control
Extron
IPL T CR48
Ethernet Control
Interface
IPL T CR48 • Quick Start Guide
QS-2
Projector
Lift
Control
4
3
2
1
8
7
6
U T 5
I N P
4
3
2
1
N
L A
R
W E
P O
V
1 2
A
0 . 5
Lighting System
Projector
