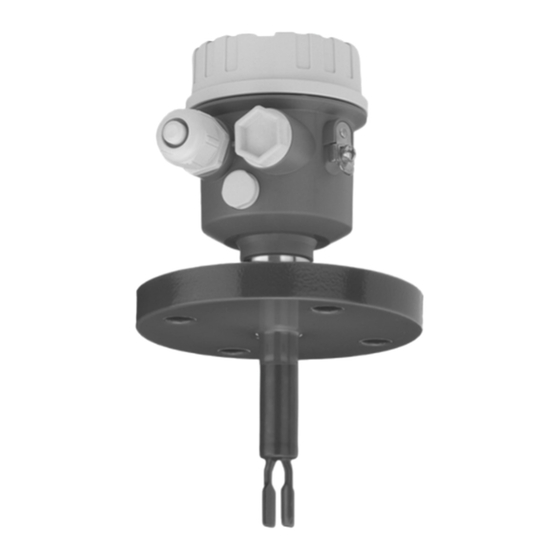

Pepperl+Fuchs LVL-M2C Instruction Manual
Vibration level switch atex, iexex ex ia iic ga/gb
Hide thumbs
Also See for LVL-M2C:
- Instruction manual (14 pages) ,
- Instruction manual (14 pages) ,
- Instruction manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Pepperl+Fuchs LVL-M2C
Summary of Contents for Pepperl+Fuchs LVL-M2C
- Page 1 LVL-M2C Vibration Level Switch ATEX, IEXEx Ex ia IIC Ga/Gb Instruction Manual ISO9001...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
Vibration Level Switch LVL-M2C SI00113O-G Vibration Level Switch Vibracon LVL-M2C Table of Contents Associated Documentation .......... -
Page 4: Associated Documentation
Vibration Level Switch LVL-M2C SI00113O-G Associated Documentation This document is an integral part of the following documents: • KA00162O (LVL-M2C) The documents which are supplied and correspond to the device type apply. Supplementary Documentation Electrical explosion protection literature: The literature can be found on the Internet at www.pepperl-fuchs.com. -
Page 5: Extended Order Code
Vibration Level Switch LVL-M2C SI00113O-G Extended Order Code The extended order code is indicated on the nameplate, which is affixed to the device in such a way that it is clearly visible. Additional information about the nameplate is provided in the associated manual. - Page 6 Vibration Level Switch LVL-M2C SI00113O-G Extended Order Code: Vibration Level Switch Note The following specifications reproduce an extract from the product structure and are used to assign: • This documentation to the device (using the extended order code on the nameplate).
-
Page 7: Safety Instructions: General
• Modifications to the device can affect the explosion protection and must be carried out by staff authorized to perform such work by Pepperl+Fuchs. • The probe is made of stainless steel or high corrosion-resistant alloy of thickness ≥ 1 mm. -
Page 8: Safety Instructions: Installation
Vibration Level Switch LVL-M2C SI00113O-G Safety Instructions: Installation Basic specification, feature Electrical connection, options SI, N1, N2 Figure 1 Zone 1 Tank; Zone 0 Electronic insert Housing Basic specification, feature Electrical connection, options SI, N1, N2: associated intrinsically safe power supply units... - Page 9 Vibration Level Switch LVL-M2C SI00113O-G Basic specification, feature Electrical connection, option PA Figure 2 Zone 1 Tank; Zone 0 Electronic insert Housing Permitted terminating resistor Ex ia IIC Certified associated apparatus Power supply Tank; Zone 1 Potential equalization • Connect the device using suitable cable and wire entries of protection type Intrinsic safety (Ex i).
- Page 10 Vibration Level Switch LVL-M2C SI00113O-G • Install the device to exclude any mechanical damage or friction during the application. Pay particular attention to flow conditions and tank fittings. • Support extension tube of the device if a dynamic load is expected.
-
Page 11: Temperature Tables
Vibration Level Switch LVL-M2C SI00113O-G Temperature Tables Description notes Note Unless otherwise indicated, the positions always refer to the basic specification. Zone 0, Zone 1 • 1st column: basic specification, feature Temperature spacer, gastight spacer • 2nd column: temperature classes T6 (85 °C) to T1 (450 °C) •... - Page 12 Vibration Level Switch LVL-M2C SI00113O-G Zone 0, Zone 1 Zone 1 Zone 0, Zone 1 Figure 5 Basic specification, feature Electrical connection, option PA, SI T5...T1 B, C T3...T1 only in connection with basic specification, feature Housing, option EX Table 3 Basic specification, feature Electrical connection, option N1, N2 T4...T1...
-
Page 13: Connection Data
Vibration Level Switch LVL-M2C SI00113O-G Connection Data Basic specification, feature Electrical connection, option SI, N1, N2 Associated intrinsically safe power supply unit with max. electrical specifications below the characteristic values of the electronic inserts Electrical connection Electronic insert Supply FEL55... - Page 14 Vibration Level Switch LVL-M2C SI00113O-G...
- Page 15 Vibration Lecel Switch LVL-M2C SI00113O-G...
- Page 16 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality SI00113O-G/98/A3/16.21 www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications Printed in Germany 115139 / DOCT-0560C...
