Betriebsanleitung
Instruction Manual
Manuel d'instructions

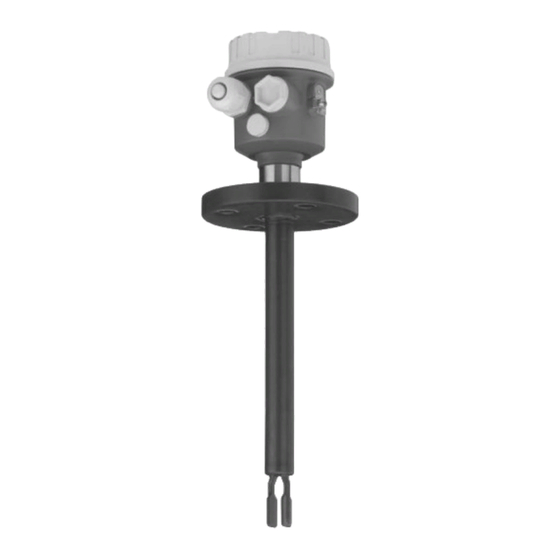

Vibration Limit Switch
Vibracon LVL-M*(H), LVL-M2C
ATEX:
II 1/2G Ex db IIC T6...T3 Ga/Gb
II 1/2G Ex db IIB T6...T3 Ga/Gb
IECEx:
Ex db IIC T6...T3 Ga/Gb
Ex db IIB T6...T3 Ga/Gb
SI00031O-I/98/A3/15.16
71354500
SI00031O-I
DE – Sicherheitshinweise für elektrische Betriebsmittel für
explosionsgefährdete Bereiche, siehe Seite 5
EN – Safety instructions for electrical apparatus for explosion-
hazardous areas, see page 13
FR – Conseils de sécurité pour matériels électriques destinés aux
zones explosibles, regardez à la page 21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pepperl+Fuchs Vibracon LVL-M H Series
Summary of Contents for Pepperl+Fuchs Vibracon LVL-M H Series
- Page 1 Betriebsanleitung Instruction Manual Manuel d'instructions Vibration Limit Switch Vibracon LVL-M*(H), LVL-M2C ATEX: II 1/2G Ex db IIC T6...T3 Ga/Gb II 1/2G Ex db IIB T6...T3 Ga/Gb IECEx: Ex db IIC T6...T3 Ga/Gb Ex db IIB T6...T3 Ga/Gb SI00031O-I DE – Sicherheitshinweise für elektrische Betriebsmittel für explosionsgefährdete Bereiche, siehe Seite 5 EN –...
- Page 2 Declaración UE de conformidad oświadcza, że produkt ten jest zgodny z obowiązującą Europejską Dyrektywą. Por la presente declaración y la inclusión de la marca CE, el fabricante Pepperl+Fuchs, Zastosowane wytyczne, normy oraz dukumenty podane są w deklaracji zgodności. declara que el producto cumple con las directivas europeas pertinentes. Las directivas, normas y documentos de aplicación se indican en la declaración de conformidad.
- Page 3 Signatures / Unterschriften Declaration of conformity / Konformitätserklärung Mannheim, 2018-09-27 We, Pepperl+Fuchs GmbH declare under our sole responsibility that the products listed below are in conformity with the listed European Direc- tives and standards. ppa. Lutz Liebers i.V. Martin Holdefer Die Pepperl+Fuchs GmbH erklärt hiermit in alleiniger Verantwortung,...
- Page 4 Vibracon LVL-M*(H), LVL-M2C SI00031O-I...
-
Page 5: Table Of Contents
Vibracon LVL-M*(H), LVL-M2C SI00031O-I Vibration Limit Switch Vibracon LVL-M*(H), LVL-M2C Table of Contents Associated documentation............Supplementary documentation . -
Page 6: Associated Documentation
• IEC 60079-0:2011 • IEC 60079-1:2014 • IEC 60079-26:2014 Manufacturer address Pepperl+Fuchs GmbH Lilienthalstraße 200, 68307 Mannheim, Germany Internet: www.pepperl-fuchs.com Other standards Among other things, the following standards shall be observed for proper installation: • IEC/EN 60079-14:2012: "Explosive atmospheres - Part 14: Electrical installations design, selection and erection"... - Page 7 Vibracon LVL-M*(H), LVL-M2C SI00031O-I Optional specifications The optional specifications describe additional features for the device (optional features). The number of positions depends on the number of features available. More detailed information about the device is provided in the following tables. These tables describe the individual positions and IDs in the extended order code which are relevant to hazardous locations.
-
Page 8: Safety Instructions: General
• Modifications to the device can affect the explosion protection and must be carried out by staff authorized to perform such work by Pepperl+Fuchs. • Only open the device under one of the following conditions: 17 minutes have elapsed since the power supply was switched off. -
Page 9: Safety Instructions: Ex D Joints
Vibracon LVL-M*(H), LVL-M2C SI00031O-I • Before operation: – Screw in the cover all the way. – Tighten the securing clamp on the cover. • In potentially explosive atmospheres: – Do not disconnect the electrical connection of the power supply circuit when energized. –... -
Page 10: Temperature Tables
Vibracon LVL-M*(H), LVL-M2C SI00031O-I Temperature tables Device types LVL-M1, LVL-M1H, LVL-M2, LVL-M2H Temperature class Process temperature T (process): Ambient temperature T (ambient): Sensor Electronics -50 °C to +75 °C -60 °C to +70 °C Covers with glass window: -50 °C to +70 °C -50 °C to +90 °C -60 °C to +70 °C -50 °C to +120 °C... -
Page 11: Connection Data
Vibracon LVL-M*(H), LVL-M2C SI00031O-I Connection data Basic specification, feature electrical connection Option Supply circuit Output for connection to a Fieldbus PROFIBUS PA U = 19 V AC to 253 V AC, 50/60 Hz; max. 0,96 VA max. 350 mA U = 10 V DC to 55 V DC; max. 0,83 W PNP-Transistor;... - Page 12 Vibracon LVL-M*(H), LVL-M2C SI00031O-I...
- Page 13 With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the "Elektrotechnik und Elektroindustrie (ZVEI) e.V." including the supplementary clause: "Erweiterter Eigentumsvorbehalt".
- Page 14 PROTECTING YOUR PROCESS Worldwide Headquarters Pepperl+Fuchs GmbH 71354500 68307 Mannheim · Germany Tel. +49 621 776-0 SI00031O-I/98/A3/15.16 E-mail: info@de.pepperl-fuchs.com FM7.2 For the Pepperl+Fuchs representative closest to you check www.pepperl-fuchs.com/pfcontact www.pepperl-fuchs.com DOCT-0557B 114163 Subject to modifications 10/2018 Copyright Pepperl+Fuchs • Printed in Germany...
