Reference Menu

Reference Settings

Source
SPG8000A User Manual
Use the Reference menu to view the current status of instrument settings such as the
signal reference source, the signals being output, and information about system faults
and alerts. Figure 14 shows the Reference menu including the Reference information,
GPS Information and the Genlock Timing information.

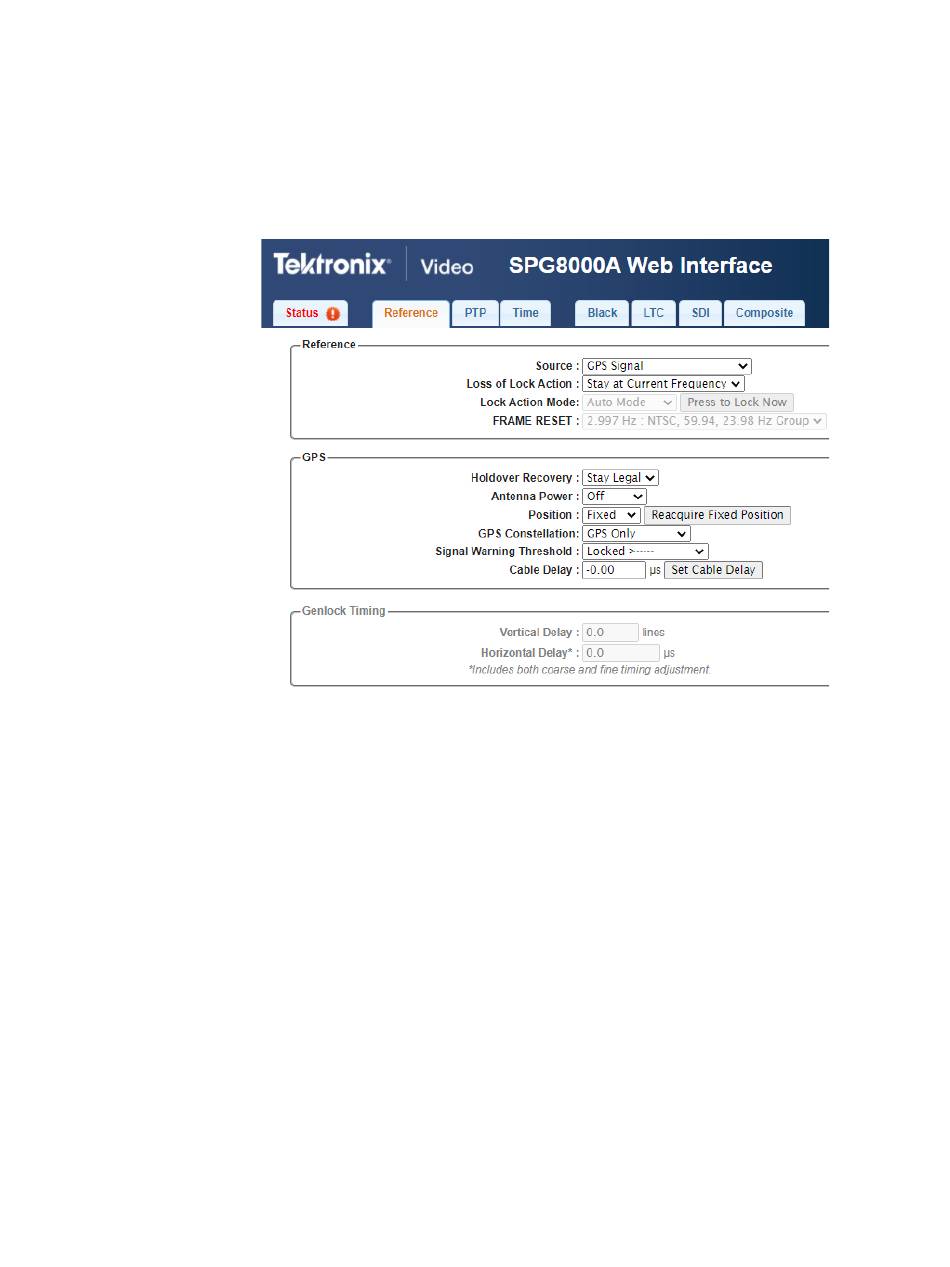

Figure 14: Reference tab menu
Select the drop-down menu and choose the reference source for the module timing.
These selections are available:
Internal: Uses the internal clock frequency setting as the timing reference.
•
GPS Signal: This menu item appears only when Option GPS is installed.
•
Uses the GPS and/or GLONASS signal input as the timing reference.
NTSC Burst: Uses the NTSC Black burst signal applied to the REF input
•
connector on the rear panel as the timing reference.
NTSC Burst with 10 Field ID: Uses the NTSC Black burst with 10 Field
•
ID signal applied to the REF input connector as the timing reference.
PAL Burst: Uses the PAL Black burst signal applied to the REF input
•
connector as the timing reference.
