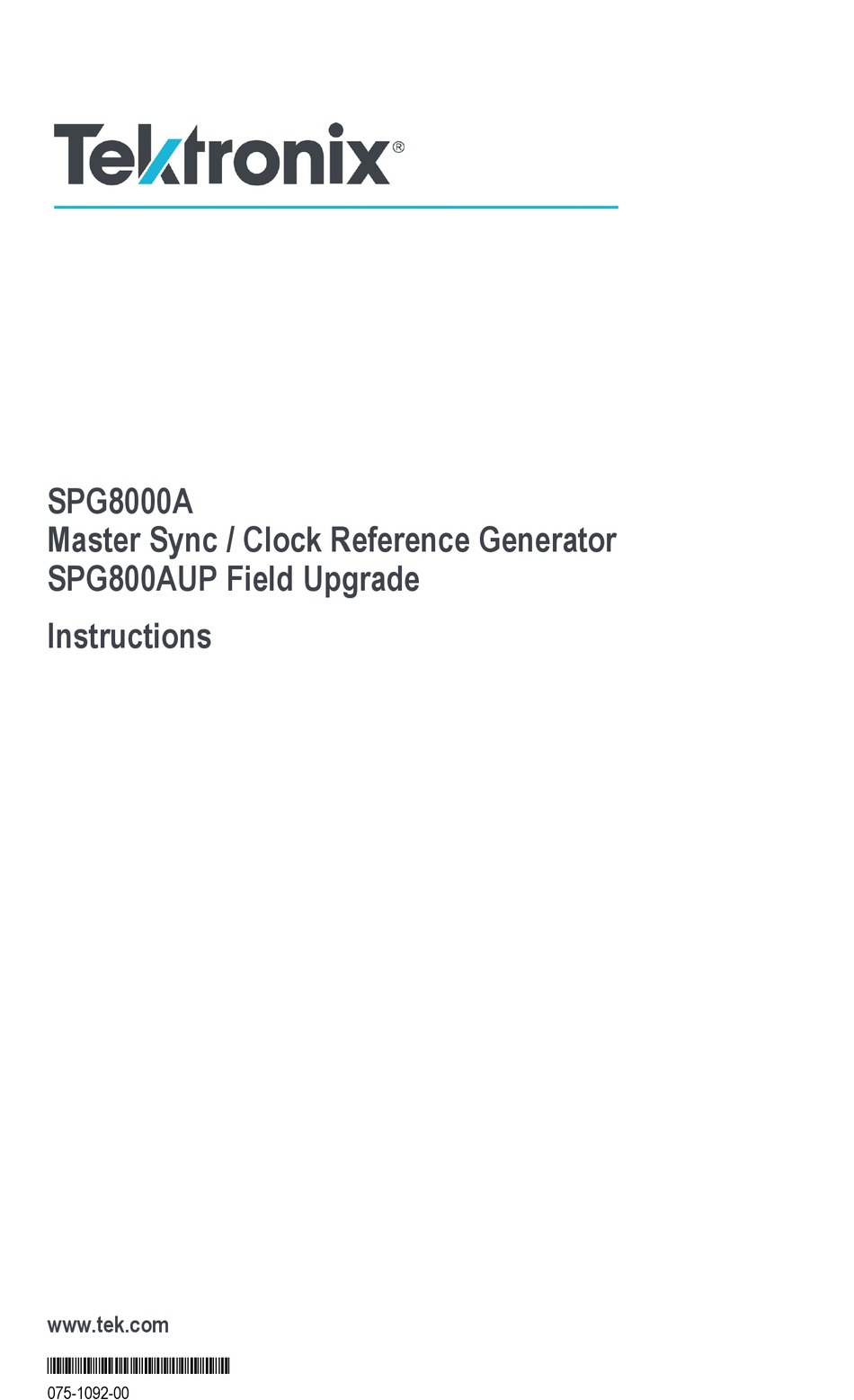

- Page 1 SPG8000A Master Sync / Clock Reference Generator SPG800AUP Field Upgrade Instructions www.tek.com *P075109200* 075-1092-00...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
Table of Contents Important safety information ..................General safety summary ..................Service safety summary ..................Terms in this manual ..................Symbols and terms on the product ................Introduction ......................Standard accessories................... Product documentation..................How to install and configure Option DPW ..............Required equipment ................... - Page 4 Table of Contents SPG800AUP Field Upgrade Instructions...
-
Page 5: Important Safety Information
Important safety information This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition. To safely perform service on this product, additional information is provided at the end of this section. - Page 6 Important safety information To avoid fire or personal Use proper power cord. Use only the power cord specified for this product and certified for the country of use. injury Ground the product. This product is grounded through the grounding conductor of the power cord.
-
Page 7: Service Safety Summary
Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries. Use only the Tektronix rackmount hardware specified for this product. Service safety summary The Service safety summary section contains additional information required to safely perform service on the product. -
Page 8: Terms In This Manual
Important safety information Terms in this manual These terms may appear in this manual: WARNING. Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property. -
Page 9: Introduction
firmware to the latest version. (See page 17.) Firmware upgrade Tektronix releases software and firmware updates for products to add new features and to fix product problems. You can find the latest firmware for your product at the Tektronix Web site (www.tek.com/downloads). -
Page 10: Standard Accessories
Standard accessories The following accessories are shipped with the field upgrade kit: SPG800AUP Field Upgrade Instructions (this document) Tektronix part number: 075-1092-XX Option DPW: Power Supply module with the power cord option you ordered (see list below) Option LX: Gigabit Ethernet optical SFP module (1310 nm, single-mode,... -
Page 11: Product Documentation
Introduction Product documentation The user documentation for your product is listed in the following table. Check the Tektronix Web site for the latest version of the documents (www.tek.com/downloads). Table 1: Product documentation Availability Document Tektronix Part Number Description Print Installation and Safety... -
Page 12: How To Install And Configure Option Dpw
How to install and configure Option DPW This section provides the following information on how to install the Option DPW backup Power Supply module into the SPG8000A generator: Guidelines for preventing component damage Instructions for installing or replacing the Power Supply module Instructions for how to configure the preferred (active) supply... -
Page 13: Install The Backup Power Supply Module
How to install and configure Option DPW Install the backup Power Supply module Perform the following steps to install the backup Power Supply module or to replace a failed supply: 1. If your instrument was shipped with only one Power Supply module, remove the blank power supply cover from the Power Supply 2 slot by pushing the retaining latch to the left, and then pulling the cover out of the instrument as shown in the following figure. - Page 14 How to install and configure Option DPW b. Pull out the handle located at the bottom of the supply. (See Figure 2.) c. While pushing the retaining latch to the left, use the handle to pull the Power Supply module out of the instrument. 3.
-
Page 15: Configure The Preferred (Active) Supply
For more information about temperature weighted hours, see the SPG8000A User Manual. a. Press the SYSTEM button to access the SYSTEM menu. - Page 16 How to install and configure Option DPW c. Press the up (▲) or down (▼) arrow button to select SYSTEM : DIAGNOSTICS : POWER SUPPLY 1. The second line of the display will list the number of hours the supply has been the active supply and the backup supply.
-
Page 17: How To Install An Sfp Module (Options Lx And Sx Only)
How to install an SFP module (Options LX and SX only) How to install an SFP module (Options LX and SX only) There are two optional, optical SFP modules available when Option PTP is installed in the instrument: Option LX: Gigabit Ethernet optical SFP module, 1310 nm, single-mode, LC connector Option SX: Gigabit Ethernet optical SFP module, 850 nm, multimode, LC connector... -
Page 18: Sfp Module Removal
How to install an SFP module (Options LX and SX only) SFP module removal To remove the SFP module, lift up on the latch and then pull the module out of the PTP connector as shown below. SFP module transportation The SFP module should be removed from the generator while the instrument is being transported. -
Page 19: How To Install Option Ptp
NOTE. This procedure uses the instrument front panel to enter the option key. You can also use the SPG8000A Web interface to remotely enter the option key. Refer to the SPG8000A User Manual for information about using the SPG8000A Web interface to enter the option key. - Page 20 How to install Option PTP 6. Enter the option key: a. Press the up (▲) or down (▼) arrow button to select SYSTEM : OPTIONS : KEY. The existing option key string is displayed. b. Press the ENTER button to enter the option key edit mode. The underscore character (_) appears under the first character of the option key.
-
Page 21: How To Upgrade The Instrument Firmware
Installed firmware version number 3. Verify the latest version of software at the Tektronix Web site: a. On a computer, use a Web browser to navigate to the following Tektronix Web site: http://www.tek.com/downloads b. On the Downloads Finder Web page, search by model number (such as SPG8000A) and filter by software and software type to locate the... - Page 22 How to upgrade the instrument firmware 4. If the latest firmware version at the Web site is the same as the version installed on your instrument, you do not need to upgrade the instrument firmware. 5. If the latest firmware version at the Web site is newer than the version on your instrument, download the latest firmware package to your computer.
-
Page 23: Backup User Files To A Usb Drive
(Mounted). 8. Press the ENTER button to safely unmount the USB device. You can now use the USB device to transfer the saved files to another SPG8000A generator or to restore user files after a firmware upgrade. SPG800AUP Field Upgrade Instructions... -
Page 24: Firmware Upgrade Overview
(See page 28, Troubleshoot the firmware upgrade.) If you have loaded the SPG8000A memory with a large number of test signals or frame picture files, you may not be able to upgrade the instrument firmware because the memory is too full. If you receive a memory error while attempting to upgrade the firmware, you need to delete some of the test signal or frame picture... -
Page 25: Usb Firmware Upgrade
How to upgrade the instrument firmware USB firmware upgrade Use the following steps to upgrade the instrument firmware using a USB memory device. 1. Insert a USB memory device into a USB port of the computer containing the latest instrument firmware. 2. - Page 26 How to upgrade the instrument firmware 10. Press the left (◄) or right (►) arrow button to select USB Upgrade, and then press the ENTER button. A confirmation message is displayed as shown below. NOTE. If the instrument displays the message ERROR: SpgUpgrd/firmware.pkg not found, make sure you have the correct directory path on the USB device and then restart this procedure at step 6.
-
Page 27: Network Firmware Upgrade
How to upgrade the instrument firmware 15. Remove the USB device after the upgrade is complete: CAUTION. To prevent a loss of data on the USB device, use the SYSTEM menu to unmount the USB device before removing it from the instrument. a. - Page 28 An example display is shown below. g. If no network connection is established, cycle power on the instrument and verify the network connection before attempting the firmware upgrade again. See the SPG8000A User Manual for details on configuring the network connections. SPG800AUP Field Upgrade Instructions...
- Page 29 How to upgrade the instrument firmware 4. Perform the firmware upgrade: a. On the PC, double-click the transfer.exe file to launch the transfer program. b. Type the IP address or DNS name of the instrument you are upgrading, and then press Enter. This starts the firmware upgrade process. Messages indicating the progress of the upgrade appear in the transfer program window and on the instrument display.
-
Page 30: Verify The Firmware Upgrade
How to upgrade the instrument firmware Verify the firmware upgrade 1. If your instrument had a failure during the firmware upgrade, proceed to Troubleshoot the firmware upgrade. (See page 28.) 2. After the instrument reboots at the end of the upgrade process, press the SYSTEM button to access the SYSTEM menu. -
Page 31: Restore User Files From A Usb Drive
files: 1. Insert a USB memory device containing the user files you want to install on the SPG8000A generator into the USB port on the front of the instrument. 2. Verify that the USB device is properly installed: a. -
Page 32: Troubleshoot The Firmware Upgrade
How to upgrade the instrument firmware Troubleshoot the firmware upgrade If a power failure occurs during the upgrade and the instrument has a blank screen when you reapply power, perform the following procedure. 1. Connect an Ethernet cable between the instrument and your computer or local Ethernet network. - Page 33 8. When the upgrade is complete, the instrument should reboot. If it does not, cycle the power. If you continue to experience an upgrade problem, contact Tektronix customer support or your local Tektronix representative for assistance. SPG800AUP Field Upgrade Instructions...
