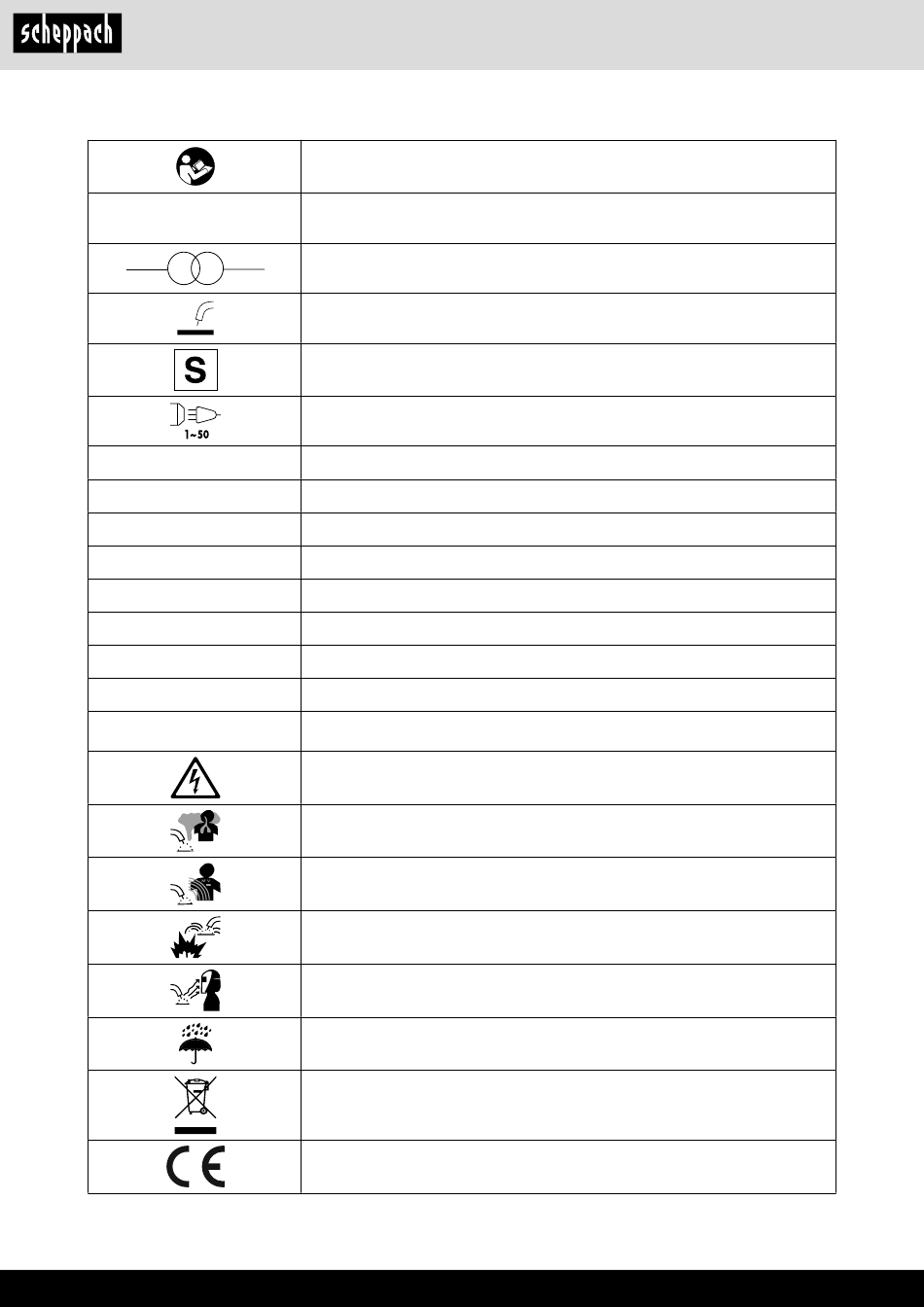

Explanation of the symbols on the equipment
EN 60974-1
1~ 1~
U
0
U
1
X
l
2
U
2
l
max
l
eff
IP21S
H
18 | GB
Caution - Read the operating instructions to reduce the risk of inquiry
European standard for welding sets for manual arc welding with limited on time.
Single-phase transformer
Symbol for self-shielding cored-wire welding
Suitable for welding with increased electric risk
Power input; phase number, as well as Alternating current symbol and rated value
of the frequency
Rated idling voltage
Mains voltage
On-load factor
Welding current
Welding voltage [V]
Rated maximum mains current
Effective value of the highest line current [A]
Protection type
Insulation class
Caution! Risk of electric shock!
Inhaling welding smoke can be hazardous to your health.
Electromagnetic fields can interfere with the functionality of pacemakers.
Welding sparks can cause an explosion or fire.
Arc rays can damage the eyes and injure the skin.
Do not use the device outdoors and never in rain!
Do not throw old equipment away with household waste.
The product complies with the applicable European directives.
