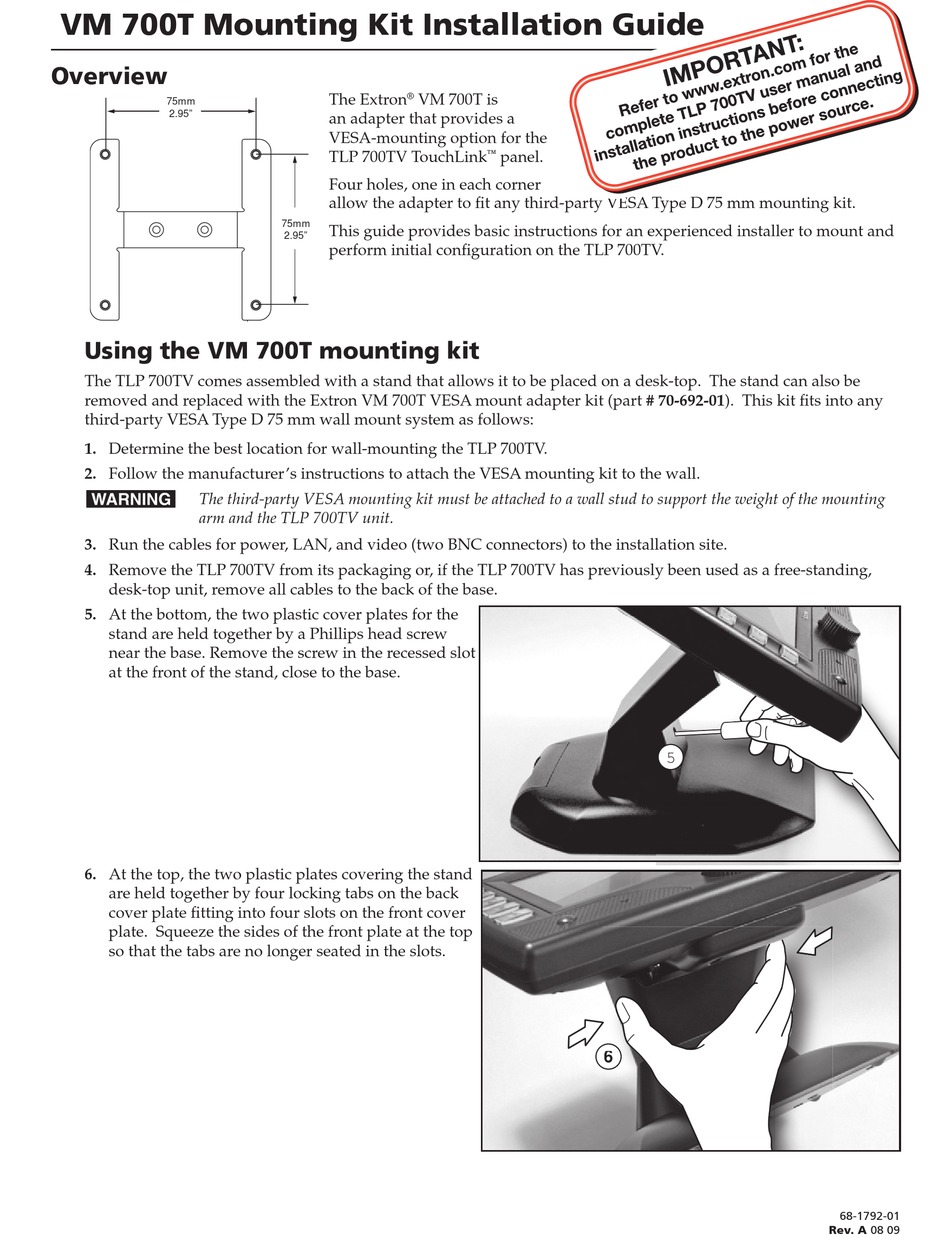

VM 700T Mounting Kit Installation Guide
Overview
75mm
2.95"
Using the VM 700T mounting kit
The TLP 700TV comes assembled with a stand that allows it to be placed on a desk‑top. The stand can also be
removed and replaced with the Extron VM 700T VESA mount adapter kit (part # 70‑692‑01). This kit fits into any
third‑party VESA Type D 75 mm wall mount system as follows:
1. Determine the best location for wall‑mounting the TLP 700TV.
2. Follow the manufacturer's instructions to attach the VESA mounting kit to the wall.
The third-party VESA mounting kit must be attached to a wall stud to support the weight of the mounting
W
arm and the TLP 700TV unit.
3. Run the cables for power, LAN, and video (two BNC connectors) to the installation site.
4. Remove the TLP 700TV from its packaging or, if the TLP 700TV has previously been used as a free‑standing,
desk‑top unit, remove all cables to the back of the base.
5. At the bottom, the two plastic cover plates for the
stand are held together by a Phillips head screw
near the base. Remove the screw in the recessed slot
at the front of the stand, close to the base.
6. At the top, the two plastic plates covering the stand
are held together by four locking tabs on the back
cover plate fitting into four slots on the front cover
plate. Squeeze the sides of the front plate at the top
so that the tabs are no longer seated in the slots.
The Extron
VM 700T is
®
an adapter that provides a
VESA‑mounting option for the
TLP 700TV TouchLink
Four holes, one in each corner
allow the adapter to fit any third‑party VESA Type D 75 mm mounting kit.
75mm
This guide provides basic instructions for an experienced installer to mount and
2.95"
perform initial configuration on the TLP 700TV.
panel.
™
6 6
5
68-1792-01
Rev. A 08 09
