Instruction Manual
T1/1+1ENP8dB-1
T1/1+1ENP12dB-1
Dear Customer,
congratulations on the purchase of the EMP-Centauri product. Before its
installation and putting into operation, read carefully the entire operation manual.
Keep the purchase and rework (if any) records for future need.

1) Field of Application, Warranty

The product is designed for the distribution of terrestrial (including cable) TV and
radio signals.
The manufacturer provides for E.LITE CLASS products extended 4 (four) years
warranty from the date of purchase, see details in EMP-Centauri's General trade
conditions, published at manufacturer's website www.emp-centauri.cz.
It is prohibited to dismantle the product and make any interventions in it. Repairs
or any interventions in the product may be performed only by EMP-Centauri
company, or other companies authorized by EMP-Centauri.
2) Technical Specifications

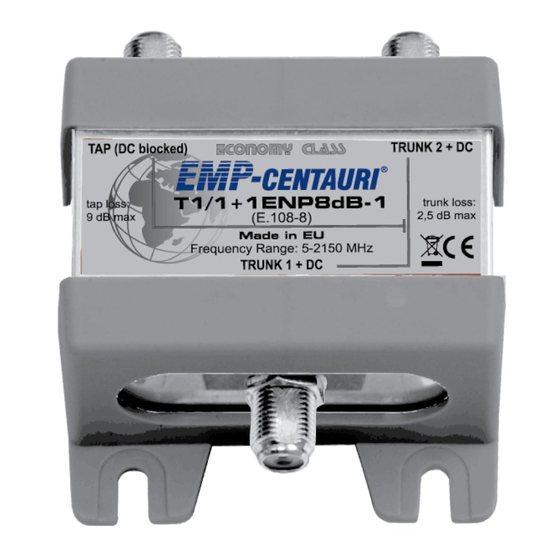

The product is wideband passive tap that can be used for distributing signals in
terrestrial and/or satellite frequency bands. Level balancing of whole system can
be achieved by using different tap loss versions. We therefore offer this product
with tap loss stepped from 9 to 20 dB (part types T1/1+1ENP8dB-1,
T1/1+1ENP12dB-1, T1/1+1ENP16dB-1, T1/1+1ENP20dB-1).
Trunk path transmits DC voltage, 22 kHz and DiSEqC commands. Terrestrial port
is DC isolated.
Specification for T1/1+1ENP... ...8dB-1
Inputs / Outputs
Frequency Range
Tap loss (max)
Trunk loss (max)
Dimensions (w,d,h)
Temperature Range
T1/1+1ENP16dB-1
T1/1+1ENP20dB-1
...12dB-1 ...16dB-1 ...20dB-1
1 / 2 (trunk + tap)
5–2150 MHz
9 dB 12 dB
2.5 dB
5.4 x 6.0 x 3.2 cm
−25 °C – +60 °C
1 of 4
16 dB 20 dB
