P
roduct Overview

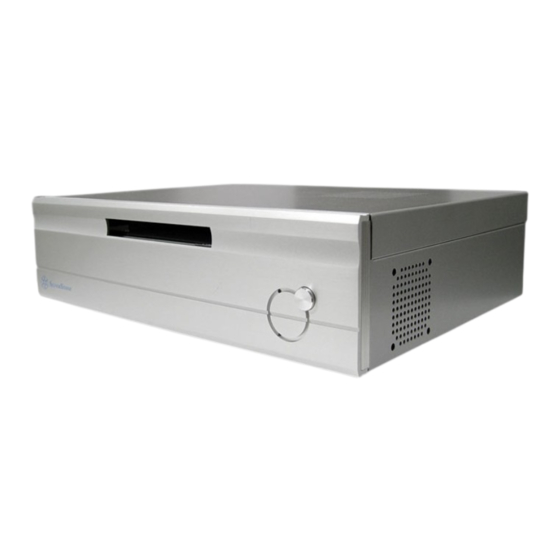

SST-LC02
02

Specification:

Drive Bay: Slim optical drive x 1, 3.5" x 1 ( Hidden )
Slot : 2
M/B Type: Standard ATX and Micro ATX
Color: Silver & Black
Power Supply: Flex 220w Single with PFC
USB Port: USB x 2, IEEE1394 x 1, Audio x 1, MIC x 1
Add on card: PCI-E* or PCI riser card *(RC02 PCI-E riser card is sold separately)*
Weight: 2.5 kg
Dimension: 295 mm ( D ) x 382 mm ( W ) x 100mm ( H )
Cooling System: Right - 60mm fan x 1, left - 60mm fan slot x 1

Disassemble Chart

TOP COVER
SLIM
3.5 BAY
HDD TRAY
PCI-E* or PCI riser card
*(RC02 PCI-E riser card is sold separately)*
SLOT*2
IEEE 1394+USB+MIC+SPK
All manuals and user guides at all-guides.com
optical drive
STANDARD ATX MB
220W PSU WITH PFC
POWER SW
FRONT PANEL
June
, 2006
NO:G11400246
