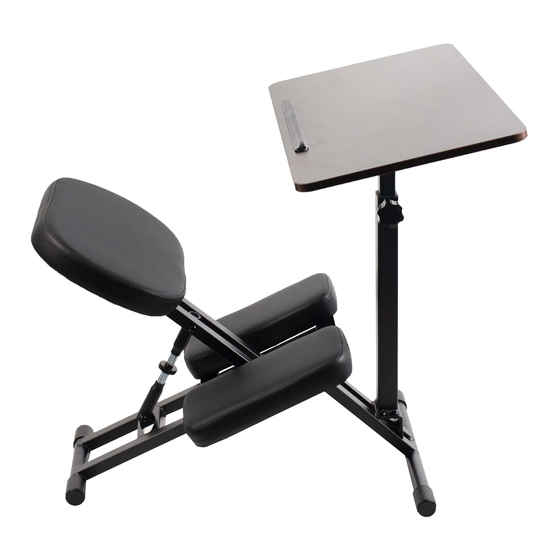

Black / Dark Wood Kids Kneeling Chair and Desk
Instruction Manual
SKU: DESK-KN02D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-kn02d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-KN02D
Summary of Contents for Vivo DESK-KN02D
- Page 1 Black / Dark Wood Kids Kneeling Chair and Desk Instruction Manual SKU: DESK-KN02D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-kn02d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 Assemble the Adjustable Support (B) to top of mounting hole of Upper Frame (A) using Medium Sleeve Nut (S-C) and M6x12 Screws (S-D) with M6 Washers (S-E). Tighten using 5mm Allen Wrench (T-A). STEP 2 Mount the other side of the Adjustable Support (B) to the lower mounting hole of Upper Frame (A) using Short Sleeve Nut (S-A) and M6x12 Screws (S-D) with M6 Washers (S-E).
- Page 4 STEP 3 Assemble Lower Frame (C) into Upper Frame (A) using Long Sleeve Nut (S-B) and M6x12 Screws (S-D) with M6 Washers (S-E) in the rear mounting holes of Upper Frame (A). Insert M8x35 Screws (S-F) with M8 Washers (S-G) into front mounting holes of Upper Frame (A). Tighten using 5mm Allen Wrenches (T-A).
- Page 5 STEP 5 Slide Desktop Tilt Brackets (H) onto either end of Desk Support (F) and mount assembly to Desktop (G) using M5x14 Screws (S-I) and Philips end of 5mm Allen Wrench (T-A).
- Page 6 STEP 6 Mount Desk Support (F) to Lower Frame (C) using M6x12 Screws (S-D) and tighten using 5mm Allen Wrenches (T-A).
- Page 7 STEP 7 Loosen the knob located on the side of Desk Support (F) to adjust the height of Desktop (G) and loosen the knob located underneath Desk Support (F) to adjust the tilt. Set to desired position and retighten knobs. ±30°...
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
