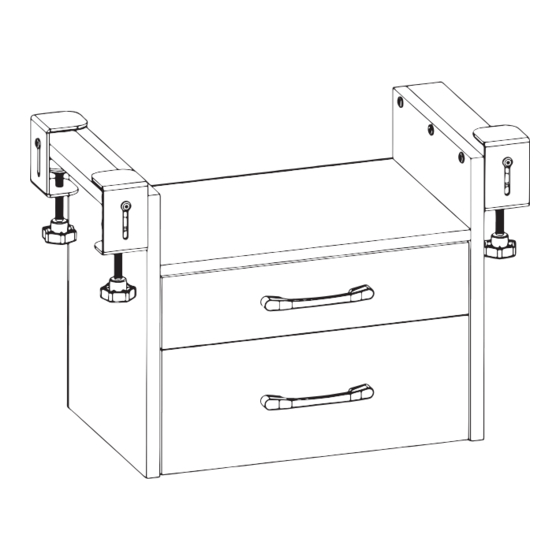

Corner clamp-on desk drawer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Corner Clamp-On
Desk Drawer
SKU: DESK-DR3C
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/desk-dr3c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-DR3C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo DESK-DR3C

Summary of Contents for Vivo DESK-DR3C

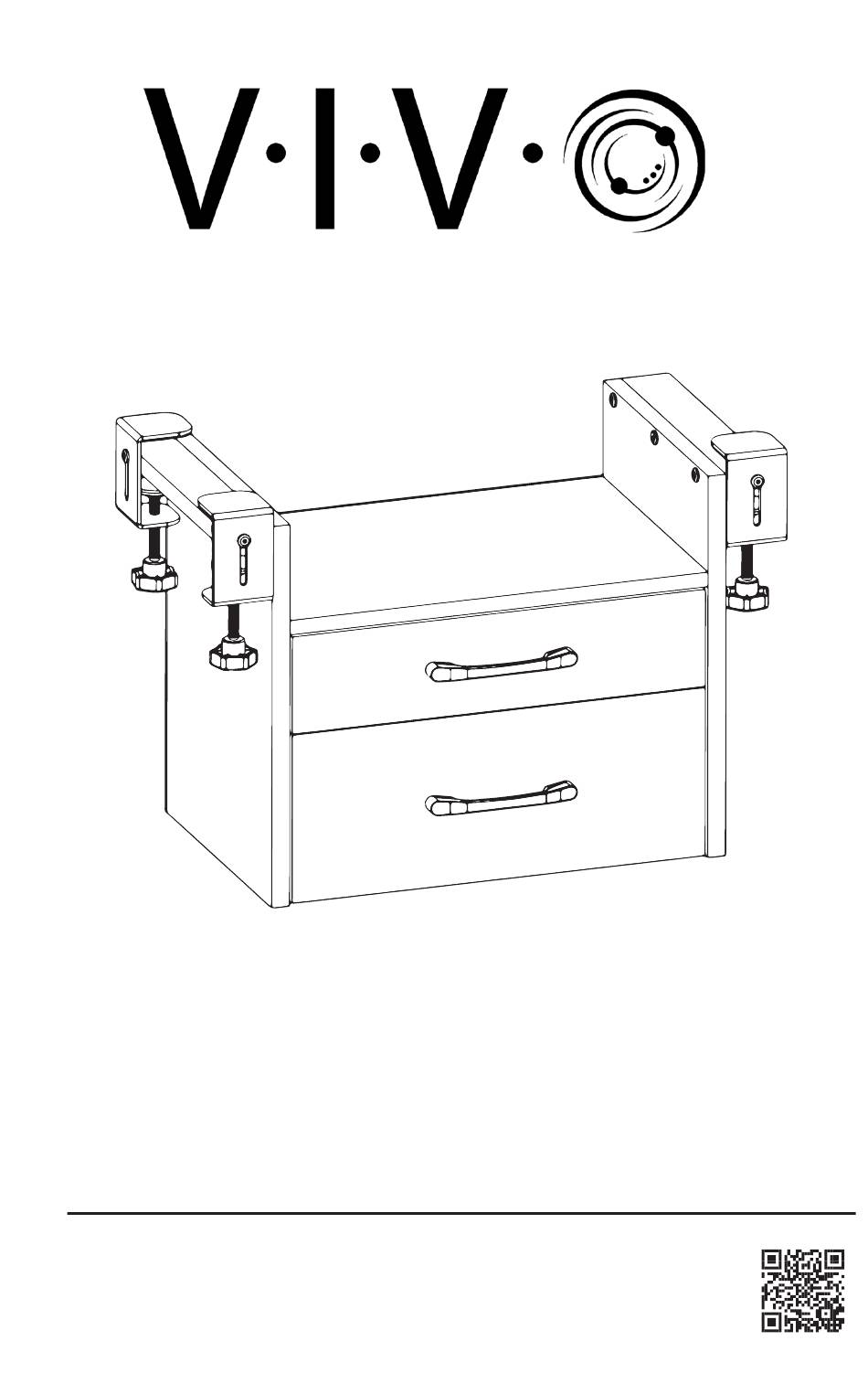

  • Page 1 Corner Clamp-On Desk Drawer SKU: DESK-DR3C Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-dr3c...

  • Page 2: Tools Needed

    If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

  • Page 3: Package Contents

    Package Contents Top Drawer A (x1) B (x1) C (x1) E (x1) Top Drawer Front Left Top Drawer Right Top Drawer Top Drawer Back Side Side Bottom Drawer F (x1) G (x1) H (x1) I (x1) Bottom Drawer Bottom Drawer Left Bottom Drawer Bottom Drawer Back Front...

  • Page 4: Assembly Steps

    ASSEMBLY STEPS STEP 1 Slide open Drawer Slides (K), pull the lever on Internal Slides (K2), and slide out Internal Drawer Slides (K2) from External Slides (K1).
  • Page 5 STEP 2 Install Handle (J) to Top Drawer Front (A) using M4x16mm Screws (S-A) and a Phillips screwdriver. S-A (x2) STEP 3 Attach Cam Lock Screws (S-B) to Top Drawer Front (A) using a Phillips screwdriver. S-B (x4)
  • Page 6 STEP 4 Slide Left and Right Top Drawer Sides (B,C) over Cam Lock Screws (S-B) on Top Drawer Front (A). Side piece Channels should Drawer Front should be oriented with the Small Gap at the top. be on the bottom and face in towards each other.
  • Page 7 STEP 5 Insert Cam Lock Nuts (S-C) into Left and Right Top Drawer Sides (B,C) with the arrow and the opening facing towards the screw head. Using a Phillips screwdriver, turn Cam Lock Nuts (S-C) clockwise half a turn to tighten. S-C (x4) STEP 6 Slide Drawer Bottom (D) into the channels on Left and Right Top Drawer Sides (B,C).
  • Page 8 CONT’D Install Top Drawer Back (E) onto Left and Right Top Drawer Sides (B,C) using ST3.9x25mm Screws (S-D) and a Phillips screwdriver. S-D (x4) STEP 7 Attach Internal Drawer Slides (K2) to Left and Right Top Drawer Sides (B,C) using ST3.5x9.5mm Screws (S-E) and a Phillips screwdriver.
  • Page 9 STEP 8 Install Handle (J) to Bottom Drawer Front (F) using M4x16mm Screws (S-A) and a Phillips screwdriver. S-A (x2) STEP 9 Attach Cam Lock Screws (S-B) to Bottom Drawer Front (F) using a Phillips screwdriver. S-B (x4)
  • Page 10 STEP 10 Slide Left and Right Bottom Drawer Sides (G,H) over Cam Lock Screws (S-B) on Bottom Drawer Front (F). Make sure the channels are towards the bottom. Side piece Channels should Drawer Front should be oriented with the be on the bottom and face in Large Gap at the top.
  • Page 11 STEP 11 Insert Cam Lock Nuts (S-C) into Left and Right Bottom Drawer Sides (G,H) with the arrow and the opening facing towards the screw head. Using a Phillips screwdriver, turn Cam Lock Nuts (S-C) clockwise half a turn to tighten. S-C (x4) STEP 12 Slide Drawer Bottom (D) into the channels on Bottom Drawer Left and Right (G,H).
  • Page 12 CONT’D Install Bottom Drawer Back (I) onto Bottom Drawer Left and Right (G,H) using ST3.9x25mm Screws (S-D) and a Phillips screwdriver. S-D (x4) STEP 13 Attach Internal Drawer Slides (K2) to Bottom Drawer Left and Right (G,H) using ST3.5x9.5mm Screws (S-E) and a Phillips screwdriver. S-E (x4) Tabs Ensure the Tabs on Internal Drawer Slides (K2)
  • Page 13 STEP 14 Secure Drawer Slides (K) to Left Housing Side (L) using ST3.5x9.5 Screws (S-E) and a Phillips screwdriver. Attach Cam Lock Screws (S-B) to Housing Left (L) using a Phillips screwdriver. Attach Clamping Brace (P) to Left Housing Side (L) using M5x25mm Screws (S-G) using 3mm Allen Wrench (T-A).
  • Page 14 CONT’D Secure Drawers Slides (K) to Right Housing side (M) using ST3.5x9.5 Screws (S-E) and a Phillips screwdriver. Attach Cam Lock Screws (S-B) to Housing Right (M) using a Phillips screwdriver. Attach Clamping Brace (P) to Right Hosing Side (M) using M5x25mm Screws (S-G) using 3mm Allen Wrench (T-A).
  • Page 15 STEP 15 Slide Shelf (N) over Cam Lock Screws (S-B) on Right and Left Housing Side pieces (L,M). Insert Cam Lock Nuts (S-C) into Shelf (N) with the arrow and the opening facing towards the screw head. Using a Phillips screwdriver, turn Cam Lock Nuts (S-C) clockwise half a turn to tighten. S-B (x4) S-C (x4)
  • Page 16 STEP 16 Attach Housing Back (O) to Right and Left Housing Side (L,M) using ST3.9x25mm Screws (S-D) and a Phillips screwdriver. S-D (x6) STEP 17 Slide drawers onto Drawer Slides (K).
  • Page 17 STEP 18 Depending on your desired installation location, install Clamps (Q) to Clamping Braces (P) using M5x12mm Screws (S-F) and 3mm Allen Wrench (T-A). Adjust the clamp so there is a gap slightly larger than your desktop thickness. Leave the screws tight enough to hold the clamp position, do not over tighten.
  • Page 18 CONT’D Slide the Drawer onto the desktop and tighten Clamps (Q).
  • Page 19 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...

  • Page 20: Last Updated

    LAST UPDATED: 12/26/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
