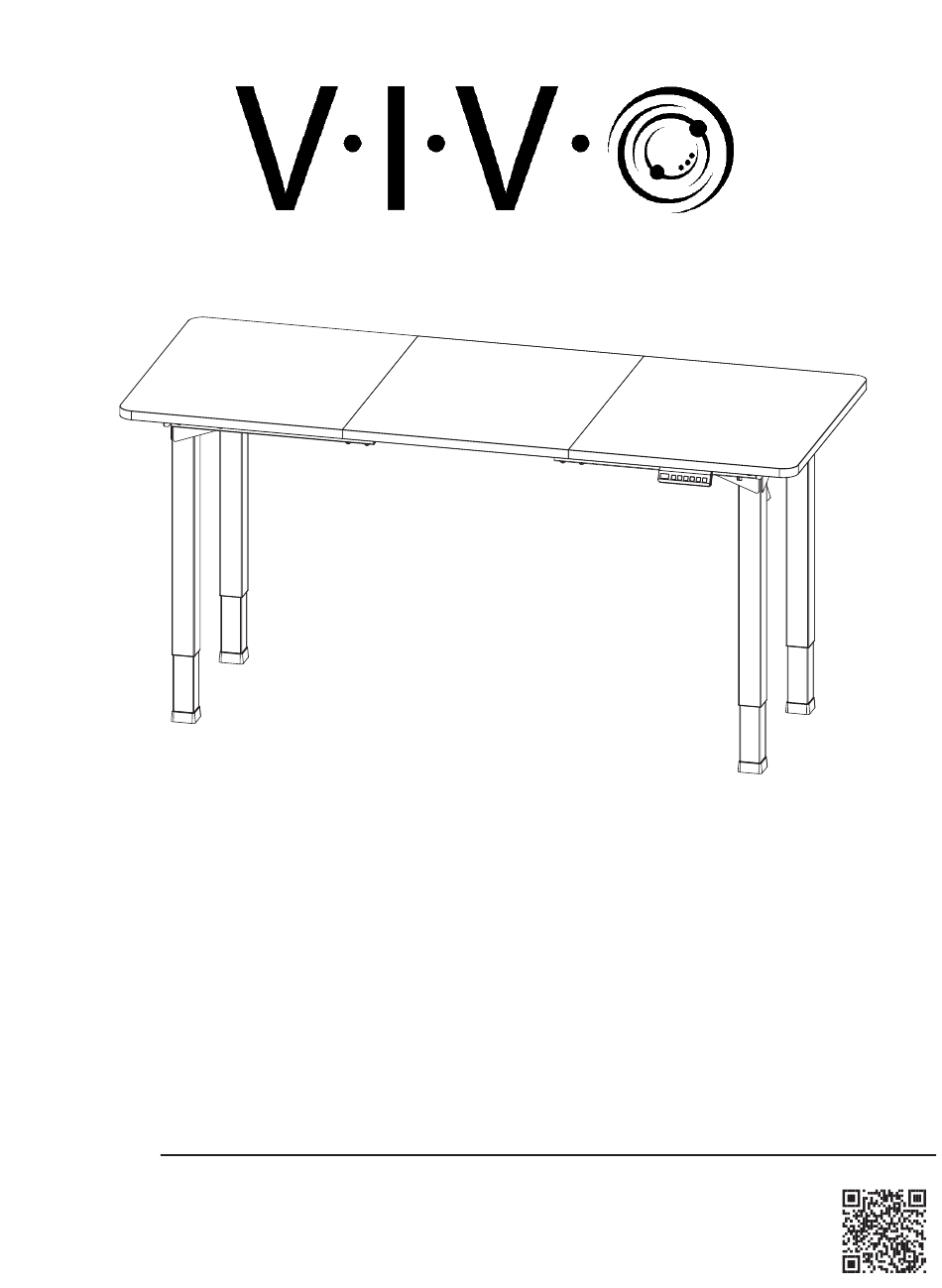

  • Page 1 72” x 30” Dual Motor Electric 4-Leg Desk SKU: DESK-KIT-E4BB/WW DESKTOP: FRAME: DESK-TOPE4B-72 DESK-E4B DESK-TOPE4W-72 DESK-E4W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-kit-e4bb...
  • Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
  • Page 3: Product Warranty

    If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts.
  • Page 4: Package Contents

    Package Contents A (x2) B (x1) C (x2) D (x2) Outer Desktop Middle Desktop Motorized Leg Non-Motorized Panel Panel E (x2) F (x2) G (x2) H (x2) Left Crossbar Right Crossbar Crossbar Side Bracket L (x1) M (x1) N (x2) I (x2) Power Adapter Conrol Panel...
  • Page 5 ASSEMBLY STEPS STEP 1 Attach Right Crossbars (F) to Motorized Legs (C) and Left Crossbars (E) to Non-Motorized Legs (D) using M6x11mm Screws (S-A) tightening with 5mm Allen Wrench (T-B). S-A (x4)
  • Page 6 STEP 2 Attach Motorized Legs (C) to Non-Motorized Legs (D) using Side Brackets (H), M6x11mm Screws (S-A), and 5mm Allen Wrench (T-B). S-A (x4)
  • Page 7 STEP 3 Loosen the coupling nut on Sync Rods (I) and insert the hex shaft end into the Non-Motorized Legs (D). Ensure all of the legs are at the same height. If they are not, rotate the sync rod clockwise to raise and counterclockwise to lower the legs. Extend the Sync Rods (I) onto Motorized Legs (C).
  • Page 8 STEP 4 Slide Crossbars (G) into the Left and Right Crossbars (E,F) making sure the slots on Crossbar (G) are facing inwards towards the motors on Motorized Legs (C). Max extension callouts have been included on Crossbars (G). Be sure the not extend the frame past the markings when installing the desktop.
  • Page 9 STEP 5 Layout the Outer and Middle Desktop Panels (A,B) as shown with the pilot holes facing up. Press Wooden Dowels (S-C) into the sides of Middle Desktop Panel (B) and then slide the Outer Desktop Panels (A) over the Wooden Dowels (S-C) closing the gap. Secure the Panels together using Connecting Plates (P) and ST5x15mm Screws (S-B) tightening with a Phillips screwdriver or drill.
  • Page 10 STEP 6 Secure the Power Adapter (L) and Control Panel (M) to the desktop using ST5x15mm Screws (S-B) tightening with a Phillips screwdriver or drill. S-B (x4)
  • Page 11 STEP 7 Connect the Extension Cables (N) to the Motorized Leg (C) furthest from the Control Panel (M). Connect the motor cable from the closest leg, Extension Cable (N), and cable from Power Adapter (L) to the Control Panel (M). Connect Power Cable (O) to the Power Adapter (L). Remove the protective film from Cable Clips (Q) and apply them to the desktop to aid in organizing cables.
  • Page 12: Troubleshooting

    Using Controller Height Adjustment Press and hold either the buttons to raise or lower the desk. Saving Height Settings To save a preferred height setting for easy recall, press the “S” button until the display flashes. Then press any of the numbered buttons and the current height will be programmed to that button.
  • Page 13 Advanced Settings Long press the button, “S--”shows and flashes. Press again and the display shows “Un”. Chang isplayed Press to select. Press to switch between“ ”(metric) or “ ” (imperial). Unit( Press to save your choice. Long press the button, “S--”shows and flashes. Press again and the display shows “Un”.
  • Page 14 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...
  • Page 15: Need Assistance

    Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <...
  • Page 16 LAST UPDATED: 01/18/24 REV1 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
