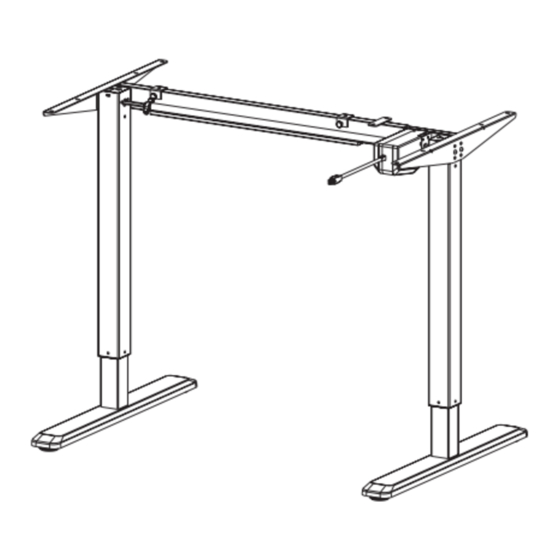

Black Electric Single Motor Desk Frame
Instruction Manual
SKU: DESK-V102E
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v102e
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-KIT-2EW6E
Summary of Contents for Vivo DESK-KIT-2EW6E
- Page 1 Black Electric Single Motor Desk Frame Instruction Manual SKU: DESK-V102E Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v102e GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Tools Needed
TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 176lbs Failure to do so may result in serious injury. (79.8 kg) Drill ASSEMBLY STEPS STEP 1 Loosen the two set screws on the telescopic crossbar (A) using the Allen Wrench (S-G). Adjust the crossbar length to suit the desktop. - Page 4 STEP 3 Attach the side brackets (E) to both ends of the frame using four M6x12mm bolts (S-A). Tighten with the Allen Wrench. STEP 4 Place frame upside down on desktop and drill pilot holes for screws. Use a 3/32” or 3mm bit, and drill holes to a depth of 3/8”...
- Page 5 STEP 6 Position the frame upright. Loosen the knobs on the sync rod (B) and extend the hex shaft. Insert hex shaft into the leg (I), making sure the metal retaining ring makes contact with the leg. While holding the hex shaft with one hand, extend sync rod onto the spline shaft of the motorized leg.
- Page 6 STEP 10 If you are using a VIVO desktop, Refer to the manual that came with your desktop. If you are not using a VIVO desktop, place the desktop on the frame, and secure the desktop using the ⅞” screws (S-B).
- Page 7 STEP 11 Attach the controller to the underside of the desktop using 3/4"screws (S-C) as shown. Once controller is installed, cable clips (S-E) can be attached to the desk for cable management. Refer to Controller User Guide for operational instructions. STEP 12 If necessary, adjust foot pads to level desk.
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
