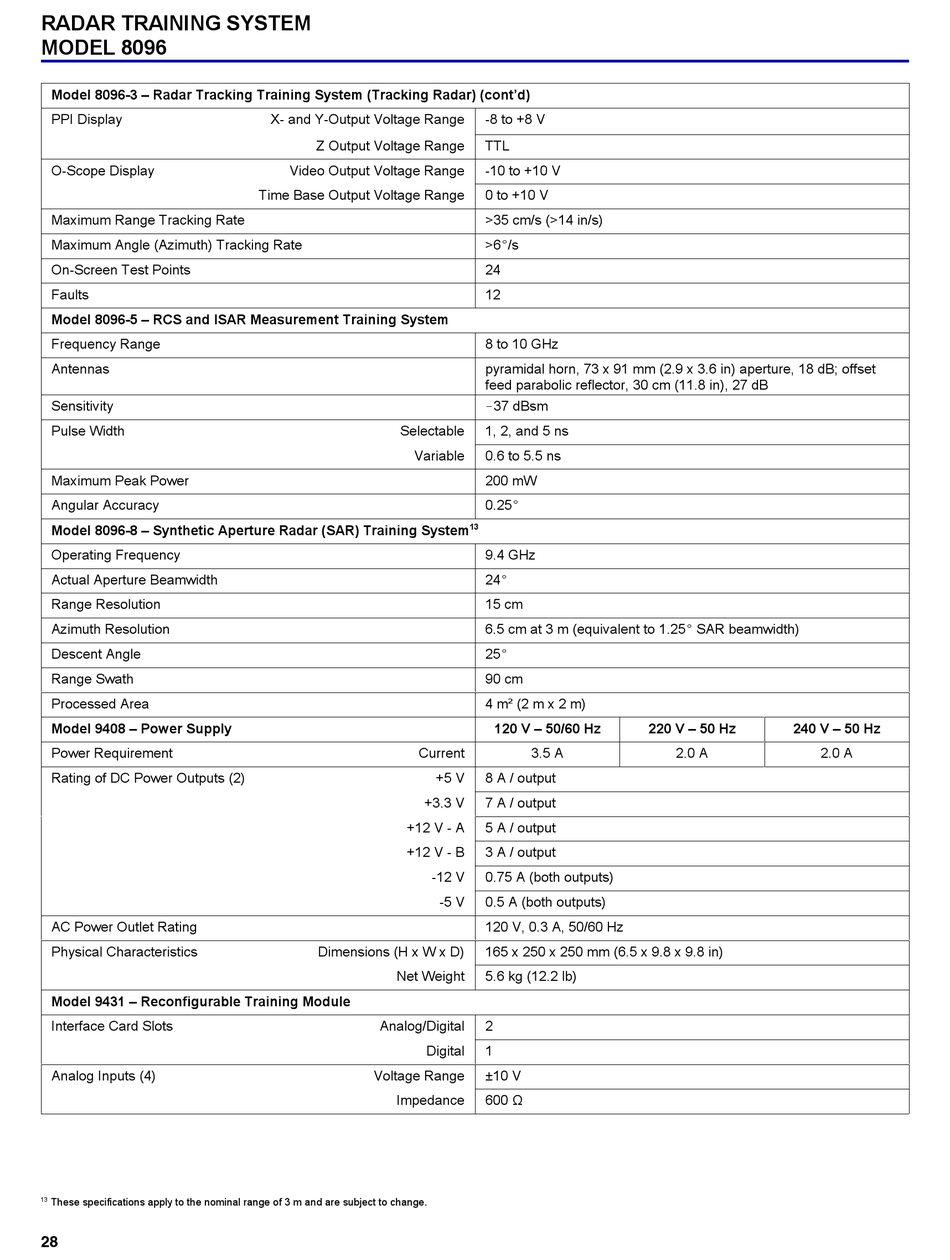

Lab-Volt 8096 Manual page 28

RADAR TRAINING SYSTEM
MODEL 8096
Model 8096-3 – Radar Tracking Training System (Tracking Radar) (cont'd)
PPI Display
O-Scope Display
Maximum Range Tracking Rate
Maximum Angle (Azimuth) Tracking Rate
On-Screen Test Points
Faults
Model 8096-5 – RCS and ISAR Measurement Training System
Frequency Range
Antennas
Sensitivity
Pulse Width
Maximum Peak Power
Angular Accuracy
Model 8096-8 – Synthetic Aperture Radar (SAR) Training System
Operating Frequency
Actual Aperture Beamwidth
Range Resolution
Azimuth Resolution
Descent Angle
Range Swath
Processed Area
Model 9408 – Power Supply
Power Requirement
Rating of DC Power Outputs (2)
AC Power Outlet Rating
Physical Characteristics
Model 9431 – Reconfigurable Training Module
Interface Card Slots
Analog Inputs (4)
13 These specifications apply to the nominal range of 3 m and are subject to change.
28
X- and Y-Output Voltage Range
Z Output Voltage Range
Video Output Voltage Range
Time Base Output Voltage Range
Selectable
Variable
Current
+5 V
+3.3 V
+12 V - A
+12 V - B
-12 V
Dimensions (H x W x D)
Net Weight
Analog/Digital
Digital
Voltage Range
Impedance
-8 to +8 V
TTL
-10 to +10 V
0 to +10 V
>35 cm/s (>14 in/s)
>6E/s
24
12
8 to 10 GHz
pyramidal horn, 73 x 91 mm (2.9 x 3.6 in) aperture, 18 dB; offset
feed parabolic reflector, 30 cm (11.8 in), 27 dB
!37 dBsm
1, 2, and 5 ns
0.6 to 5.5 ns
200 mW
0.25E
13
9.4 GHz
24E
15 cm
6.5 cm at 3 m (equivalent to 1.25E SAR beamwidth)
25E
90 cm
4 m² (2 m x 2 m)
120 V – 50/60 Hz
3.5 A
8 A / output
7 A / output
5 A / output
3 A / output
0.75 A (both outputs)
-5 V 0.5 A (both outputs)
120 V, 0.3 A, 50/60 Hz
165 x 250 x 250 mm (6.5 x 9.8 x 9.8 in)
5.6 kg (12.2 lb)
2
1
±10 V
600 Ω
220 V – 50 Hz 240 V – 50 Hz
2.0 A 2.0 A
