RADAR TRAINING SYSTEM
MODEL 8096
C Surveillance processor for Track-While-Scan (TWS)
operation
C Computer-based (i.e., on-screen) control of the radar's
processing and display functions
C Computer-based control of the clutter generation for
the study of the MTI processor functions
C High repeatability of hands-on manipulations ensured
through computer-based control of the clutter
generation and radar's key parameters
C On-screen block diagrams of the pulsed radar and
radar processor/display subsystem with hardware-
related (real signal) test points
C Computer-based oscilloscope
observation and analysis of test point signals
C Powerful computer-based data monitoring system for
easy study of the first stage in the MTD processing
(FFT Doppler filtering, thresholding, and alarm
generation)
C Split range-gate tracker
C Leading-edge range tracker
C Lobe-switching angle tracker
C On-screen, O-scope display
C O-scope display output
C Built-in Electronic Counter-Counter Measures (ECCM)
C Active jamming pod to electronically attack the radar
tracking system
C Noise and deception jamming capabilities
C Chaff cloud simulation
C Radar cross-section (RCS) measurement
C Inverse synthetic-aperture radar (ISAR) imagery
capability
C Phased array antenna
C Operation as a Synthetic Aperture Radar (SAR)
C High-resolution SAR image capability
C Comprehensive courseware
C System level training
C Modular construction
C Fault-insertion
capability
troubleshooting
C Multiple test points
C Protection against incorrect connections
The Basic Radar Training System, Model 8096-1, is
a complete set of hardware, courseware, and all
necessary accessories
interconnecting cables that allows the principles of pulse,
CW Doppler, and FM-CW radar systems to be studied.
1
1 All student manuals, instructor guides, and user guides of the Radar Training System are optionally available as PDF files on a single CD-ROM. See Optional Equipment list in this datasheet
for the ordering number of this CD-ROM.
2
for time-domain
for the teaching
such as targets and
An oscilloscope is required for target echo visualization
on an A-scope display as well as time-domain
observation of signals at outputs and test points (the
Lab-Volt Model 797 Dual Trace Oscilloscope is
recommended).

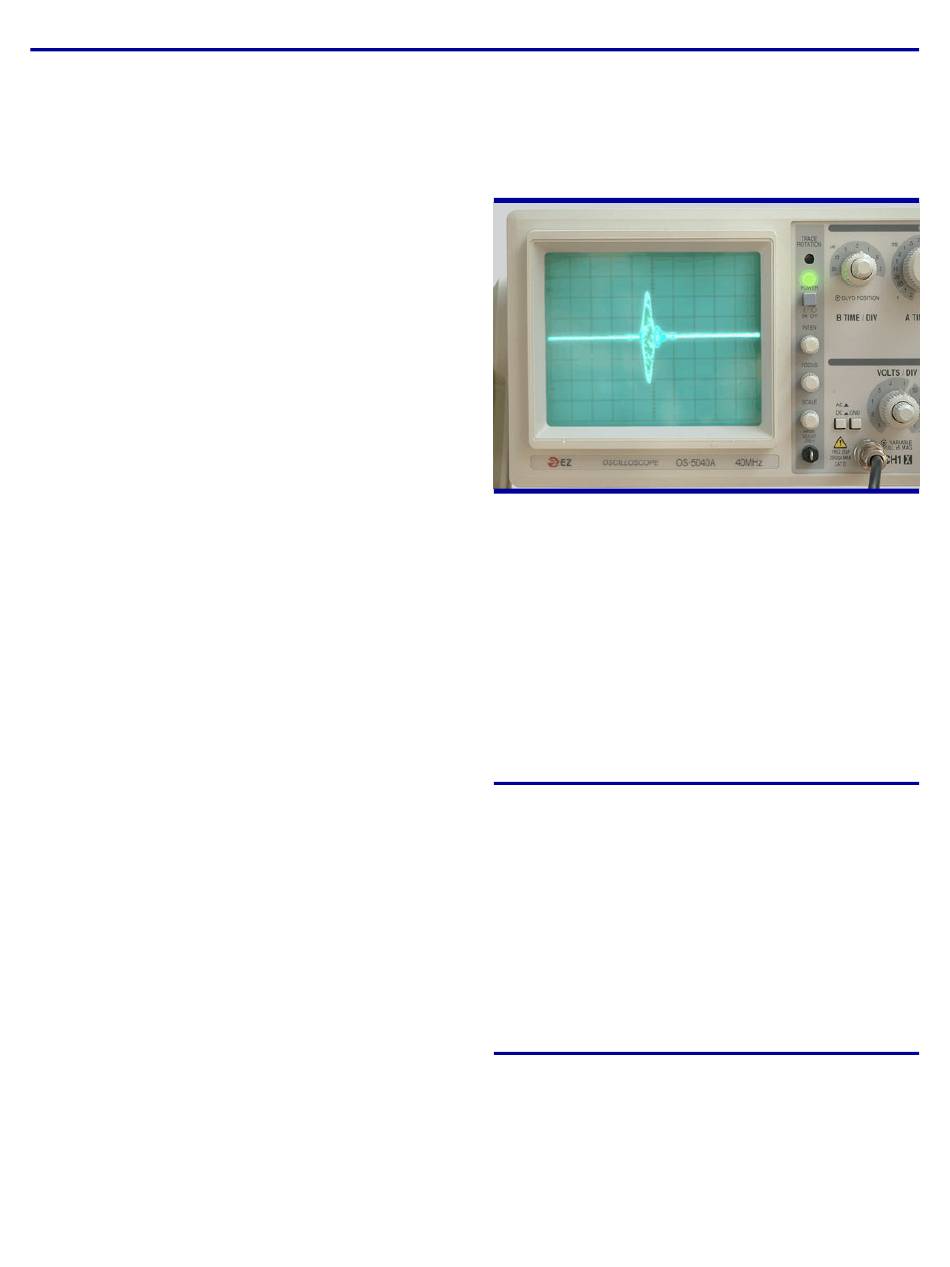

Figure 1. Radar echo of a moving target observed on an A-scope
display obtained using a conventional oscilloscope.
The Basic Radar Training System consists of a
transmitter, a receiver, three instrumentation modules,
an antenna with pedestal, a target positioning system,
and a set of accessories. A comprehensive student
manual and an instructor guide, which may be ordered
separately, are also provided
equipment provided in this data sheet for additional
information.

TABLE OF CONTENTS

General Description . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of Contents of the Student Manuals . . . . . . . 12
Lists of Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 13
of
Additional Equipment Required to Perform
the Exercises in the Manuals . . . . . . . . . . . . . . . . . 14
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . 14
Optional Equipment for Models 8096-5 and 8096-8 15
Equipment Descriptions . . . . . . . . . . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Ordering Numbers . . . . . . . . . . . . . . . . . . . . . . . . . 34
1
. Refer to the lists of
(continues on page 3)
