Lab-Volt Synthetic Aperture Radar (LVSAR)
Software

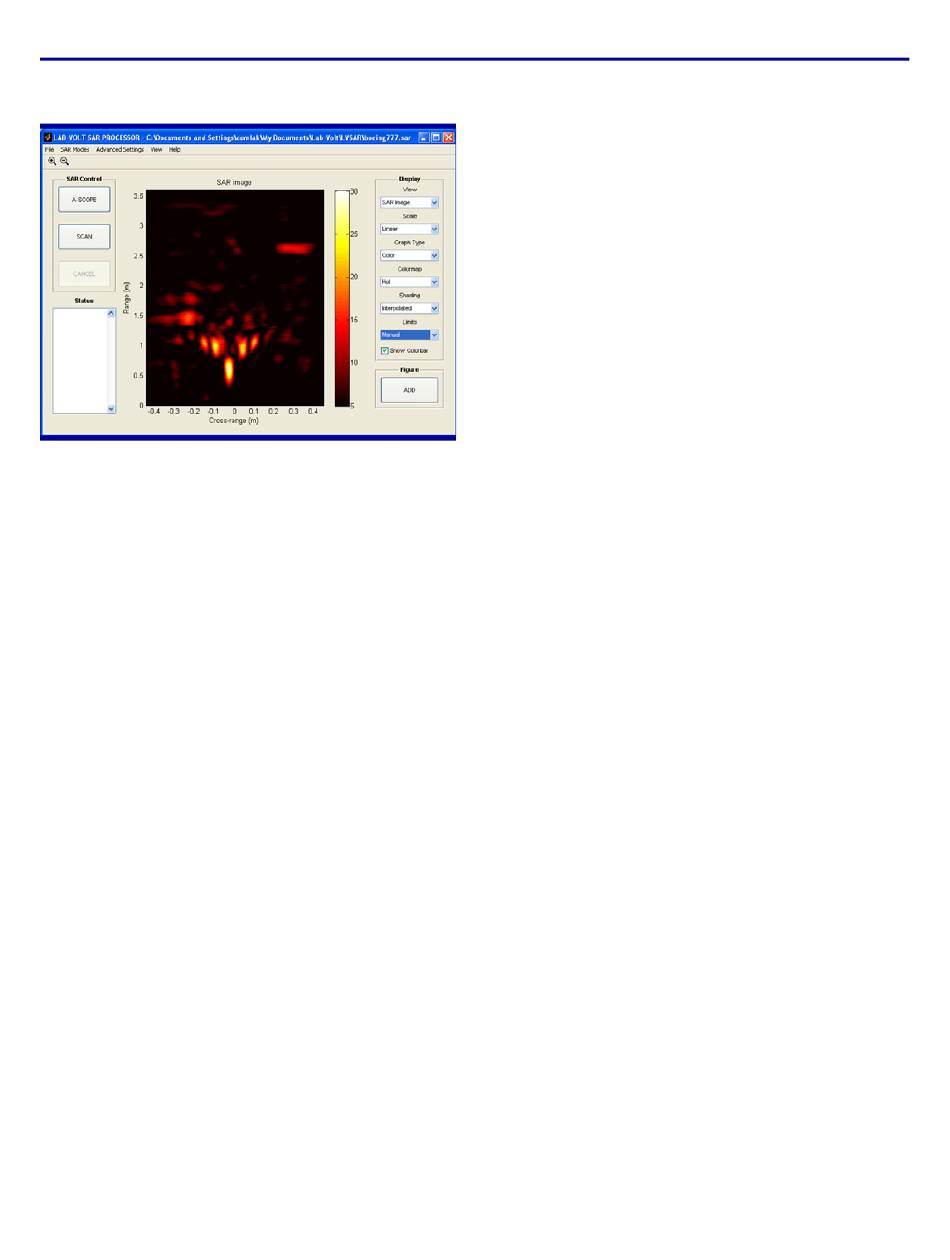

The LVSAR software is a Windows
that implements a powerful SAR processing unit that
produces SAR images from the target echo signals
acquired during a scan of the small-aperture horn
antenna over the complete aperture length. The LVSAR
software is also an intuitive user interface that provides
all the controls and settings required to operate the Lab-
-Volt synthetic aperture radar as well as to display fine
SAR images.
26
®
-based application
Model 9690-F – Connection Leads and Accessories
The Model 9690-F Connection Leads and Accessories
contains two medium-length BNC cables, two long BNC
cables, a low-loss long SMA cable, a short multiway
cable (to connect the SAR Controller to the Target
Controller of the Target Positioning System), a long
USB-port cable, a two-axis adjustable antenna support,
and a radiation absorbing material (RAM) panel.
