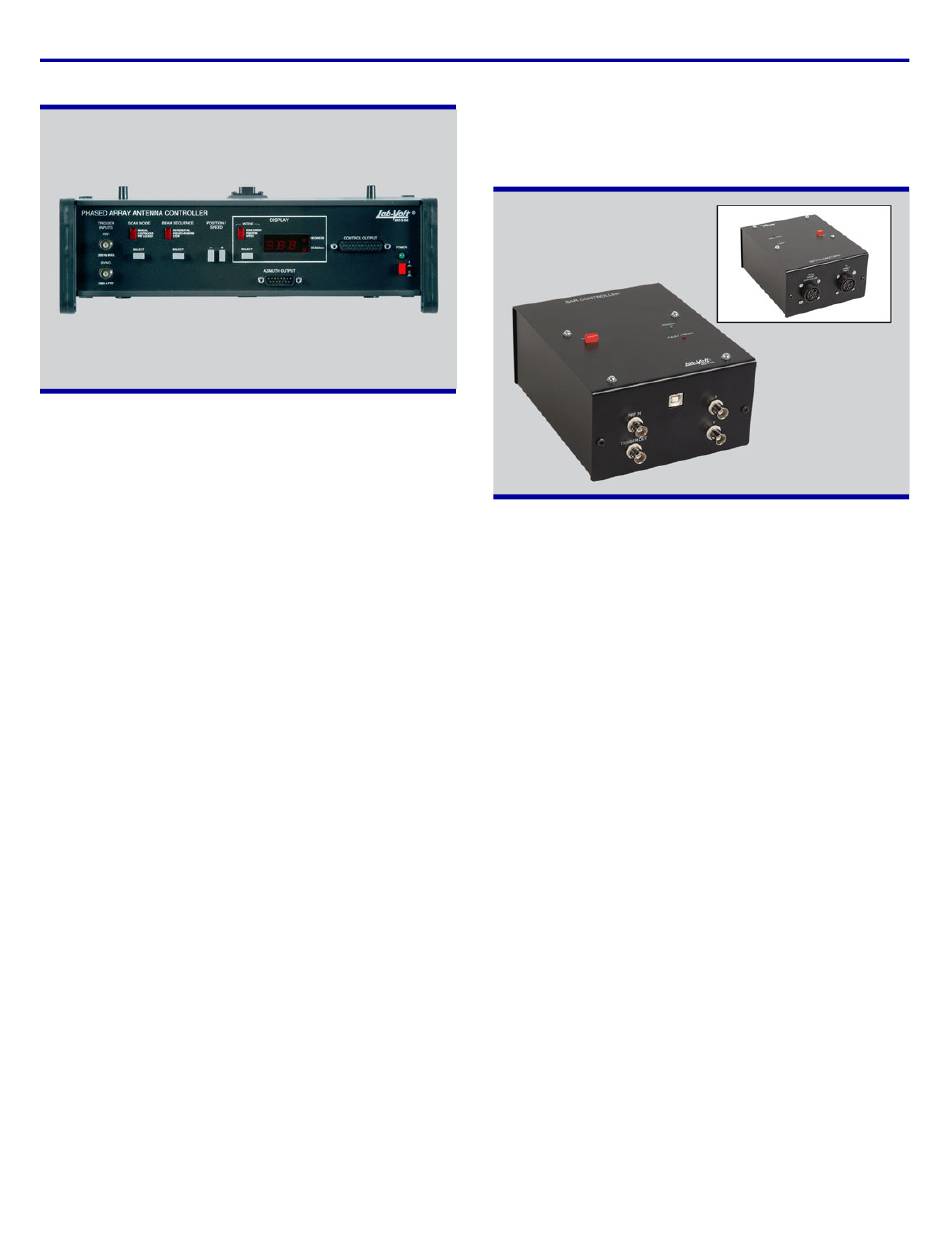

Model 9613 – Phased Array Antenna Controller
The Phased Array Antenna Controller is used for beam
steering control of the Phased Array Antenna (PAA),
Model 9612. It allows the PAA to be operated in the
following three different
continuous, and PRF locked (radar PRF dependent).
The beam sequence (i.e., the order in which the beams
are scanned) can be either linear or pseudo-random, or
consists of even-numbered beams only (skips over every
second beam). A 3-digit display on the front panel of the
Phased Array Antenna Controller indicates the number
of the selected beam, the angular position of the beam
or the scan speed.
Model 9690-E – Connection Leads and
Accessories
The Model 9690-E Connection Leads and Accessories
contains two short SMA cables with built-in passive
limiters, two low-loss long SMA cables, a 30-dB SMA
attenuator, a DB25 cable, and a microwave absorbing
pen.
scan modes: manual,
SUBSYSTEM 8096-8,
RADAR (SAR) TRAINING
TO 8096-5)
Model 9614 – SAR Controller
The SAR Controller allows motion control of the small-
aperture horn antenna installed on the moveable
carriage of the Target Positioning System (Model
9607-1) when the
System (Model 8096-1) is used as a synthetic aperture
radar. Antenna motion commands are received from the
SAR Processor (RCS/ISAR Processor, Model 9611
equipped with the LVSAR software) via a USB port
connection. The SAR controller also ensures that the
radar echo signal acquisition is properly synchronized
with the horn antenna motion. The SAR Controller is
provided with an LED indicator that lights up when faulty
operating conditions are detected in the Target
Positioning System. A reset button on the SAR
Controller allows normal operating conditions to be
restored.
