Danfoss AMI 120 NL-1 Operating Manual page 2

AMI 120 NL-1
❷
AMI 120 NL-1
SP
SN 4 1
(Op onal)
~ AC 24V
50/60Hz
Note: Direction of actuator stem movement is defined with
jumper position. Look bottom chapter "Travel Direction".
½"
❸
⑤
❹
②
①
②
①
①
2 | © Danfoss | 2021.09
5
(Op onal)
①
②
F1 F1
VAR1 VAR1
1 1 3 3
2 2 4 4
1 1 3 3
2 2 4 4
③
LED_UP LED_UP
MOTOR
CMa CMa
CM CM
VAR2 VAR2
RM RM
D4 D4
C6 C6
D3 D3
C5 C5
C3 C3
IC1 IC1
R3 R3

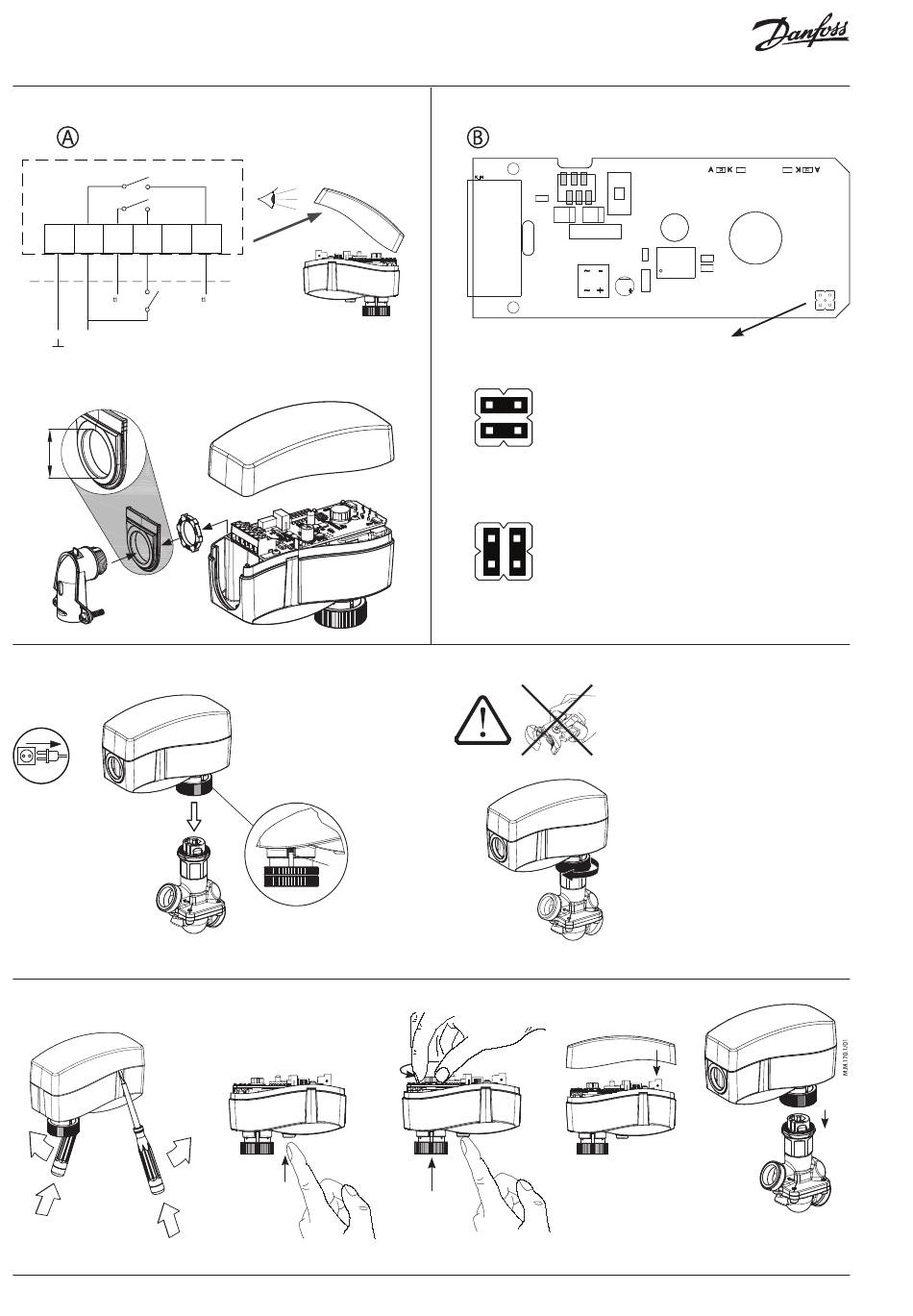

Jumper Position "A" (Factory Setting)
"On" at terminal block position "1": Actuator drives
up and valve opens, optional terminal 4 closes.
"Off" at terminal block position "1": Actuator drives
down and valve closes, optional terminal 5 closes.
Jumper Position "B"
"On" at terminal block position "1": Actuator drives
down and valve closes, optional terminal 4 closes.
"Off" at terminal block position "1": Actuator drives
up and valve opens, optional terminal 5 closes.
④
AQ315252253183en-010301
R5 R5 R4 R4 LED_DOWN LED_DOWN
1 1 3 3
XS XS
2 2 4 4
1 1 3 3
XS XS
2 2 4 4
⑤
AMI 120 NL-1 +
AB-QM
