INSTALLATION INSTRUCTIONS
VOLT
®
VOLT
G2 Big Par36 Cast Brass Flood Light
®
VFL-4501-4-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2020, VOLT
customersupport@voltlighting.com • 813.978.3700
Low Voltage Landscape Lighting
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFL-4501-4-BBZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Volt VFL-4501-4-BBZ

  • Page 1 VFL-4501-4-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2020, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
  • Page 2 INSTALLATION INSTRUCTIONS VOLT G2 Big Par36 Cast Brass Flood Light ® VFL-4501-4-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.

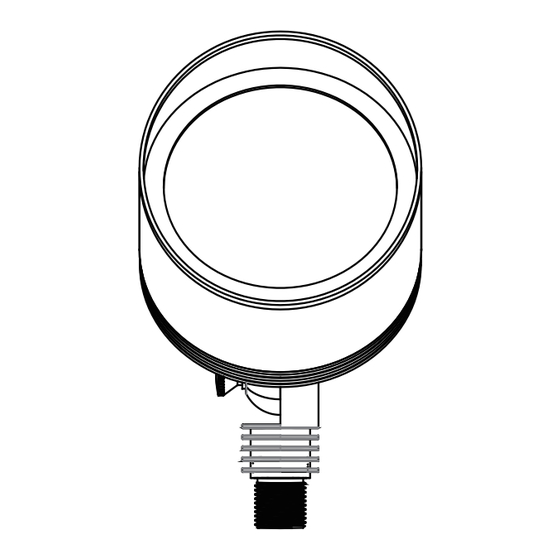

  • Page 3 Package Contents A. (1) Fixture Parts Required (sold separately) A. (1) PAR36 Bulb B. (1) Mounting Accessory Product Dimensions 4.25” 4.65” 2.3” Remove Glare Guard Rotate the glare guard counter clockwise and remove ROTATE it from the fixture. Then remove the bulb holder. Glare Guard Bulb Holder Fixture...
  • Page 4 INSTALLATION INSTRUCTIONS VOLT G2 Big Par36 Cast Brass Flood Light ® VFL-4501-4-BBZ Install PAR36 Bulb Use a PAR36 bulb (sold separately), PAR36 Bulb with the correct wattage and type Supply Wire as marked on luminaire label. Connect the supply wires using the screws on the bottom of the PAR36 bulb, tighten with a screwdriver.
  • Page 5 Install Stake Determine the desired location Board for mounting the stake. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering. Stake Note: If the ground is hard and the stake is difficult to install,...
  • Page 6 INSTALLATION INSTRUCTIONS VOLT G2 Big Par36 Cast Brass Flood Light ® VFL-4501-4-BBZ Wire Connection Fixture Wire Connectors Supply Wire Main Supply Cable Main Supply Cable Pigtail Strip both leads from the fixture pigtail. Using two UL listed wire connectors (sold separately), connect the leads from the fixture to the main supply cable leads.
  • Page 7 Install/Replace PAR36 Bulb Reverse Step 1 - Step 3 to expose the PAR36 bulb and replace it with correct wattage and type marked on luminaire label. Reinstall glare guard. IMPORTANT: Halogen lamps must be protected from moisture and dust at all times. Always reinstall glare guard when removed. customersupport@voltlighting.com •...
