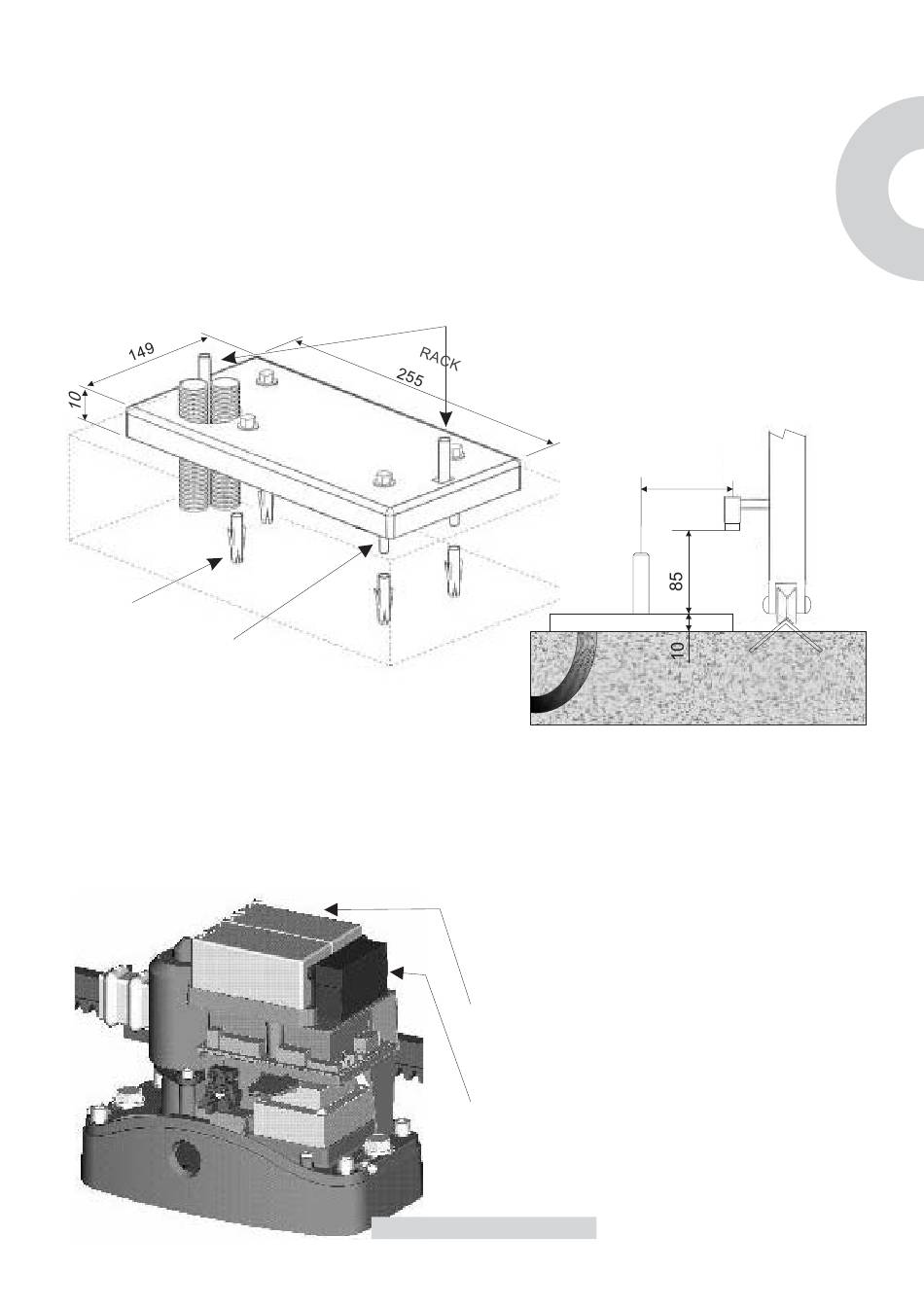

ANCHORAGE PLATE' FIXING
Respecting the overall sizer, fix to ground the base-plate through 4 sturdy
screw-anchors © a nd fitting screws (B)
B and C are not included
Plan for one or more sheating for the passage of the power lines.
fig.3
C
B
Attention: put included screw bolts (A) in position, under the plate in special
square holes.
Mark well:It is necessary to know the rack dimensions to can calculate exactly the
Counter-plate.
, or drown it into the concrete.
.
A
PLUG BATTERY
Turbo 30 is has a place where you can
install 2 plug batteries
TYPE: 12V 1,2Ah
DIM: 44x98x52
They must be connected with battery
charger: 900CABAT30
Fig.4
