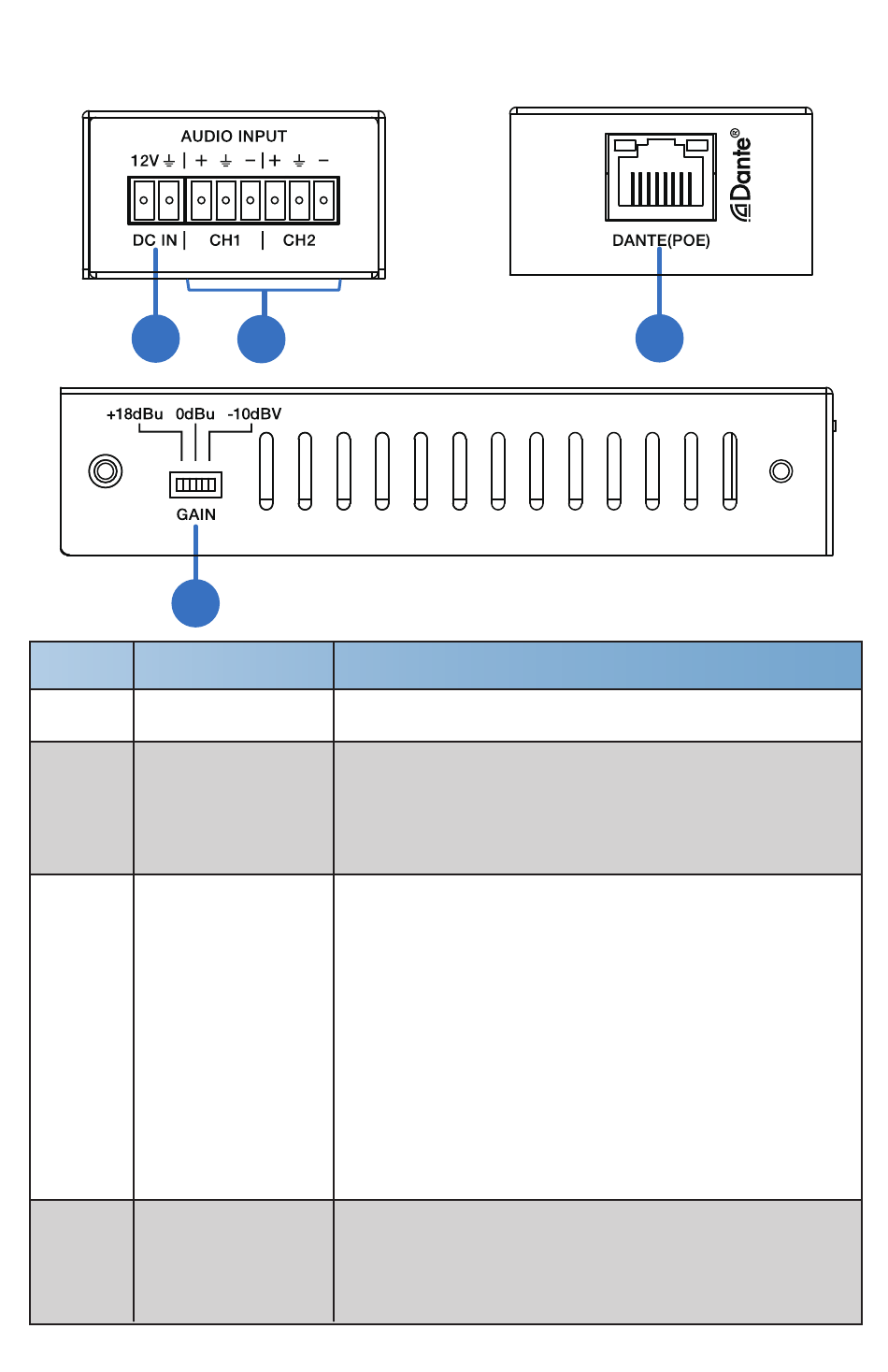

5. Operation Controls and Functions

1
4
No. Name
1
DC IN
AUDIO
INPUT
2
(CH1/CH2)
DANTE
3
(POE)
4 GAIN switch
2
Function Description
DC 12V power input port.
2 channel analog audio input
ports, supporting balanced and
unbalanced audio.
Dante digital audio output port.
Connect to the Network Switch
through RJ45 line, supporting PD
power supply.
The green LINK LED is always on
after normal connection.
The yellow DATA LED is flashing
when there is data transmission.
Used for audio input gain
adjustment, respectively +18dBu,
0dBu (default), -10dBV.
