- Page 1 DLM600 Series M6 Option for M9G, M130 or M131 Manual Addendum M362720-01 Rev D www.programmablepower.com...
-
Page 3: Features And Functions

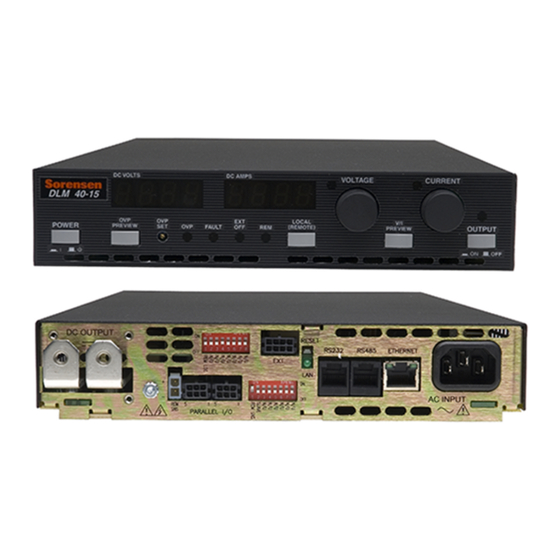

1.1 INTRODUCTION 1.1.1 M6 with GPIB M9G The option M6, herein, will describe the operation and M9G remote programming option for the DLM600 series power supply with an Isolation and Polarity Reversal Relay PCB. This option is assembled as a self-contained unit with newly designed extended lower plate and top covers, which allow the user full isolation and reverse polarity capability for both output and external sense. -
Page 4: Programmable Functions
1.3 PROGRAMMABLE FUNCTIONS M9G - All programmable functions remain as described in Section 1 of the M9 manual. M130/M131 - Ethernet M130 and M131 programmable functions listed in manual, P/N M362797-03 apply. 1.3.1 Additional Programmable Functions Remote Isolation Relay control Remote Local/Remote Sense Relay control Remote Reverse Polarity control 2.1 CONFIGURATION... - Page 5 Sorensen DLM600 Series M6 Option: M9G, M130, M131 2.1.3 Rear Panel M130/M131 Figure 2.1-1 and Figure 2.1-2 label the pertinent rear panel components for the typical M130 and M131 Ethernet option. Figure 2.1-1 Typical Rear Panel of M130 Ethernet Option 1 –...
- Page 6 2.1.4 Rear Panel M130/M131 with M6 Option, label the pertinent rear panel components for the M130 and Figure 2.1-3 Figure 2.1-4 M131 with M6 option. Figure 2.1-3 M130 Rear Panel with M6 Disconnect/Polarity Relay Option 1 – Configuration Switch. 2 – External User Control Signal Connector 3 –...
- Page 7 Sorensen DLM600 Series M6 Option: M9G, M130, M131 2.1.5 Configuration Switch The DIP switch is accessible from the rear panel to allow configuration of the supply with the installed M130/M131 for the user’s particular system and application. Note: On the Ethernet master, the rear panel switch gets set to Remote On, and all remaining switches are disregarded.
- Page 8 2.1.6 External User Control Signal Connector The external user control signal connector described in the M130/M131 Programming Manual, P/N M362797-03, and in the M9G manual, has been changed as it applies to the M6 Option. The end user will no longer have access to the following signals: POLARITY at pin 6 ISOLATION at pin 7 SENSE at pin 8...
- Page 9 Sorensen DLM600 Series M6 Option: M9G, M130, M131 Figure 2.1-7 External User Connector Designation (8-pin Molex) N/A to end user. Figure 2.1-8 Example of Open Collector, TTL Input, and Relay Output Circuits Addendum...
- Page 10 2.1.7 GPIB Address Switch The GPIB SET UP DIP switch on the rear panel should always have the top switch REM on the ON position, for remote only. The front panel REM indicator should be on (green) at power up. 3.1 IEEE 488.2 and SCPI COMMAND OPERATION The M9 and Relay PCB operation by remote programming using the M9 IEEE-488.2 and SCPI command sets are described in the section 3 of the M9 programming manual.
- Page 11 Sorensen DLM600 Series M6 Option: M9G, M130, M131 CAL:STORE CAL:LOCK 3.1.3 Polarity Relays OUTP:POL INV ;output polarity relay will be engaged after the <ISOL> command OUTP:ISOL ON ;output polarity relays engaged. SOUR:CURR 10 SOUR:VOLT –20 ;will read –20V at the output. Addendum...
- Page 12 Remote Shutdown Operation, DLM Functionality (with Iso Relays) 1.1.3 Shutdown Trigger - TTLSD • The output is inhibited with a TTL level high (5V). • User to connect rear panel utility Digital I/O 8 pin J4 connector next to the GPIB; the pins are J4-2, TTLSD and GND J4-5.
- Page 13 Sorensen DLM600 Series M6 Option: M9G, M130, M131 M9G Views DLM600 Side View DLM600 Top View Addendum...
- Page 14 DLM600 Rear View Addendum...
- Page 15 Sorensen DLM600 Series Sorensen DLM600 Series M6 Option: M9G, M130, M131 M6 Option: M9G, M130, M131 This page intentionally left blank. Addendum Addendum...
