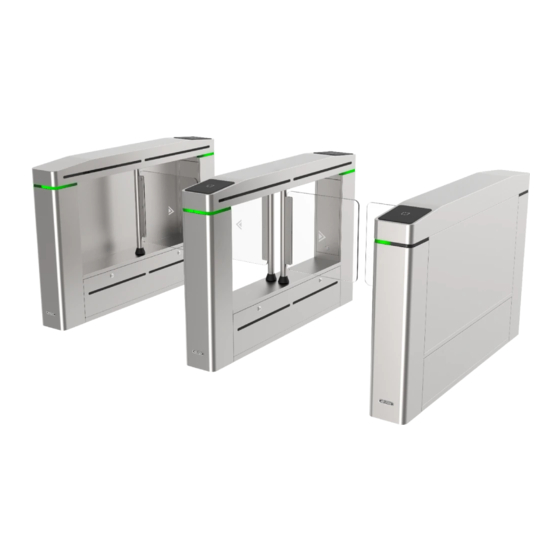

Page 1: Face Recognition Swing Barrier Installation Guide
Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team Face Recognition Swing Barrier Installation Guide Date Content Person 20180320 Creat Ciel 20180409 Modify Nero 20180719 Translation and Modify Morgen 20190215 Modify Morgen... -
Page 2: Table Of Contents
Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team Content Face Recognition Swing Barrier Installation Guide ......................... 1 1. Introduction .................................... 3 1.1 Brief Structure ................................3 1.2 Device Model ................................4 1.3 Parameters .................................. 5 2. Installation Guide .................................. 6 2.1 Installation for swing barrier .......................... -
Page 3: Introduction
RS232 interface; The second scenario is used more common, connect DS-K5603(T)-Z face recognition terminal and swing barrier DS-K3B601-XXX, the quantity of barrier, face terminal, card or fingerprint reader are selected according to customer requirement. In second scenario (picture on the right), one channel is for entrance and another for out, so we need 4 face recognition terminals and 4 card readers. -
Page 4: Device Model
1.2 Device Model For face recognition swing barrier solution, here are the baseline model：L for left，M for medium，R for right Swing Type Verification Model Note Two-way Mifare Card DS-K3B601-α/M-DpXXX α : L/M/R Two-way Mifare Card or Face DS-K3B601-α/MPg-DpXXX XXX: 65/75/90/110cm Acrylic... -
Page 5: Parameters
4. You can get the document which will help you to make order from below path: /Product File(Overseas)/00 Oversea Products/05 Access Control_Intercom/12 swing barrier（temporary）/ For iVMS-4200 software, currently we use baseline V2.8.1.4，it’s available from Hikvision official website： https://www.hikvision.com/en/Support/Downloads/Client-Software 1.3 Parameters a. -
Page 6: Installation Guide
Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team 2. Installation Guide 2.1 Installation for swing barrier Swing barrier is mainly used in the entrance or exit of office building and high-end department, below instruction is only for indoor use(better to install a shield if use in outdoor). 1）... -
Page 7: Barrier Wiring
Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team 3） Draw a central line on the installation surface for installing the center pedestal. 4） Draw another two parallel lines on each side of the central line for installing the other two pedestals. - Page 8 Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team NOTE：Power OFF before wiring to ensure safety. 2） Connect master lane board and slave lane board through interconnecting cable, the cable hole is in the bottom of barrier, see Figure 5 Figure 5 Interconnecting Cable Hole 3）...
-
Page 9: Face Recognition Terminal Wiring
Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team Note: 1. The supplied interconnecting cable length is 3.75 m. If you need a longer one, ask our technical support or sales to purchase 5.5 m interconnecting cables； 2. The inner diameters of the low voltage conduit and the high voltage conduit should be larger than 30 mm. - Page 10 Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team Figure 6 Face recognition terminal power and RS232 cable wiring(master barrier side) Figure 7 Face recognition terminal power and RS232 cable wiring(slave barrier side) Raise the pipe and make sure the pipe and the pedestal top panel are vertical.； Secure hex socket screws.
-
Page 11: Configuration And Debug
3. Configuration and Debug 3.1 Configure K3M200 barrier control board Install iVMS-4200 client software, activate and add K3M200 barrier control board to iVMS-4200 client software； https://www.hikvision.com/en/Support/Downloads/Client-Software Open remote configuration of K3M200, go to systemRS-485, select 4 and 6 from drop-down list, ；... -
Page 12: Configure Face Recognition Terminal
Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team Note: The RS485 port 4 is for master face recognition terminal, port 6 for slave face recognition terminal. If face recognition terminal is installed on both sides(IN&OUT both direction). Please configure port 4 and 6 from RS-485 drop-down list. -
Page 13: Permission Configuration On Ivms-4200 Client Software
Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team ② Import from USB flash：enter device menu Data Management enroll_pic in USB flash Create a folder and add all user photo to this folder, Insert USB flash to device port. Note: a.The name format of the imported face picture: Card No._Name_Department_Employee ID_Gender.jpg for example: 1234567890_Nero_HQ_1_0.jpg b.The imported face picture should contain the user’s frontal face with the format of JPEG or JPG. - Page 14 Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team Add user info and card number； Add permission group and synchronize to device；...
-
Page 15: Testing
Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx Product Support Team 3.4 Testing Verify card on card reader，barrier will open, after pass the barrier will close. Verify face on DS-K5603(T)-Z，barrier will open, after pass the barrier will close. Appendix、FAQ After face recognition terminal DS-K5603-Z power on，device cannot boot normally or always restarting？ Solution: Make sure the power supply for terminal is 12V/3A, if not please change adapter The user info is synchronized from software to device successfully, but it prompt face not registered when verify face...
