highwood Sequoia Professional CM-TBLSQ36 Assembly Manual

Sequoia Professional
National Picnic Table
Assembly Guide
C
DETAIL 1
HIGHWOOD LOGO
3) Attach Brace to Leg
Using Bolt "B".
BRACE
LEG
B
SEQUOIA
PROFESSIONAL
by highwood

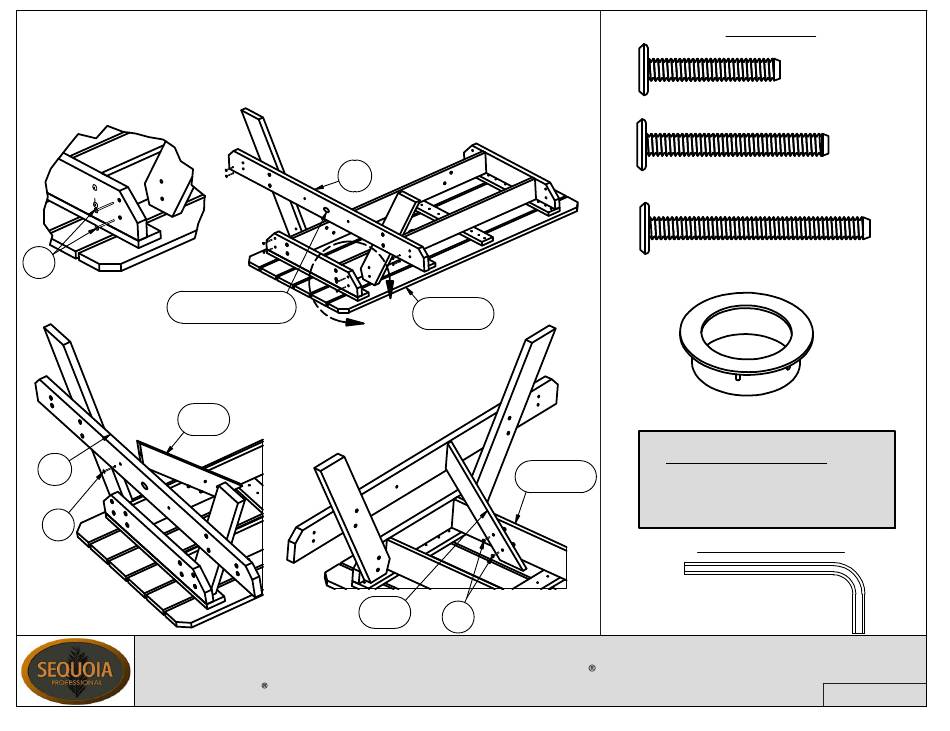

1) Orient Table With Top Down. Attach Leg
To Table Top With Highwood Logo Facing
Outward Using Two "C" Bolts On Each Side.
2) Repeat for Other Leg.
LEG
1
TABLE TOP
4) Attach Brace to Table Top
Using Two "A" Bolts.
5) Repeat Steps 3 & 4 For
Remaining Three Braces.
BRACE
A
For information on Care and Cleaning or to register your
PROFESSIONAL product by highwood , please visit
www.highwood-usa.com.
A
1/4"-20 X 1.5"
B
1/4"-20 X 2"
C
D
2" UMBRELLA GROMMET
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
TABLE TOP
go back & tighten all the bolts.
Retain these instructions for future reference
INCLUDED TOOLS
HARDWARE
x 8
x 12
x 8
1/4"-20 X 2.5"
x 1
IMPORTANT!
5/32" HEX KEY
SEQUOIA
CM-TBLSQ36
03.05.19
PAGE 1 OF 2
