highwood Sequoia Professional CM-BENSQ61-BKE Assembly Manual

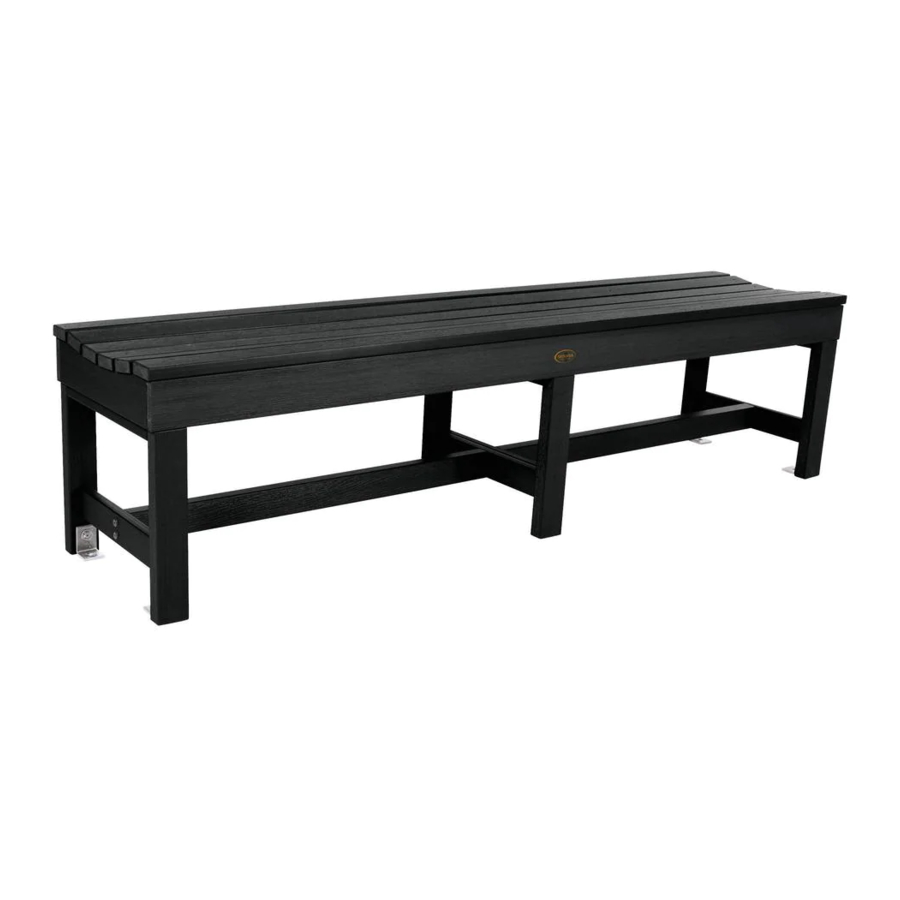

Sequoia Professional
Weldon 6' Picnic Bench
Assembly Guide

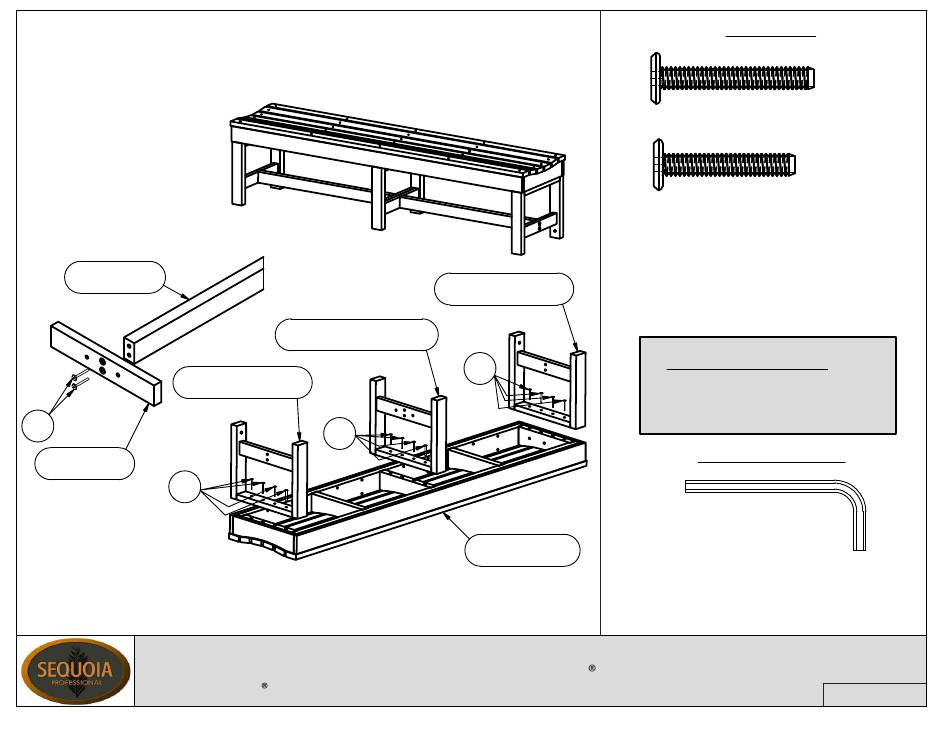

1) Attach (1) Support Bar to
Leg Support using (2) "A" Bolts
as shown
SUPPORT BAR
END LEG ASSEMBLY
A
LEG SUPPORT
A
SEQUOIA
PROFESSIONAL
by highwood
END LEG ASSEMBLY
MIDDLE LEG ASSEMBLY
A
2) Attach Leg Assemblies to Seat Assembly
using (12) "A" Bolts, Middle Leg Assembly
Brace offset to left, as shown.
For information on Care and Cleaning or to register your
PROFESSIONAL product by highwood , please visit
www.highwood-usa.com.
A
B
A
Retain these instructions for future reference
SEAT ASSEMBLY
HARDWARE
1/4"-20 X 1-3/4"
x2
1/4"-20 X 1-1/2"
IMPORTANT!
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
go back & tighten all the bolts.
INCLUDED TOOLS
5/32" HEX KEY
SEQUOIA
x20
CM-BENSQ61
03.06.19
PAGE 1 OF 2
