Adirondack Collection

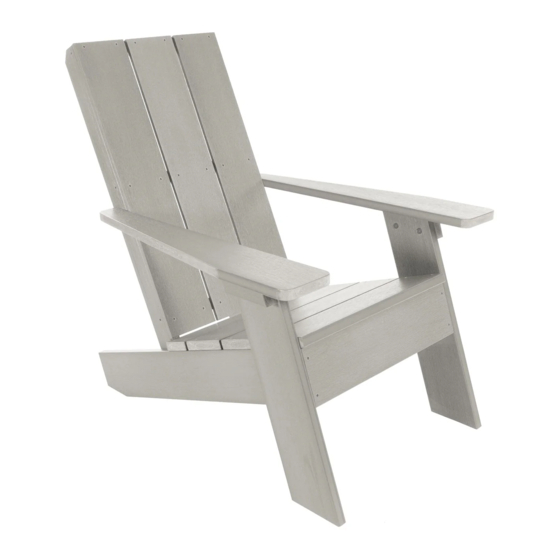

Barcelona Modern Adirondack Chair
Assembly Guide
SEAT
B
highwood
NATURE'S CLOSEST RIVAL
BACK
B
1) Attach Back to Seat Using
(4) "B" Bolts.
For information on Care and Cleaning or to register your
highwood product, please visit www.highwood-usa.com.
HARDWARE
A
1/4"-20 X 1.5"
B
1/4"-20 X 1.75"
IMPORTANT!
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
go back & tighten all the bolts.
Retain these instructions for future reference
INCLUDED TOOLS
5/32" HEX KEY
x8
x6
AD-CHRAD01
03.13.19
PAGE 1 OF 2
