ASSeMBLY GUIDe
(J)
(L)

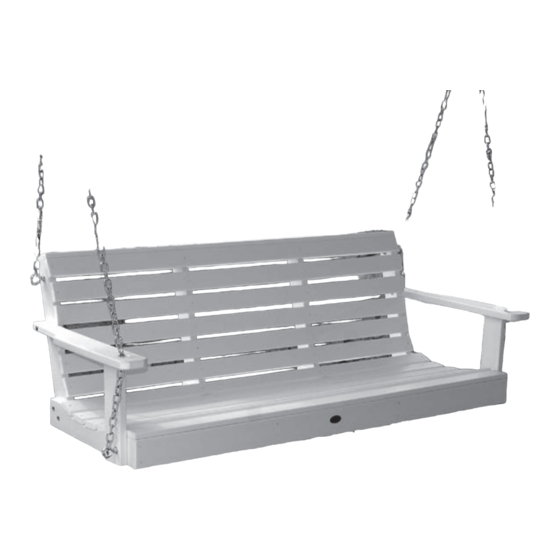

"Weatherly" porch Swing
tOOLS
• 7/16" Wrench
(Socket wrench recommended)
• Screwdriver/Square bit #1
(Power screwdriver/Square bit #1
recommended)
• Hammer
COMpONeNtS
Part
Description
(A)
Swing Back
(B)
Swing Seat
(C)
Arm Rests
(D)
2-1/4" Carriage Bolts
(E)
3" Carriage Bolts
(F)
Open-Eye Eyebolts
(G)
Flange Nuts
(H)
Flat Washers
(I)
Lock Nuts
(J)
7' Stainless Steel Chain
(K)
2' Stainless Steel Chain
(L)
Chain Connector
(F)
(D)
(K)
(e)
PORW1 [11.2.12]
Qty
1
1
2
10
2
2
12
2
2
2
2
2
(I)
(H)
(G)
