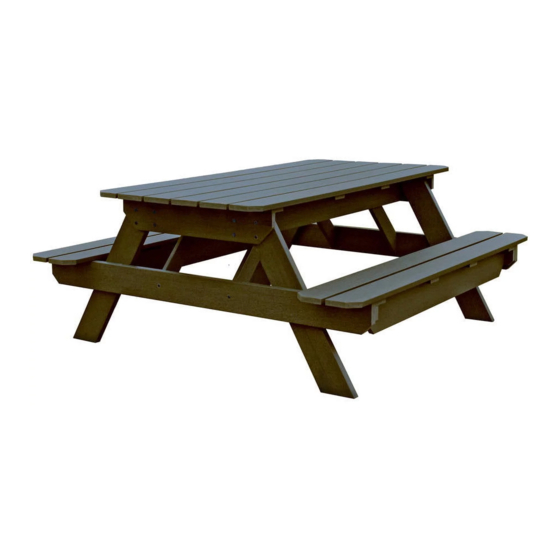

Liberty Picnic Table
Assembly Guide
B
DETAIL 1
HIGHWOOD
3) Attach Brace to Leg
Using Bolt "B".
BRACE
LEG
B
highwood
NATURE'S CLOSEST RIVAL

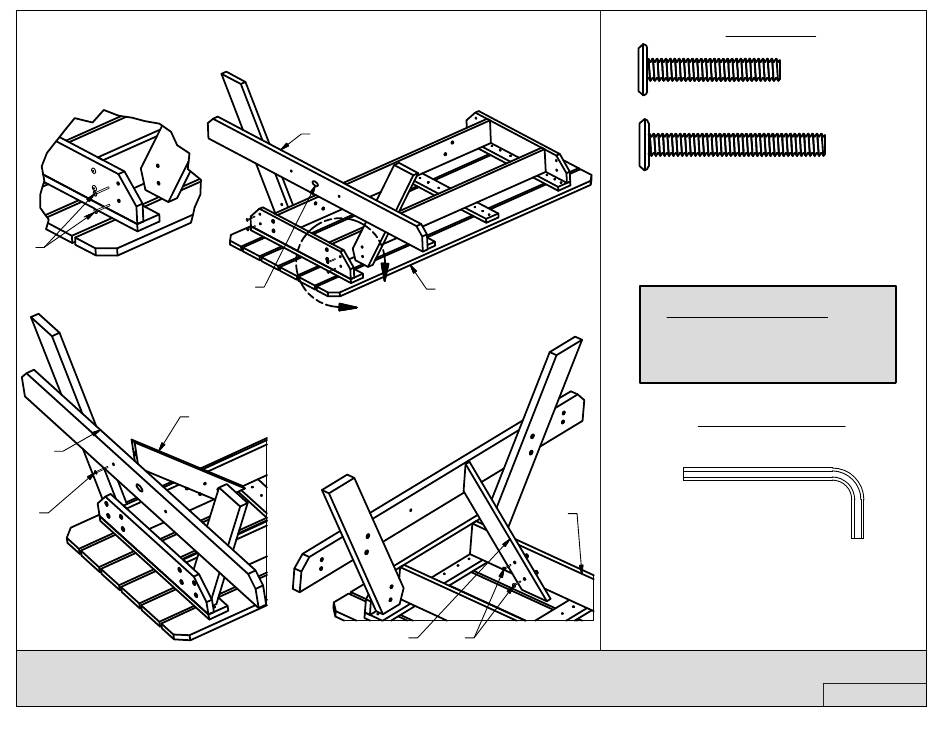

1) Orient Table With Top Down. Attach Leg
To Table Top With Highwood Logo Facing
Outward Using Two "B" Bolts On Each Side.
2) Repeat for Other Leg.
LEG
1
LOGO
4) Attach Brace to Table Top
Using Two "A" Bolts.
5) Repeat Steps 3 & 4 For
Remaining Three Braces.
BRACE
®
For information on Care and Cleaning or to register your
highwood® product, please visit www.highwood-usa.com.
A
B
TABLE TOP
TABLE
TOP
A
HARDWARE
x 16
1/4"-20 X 1.5"
1/4"-20 X 2"
IMPORTANT!
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
go back & tighten all the bolts.
Retain these instructions for future reference
INCLUDED TOOLS
5/32" HEX KEY
TBL-HI1-3672-B
09.21.2016
x 12
PAGE 1 OF 2
