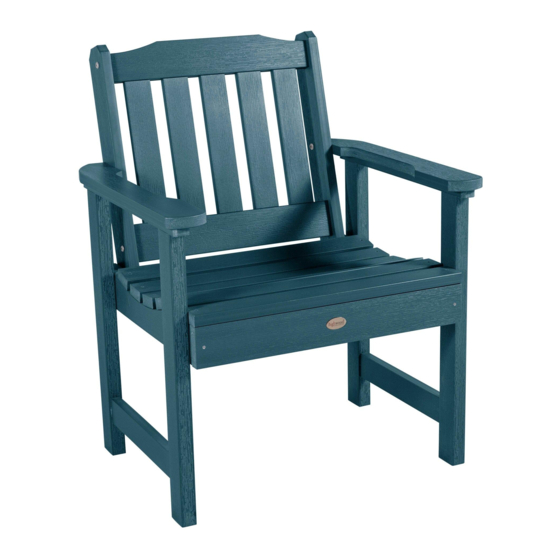

highwood Lehigh Garden Chair Assembly Manual

Lehigh Collection
Garden Chair
Assembly Guide
ALIGN ANGLES OF
BACK AND SEAT
SEAT
1
1) Attach Chair Back
to Seat Using One "A"
Bolt in the Upper Hole
on Each Side.
2) Attach Leg
Assembly to Seat
Using Two "B" Bolts in
Front and One "C" Bolt
in Rear. Attach Arm to
Back Using One "A"
Bolt.
highwood
NATURE'S CLOSEST RIVAL
BACK
A
A
B
SEAT
3) Repeat on Other
Side.
For information on Care and Cleaning or to register your
highwood product, please visit www.highwood-usa.com.
A
B
C
ARM ASSEMBLY
BACK
A
C
HARDWARE
x4
1/4"-20 X 1.5"
x4
1/4"-20 X 2"
1/4"-20 X 3"
IMPORTANT!
DO NOT fully tighten the bolts until all
bolts are started. Once all bolts are inserted,
go back & tighten all the bolts.
Retain these instructions for future reference
INCLUDED TOOLS
5/32" HEX KEY
CHGL1
12.28.18
x2
PAGE 1 OF 1
