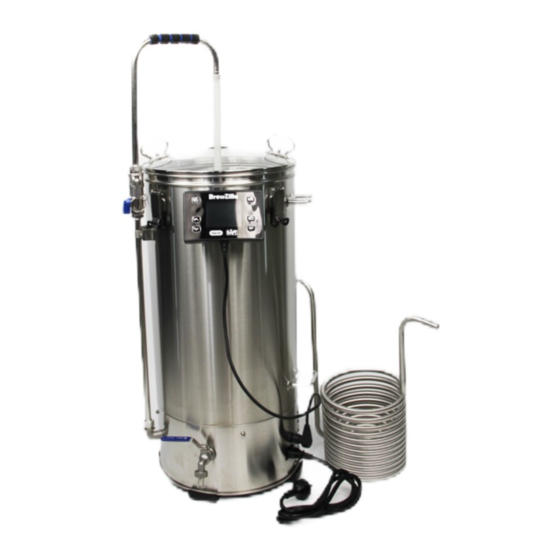

KegLand BrewZilla 35L Gen 4 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
BrewZilla 35L - Gen 4 Instruction Manual
BrewZilla 35L – Gen 4
Instruction Manual
KegLand Distribution PTY LTD
www.KegLand.com.au
1
31
www.KegLand.com.au
Last Updated 22/03/2022 16:53 PM
Page
of

Advertisement

loading
Need help?

Need help?

Do you have a question about the BrewZilla 35L Gen 4 and is the answer not in the manual?

Questions and answers

Related Manuals for KegLand BrewZilla 35L Gen 4

Summary of Contents for KegLand BrewZilla 35L Gen 4

  • Page 1 BrewZilla 35L - Gen 4 Instruction Manual BrewZilla 35L – Gen 4 Instruction Manual KegLand Distribution PTY LTD www.KegLand.com.au www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 2 10. Use only the recommended cleaners and sanitiser products listed in the recommended accessories section (p.20-22). Using chemicals not tested or recommended on the BrewZilla can result in permanent damage and void warranty. If you require further assistance with chemical compatibility please contact www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...

  • Page 3: Parts Checklist

    Malt Pipe reinforced bottom screen (no hole and no seal required)  Malt Pipe reinforced top screen (no hole and no seal required)  BrewZilla Gen 4 RAPT Wi-Fi Controller  8 pin power cable for BrewZilla Wi-Fi controller  www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 4 Registering your BrewZilla Gen 4.0 to the RAPT Portal is quick and easy and requires the steps below to be followed. If you intend to only use the controller manually skip ahead to the assembly instructions. BrewZilla Digital Temperature Controller www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 5 2. Plug your BrewZilla Wi-Fi controller into the boiler using the provided 8-pin power cable 3. On your smart phone or tablet, open your Wi-Fi setting and connect to the Kegland RAPT Wi-Fi Access Point using the Wi-Fi name and password displayed on the BrewZilla Wi-Fi controller.
  • Page 6 4. Enter the MAC address and Validation Code when prompted in the required fields, then select Next. 5. Congratulations! Your BrewZilla controller is connected to Wi-Fi and registered to your RAPT Portal and your BrewZilla can now be controlled through the RAPT Portal. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 7 Tip: if you require a greater angle for the Digital Controller the mounting bracket can be rested on the bolt as shown below to the right. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 8 To aid in lifting out the false bottom install the eye bolt assembly, washers and locking nut onto the false bottom. These parts are included in your BrewZilla kit. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 9 Then turn the BrewZilla upside down and insert the thread of the tap through the pre-drilled hole in the boiler. Secure the tap on the inside of the boiler using the hex nut and secure the barb in place by tightening the retaining nut onto the taps thread. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 10 To achieve this, you will first need to move the position of the pump as shown to the right. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 11 BrewZilla 35L - Gen 4 Instruction Manual Then change the pipe work to the following such that the tee piece from the boiler outlet splits to the tap before it reaches the pump inlet. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 12 Please note: Use of the perforated top screen is optional. The system can be used without it if you prefer to gently stir the mash. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 13 RAPT Portal you will need to disable the Wi-Fi in the settings of the controller. To do this press select to enter the menu, then select settings, then navigate using the arrows to the Disable Wi-Fi settings, press select to disable Wi-Fi and the controller will then restart. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 14 Alternatively, you can hold the pump button while pressing the up or down arrows to adjust the duty cycle. Adjusting the heating power www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 15 Then insert the top screen into the malt pipe so that it lightly rests on top of the grain. After all the grain has been stirred in and the top screen inserted, you can then assemble the recirculation pipe to recirculate during the mash. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 16 100% and before turning the pump off. This prevents grain being sucked back up the recirculation arm and back into the pump when suction is generated when the pump is cycled off. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 17 This is why your strike temperature needs to be accurate! The BrewZilla includes Ultra Low Watt Density Elements (ULWD) meaning brighter beer can be brewed with the fear of scorching and burnt off- flavours. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 18 Note: The malt pipe of the March 2022 batch of Gen 4.0 BZ does not feature a perforated malt pipe like the one shown above. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 19 BrewZilla and then immerse your immersion chiller in a bucket of ice water. There are a number of optional fittings which can be used to easily connect your garden hose or pump to your immersion chiller which can be purchased separately. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 20 Cube or HDPE Bladder with hot wort then quickly fit the lid, this will keep your wort in a sanitary environment. If you use this method, make sure to purge air out of the cube / www.KegLand.com.au Last Updated 22/03/2022 16:53 PM...
  • Page 21 Recirculate this StellarSan solution through the camlock recirculation arm and the chiller (if required). The StellarSan solution can then be emptied ready for the next brew day, it does not require rinsing. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 22 1. On your BrewZilla controller enter the Settings Menu and then navigate to Clear Registration and press Select to clear the device registration. 2. Open the RAPT Portal (app.rapt.io) and click on the edit button of the BrewZilla controller you wish to re-register. www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 23 4. Click the Reset Device Authentication button. 5. When prompted, enter the new Validation Code that was generated on the BrewZilla Controller and click Save. Your BrewZilla should now be registered successfully. If you are still experiencing issues, please contact beer@kegland.com.au for further assistance Calibration If you find that your temperature probe is not reading the correct temperature for example if is reading over 100°C when boiling at sea level then a 2-point calibration can be...

  • Page 24: Recommended Accessories

    You do not need to sterilize your BrewZilla prior to use, as the boiling action of the vessel will kill any harmful bacteria. But can be done to ensure the upkeep of the stainless steel is www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 25 1.010. This tool is significantly better than the hydrometers as they give a faster reading without having to calibrate the reading based on the temperature of the wort. (Part No. KL07344) www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 26 (Part No. brewfather-subscription) www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 27 One major part of brewing is mash pH and for some brewers its final pH before and after fermentation. Especially if making sour beers. (Part No. KL04169) www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 28 There are three alternatives to the stock cooling coil. From left to right The Braided Counter Flow Chiller, The Chillout Plate Chiller and the very chemically resistant Coolossus Counter Flow Chiller. KL02035 KL10977 KL08747 www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 29 AlcoEngine Distilling Pot Still! With an all copper construction for smoothness of taste it comes with a digital thermometer and is simple to use. (Part No. KL04633) www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...
  • Page 30 All you need to do is make sure you have adequate water/coolant flowing through the head and just about everything else will look after itself. (Part No. KL04640) www.KegLand.com.au Last Updated 22/03/2022 16:53 PM Page...

  • Page 31: Warranty (Australia)

    BrewZilla 35L - Gen 4 Instruction Manual Support Please join the KegLand Home Brew Community Group for support on how to use your BrewZilla, recipes or tips and tricks. If you need hardware support, please contact your nearest BrewZilla distributor.
