Isolated DC Voltage Input/Output Module
Product Website:
http://www.icpdas-usa.com/sg_3071.html
1. Introduction

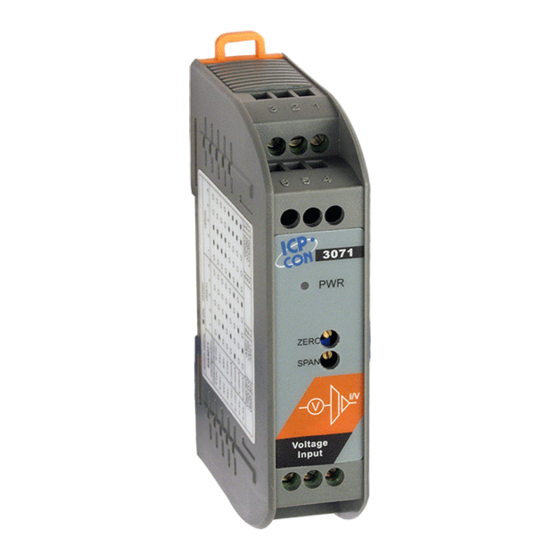

The SG-3071 is a voltage input to voltage or current output signal conditioning
module. It has 3000Vdc three-way isolation for input, output and power. Users
can change the input/output range via internal configuration switches.
The SG-3071 has an LED display to show whether the SG-3071 is functioning
correctly and has two VRs (Zero, Span) to calibrate the input/output range
accuracy. The bandwidth of the SG-3071 is typically 3KHz. It's easy to mount the
SG-3071 on a standard DIN rail and can operate in environments with wide
temperature range.
2. Pin Assignment
SG-3071 Isolated DC Voltage Input/Output Module
ICP DAS USA, Inc. |
www.icpdas-usa.com
All manuals and user guides at all-guides.com
SG-3071
Quick Start Guide
- QuickStart (Feb/2016)
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA SG-3071
Summary of Contents for ICP DAS USA SG-3071
- Page 1 The SG-3071 has an LED display to show whether the SG-3071 is functioning correctly and has two VRs (Zero, Span) to calibrate the input/output range accuracy. The bandwidth of the SG-3071 is typically 3KHz. It’s easy to mount the SG-3071 on a standard DIN rail and can operate in environments with wide temperature range.
- Page 2 All manuals and user guides at all-guides.com 3. Block Diagram 4. Default Setting SG-3071 Isolated DC Voltage Input/Output Module - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
