I-7045D
16 Channel Digital Output Data Acquisition
Module
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/i_7045_d.html
http://www.icpdas-usa.com/dcon_utility_pro.html
1. Introduction
I-7045D is intelligently designed to provide signal conditioning system
monitoring and safe value settings. I-7045 is a cost-effective solution for a
wide range of valuable industrial control signals and systems. The DCON
utility can help users to configure and test I-7045 16-Channel Isolated
Digital Output modules. Plenty of library functions and demo programs are
provided to let users develop programs easily under Windows, Linux and
DOS operating systems. Users may mount the modules on a DIN rail,
panel or wall. Modules have a screw-terminal block to connect to the
signals.

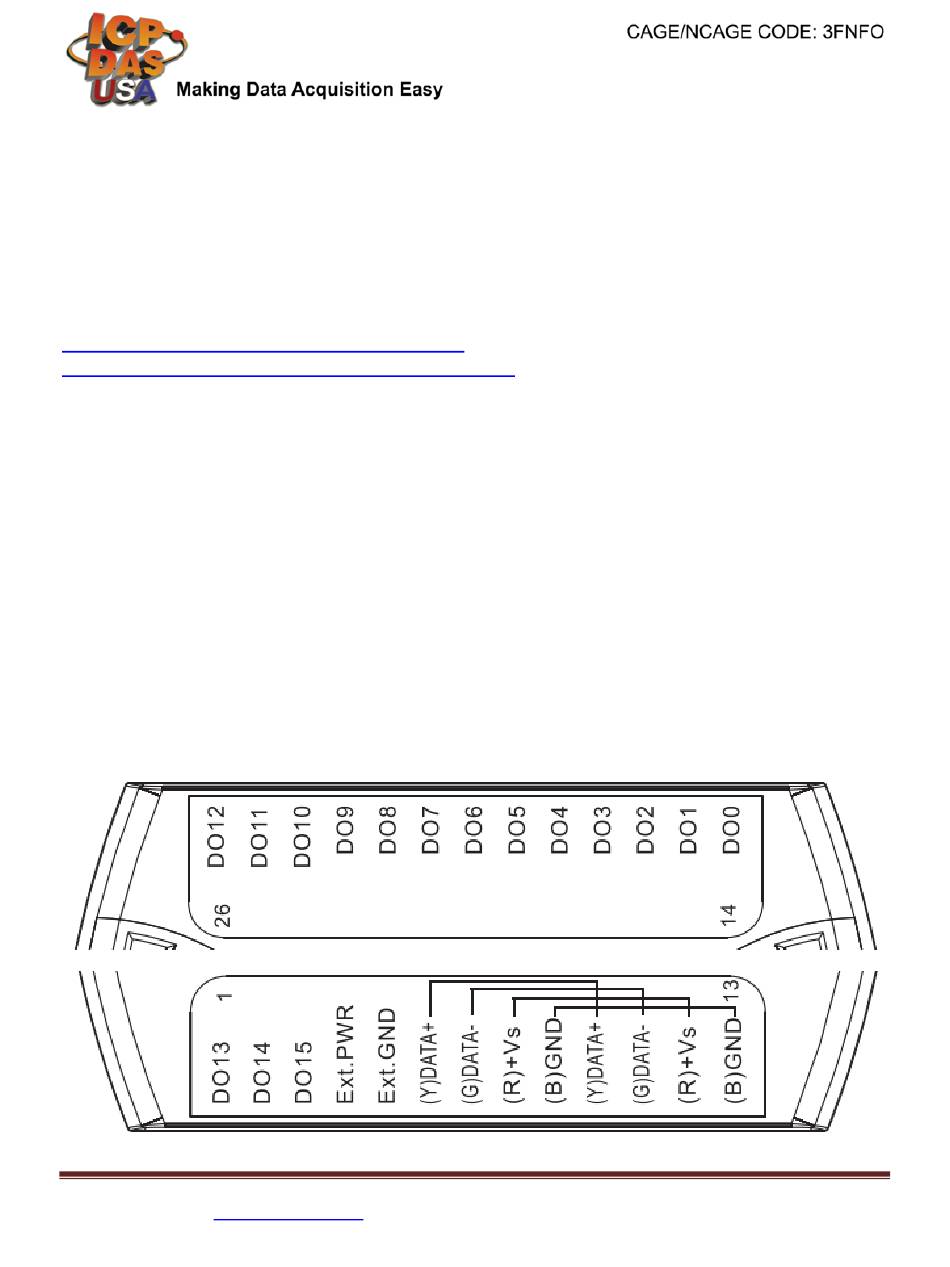

2. Terminal Assignment
I-7045D 16
Ch DO DAQ Module- QuickStart (May/2017)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA I-7045D
Summary of Contents for ICP DAS USA I-7045D
- Page 1 1. Introduction I-7045D is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7045 is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7045 16-Channel Isolated Digital Output modules.
- Page 2 3. Block/ Wiring Diagram I-7045D 16 Ch DO DAQ Module- QuickStart (May/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 3 4. Default Settings Default settings for the I-7045D DIO modules are as follows: 。 Module Address: 01 。 DIO Type: Type 40 。 Baud Rate: 9600 bps 。 Checksum disabled 。 J3 set to INIT mode enabled for I-7043/43D and M-7043/43D.
- Page 4 The default settings for the module can be found in Section 3. Click OK after selecting the COM port setting. I-7045D 16 Ch DO DAQ Module- QuickStart (May/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 5 DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS and the others modules. I-7045D 16 Ch DO DAQ Module- QuickStart (May/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 6 7. For I-7000 modules, DCON utility pro terminal can send command to the module. See user manual Sections 2 for details command. I-7045D 16 Ch DO DAQ Module- QuickStart (May/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 7 If user doesn’t know command, user can select Address and ID, it will show some refer commands as below. User can select necessary command to test or debug modules. I-7045D 16 Ch DO DAQ Module- QuickStart (May/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
