ICP DAS USA SG-3016 Quick Start Manual

Voltage Input to Voltage/Current Output
Product Info:
http://www.icpdas-usa.com/sg_3016.html

1. Introduction

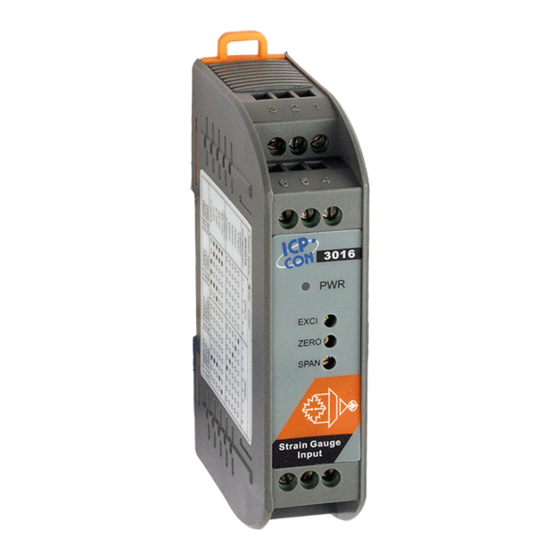

The SG-3016 is a voltage input to voltage or current output signal conditioning
module. It has 3000Vdc three-way isolation for input, output and power. Users
can change the input/output range via internal configuration switches. The SG-
3016 has an LED display to show whether the SG-3016 is functioning correctly
and has three VRs (Zero, Span, Exci) to calibrate the input/output range accuracy.
The bandwidth of the SG-3016 is typically 600Hz. It's easy to mount the SG-3016
on a standard DIN rail and can operate in environments with wide temperature
range.

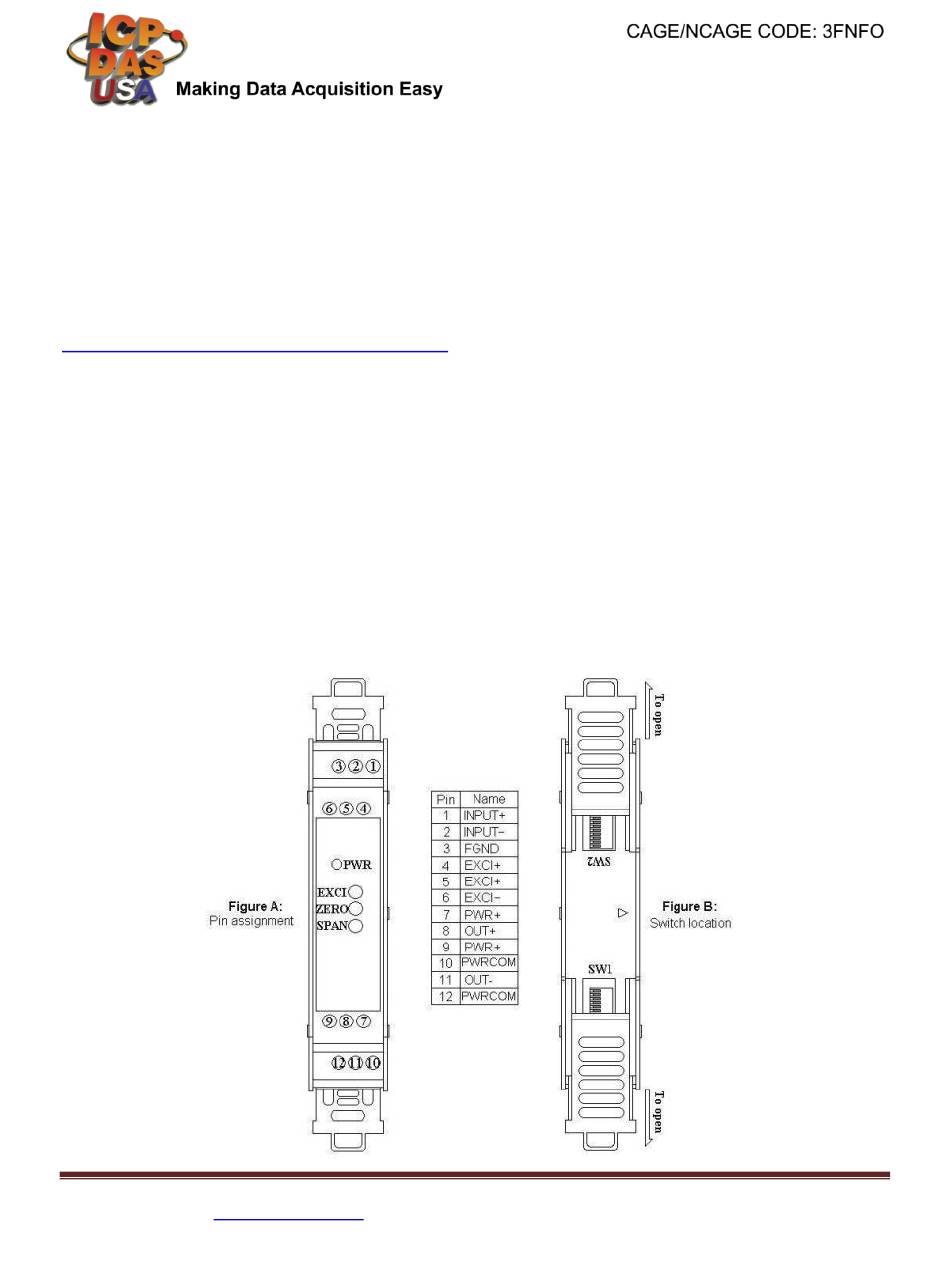

2. Pin Assignment

SG-3016 Voltage Input to Voltage/Current Output Signal Conditioner
ICP DAS USA, Inc. | www.icpdas-usa.com
SG-3016
Signal Conditioner
Quick Start Guide
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
- QuickStart (Feb/2016)
