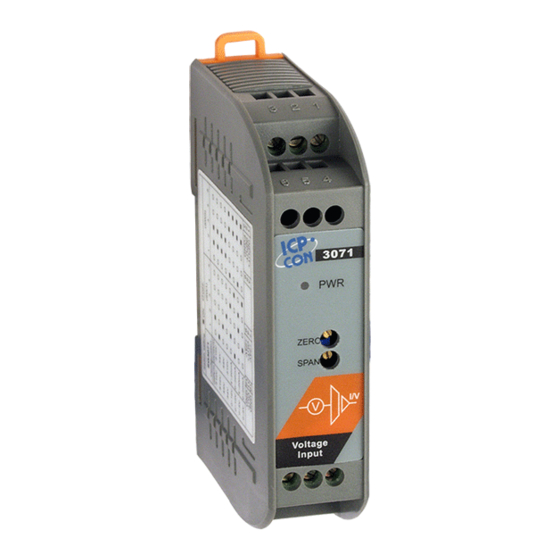

SG-3071 Isolated Voltage Input/Output Module
Introduction
The SG-3071 is a voltage input to voltage or current output signal conditioning module. It has
3000Vdc three-way isolation for input, output and power. And can change the input/output
range via internal configuration switches.
The SG-3071 has an LED display to show whether the SG-3071 is functioning correctly and
has two VRs (Zero, Span) to calibrate the input/output range accuracy.
The bandwidth of the SG-3071 is typically 3KHz. It's easy to mount the SG-3071 on a standard
DIN rail and can operate in environments with wide temperature range.
Specifications
Voltage input:
Bipolar: ±5V, ±10V
Unipolar: 0~5V, 0~10V
Input impedance: 2MΩ
Input bandwidth: 3KHz (typical)
＠-3dB
Voltage output:
Bipolar: ±5V, ±10V
Drive: 10mA (max.)
Output impedance: <50Ω
Current Output:
Current: 0 ~ 20mA, 4 ~ 20mA
Current load resistor: 0～500 Ω (Source)
General
Isolation (three-way): 3000Vdc
Accuracy: ±0.1% of full range (typical)
Operation temperature range:-25°C～75°C
Storage temperature range:-30°C～85°C
Operation bandwidth: 3KHz
Weight: 94 gram
Supply Voltage
Input Range: 10~30Vdc
@24Vdc (Typical)
Consumption: 1.80W (voltage output)
2.30W (current output)
User's Manual
1
Advertisement
Table of Contents
Related Manuals for ICP DAS USA SG-3071
Summary of Contents for ICP DAS USA SG-3071
- Page 1 The SG-3071 has an LED display to show whether the SG-3071 is functioning correctly and has two VRs (Zero, Span) to calibrate the input/output range accuracy. The bandwidth of the SG-3071 is typically 3KHz. It’s easy to mount the SG-3071 on a standard DIN rail and can operate in environments with wide temperature range.
- Page 2 Configuration The terminal wiring for the SG-3071 is shown in Figure A. Positive power terminals pins 7 and 9 are internally connected, as are negative pins 10 and 12. Power can be connected through the adjacent modules, making wiring much easier. The SG-3071 uses a power input range of 10~30Vdc.
- Page 3 Table 1: Input to output range (SW1、2) ＊Factory default setting Calibration Procedure 1. Refer to figure C to adjust the offset value. (1) Connect pin7 to the +24Vdc connection and pin 10 to GND. (2) Connect pin8 and pin 11 to the meter. (3) Use wire to connect pins 1 and 2.
- Page 4 (4) Changing the SW1 and SW2 depends on your input/output range. Watch the value of the meter and adjust the VR1 (ZERO) value to the minimum value of this range. 2. Refer to figure D to adjust the gain value. (1) Connect pin7 to the +24Vdc connection and pin 10 to GND.
- Page 5 Dimensions...
