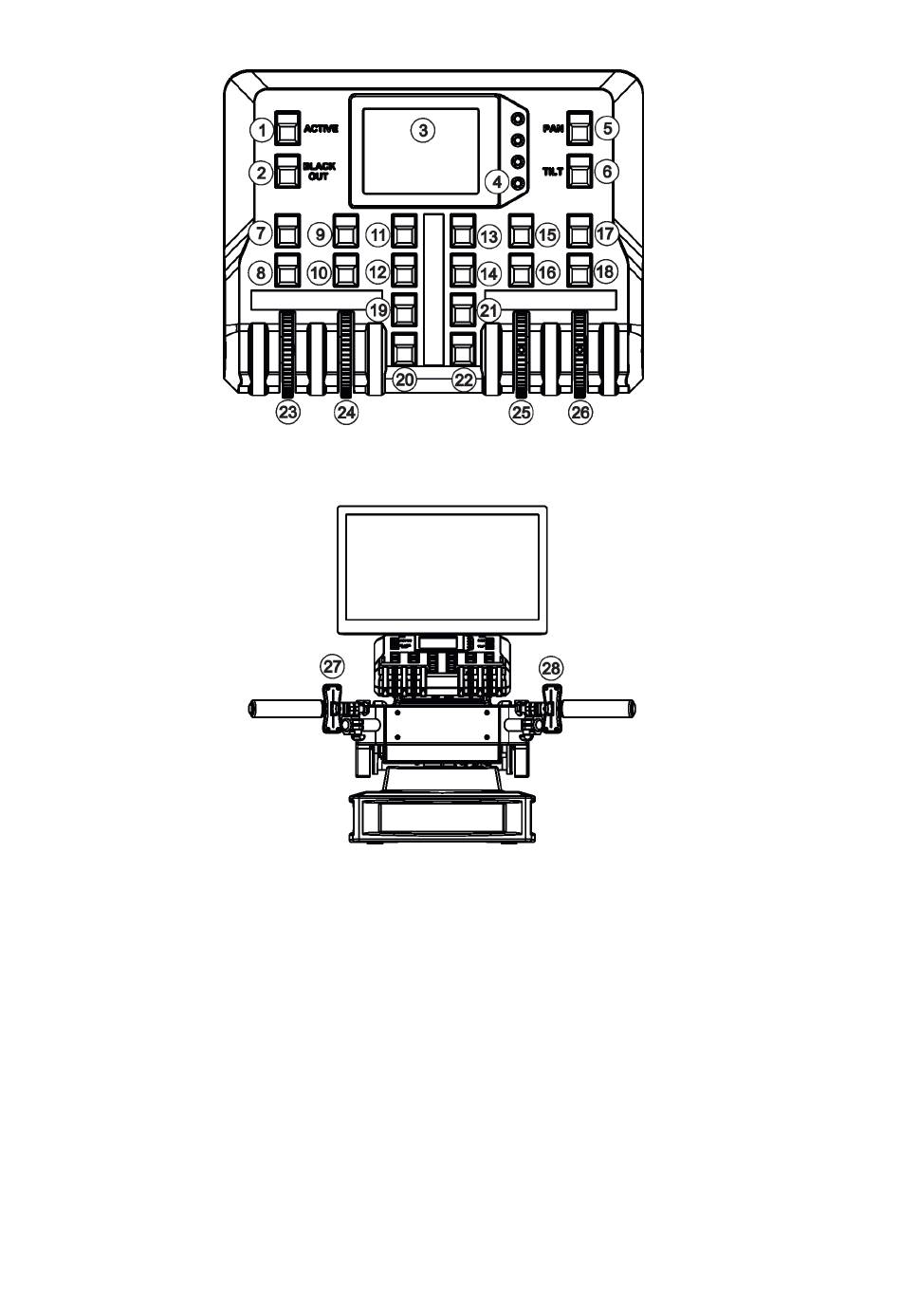

2.2 FollowSpot Controller

1 - Activation button (actives
the FollowSpot Controller)
2 - BlackOut button
3 - Graphic touch screen
4 - Switch On screen button
5 - Pan button(enables/disables
pan motor)
6 - Tilt button(enables/disables
tilt motor)
7 - Preset button
8 - Activation button for jog-wheel
9 - Preset button
10 - Activation button for jog-wheel (24)
11 - Preset button
12 - Preset button
13 - Preset button
14 - Preset button
15 - Preset button
16 - Activation button for jog-wheel (25)
17 - Preset button
18 - Activation button for jog-wheel (26)
19 - Preset button
20 - Preset button
21 - Preset button
22 - Preset button
23 - Jog-wheel
24 - Jog-wheel
25 - Jog-wheel
26 - Jog-wheel
27 - left Fader
28 - Right Fader
