2. Description of the the RoboSpot

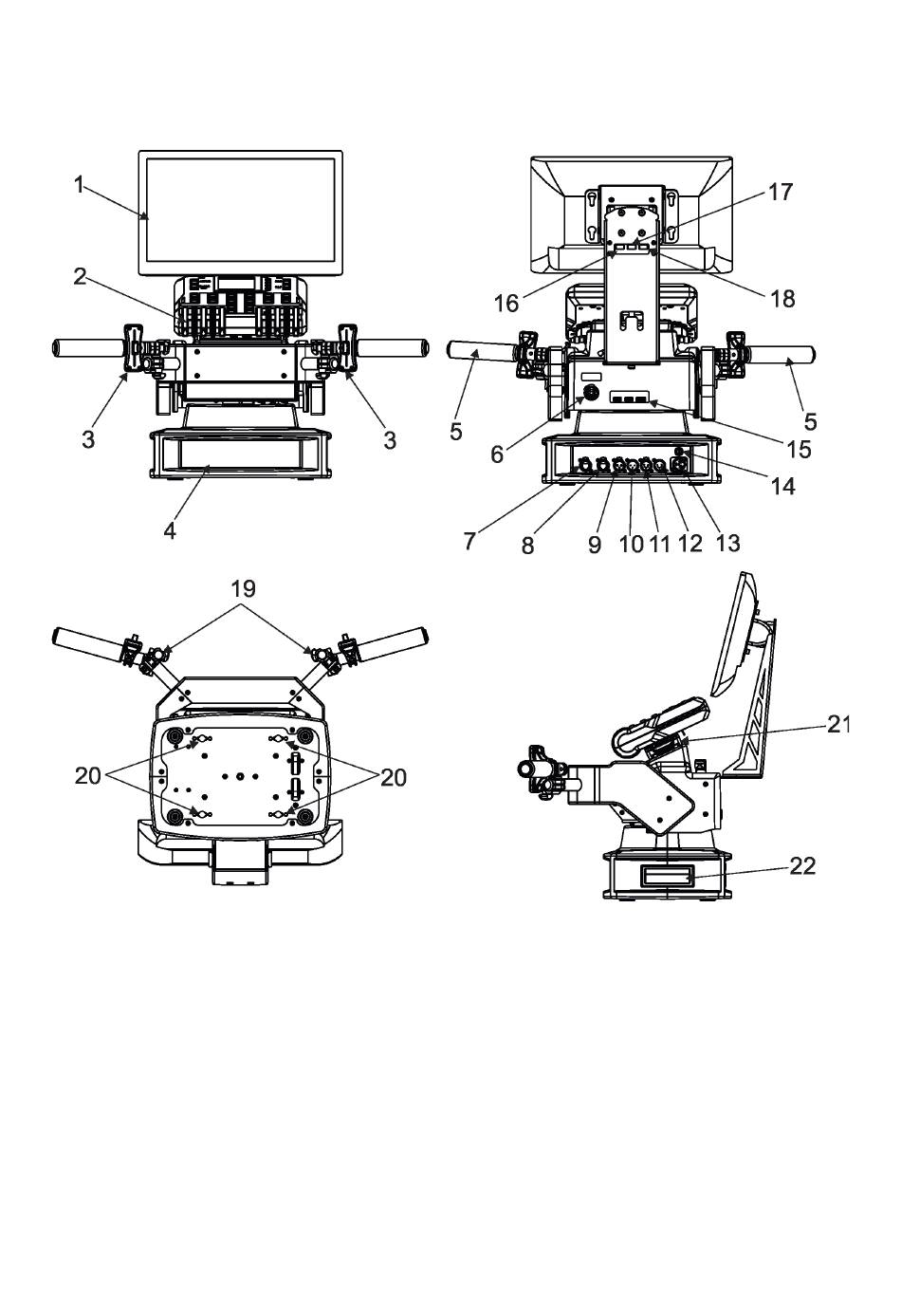

2.1 RoboSpot

1 - Monitor installed on the monitor holder
2 - FollowSpot Controller
3 - Faders
4 - Base
5 - Control handlebars
6 - Monitor supply
7 - Camera IN/Update (RJ45)
8 - Ethernet (RJ45)
9- (DMX Out (3-pin XLR)
10 - (DMX In (3-pin XLR)
11- (DMX Out (5-pin XLR)
12 - (DMX In (5-pin XLR)
13 - Power (Neutrik PowerCon)
14 - Fuse holder
15 - HDMI output for monitor + 2 x USB
16 - Input for USB lamp (+5V/50mA)
17 - USB (50mA)
18 - Input for USB lamp (+5V/50mA)
19 - Adjusting locks for handles
20 - Apertures for 1/4 turn locks
21 - Base of the FollowSpot Controller
22 - Manipulation handles
