5.3 LCD monitor screen

The RoboSpot is equipped with the 15.6" (10-point) touch screen with max. resolution 1366 x 768.
After switching the RoboSpot and the ROBIN BMFL FollowSpot with camera (or the RoboSpot MotionCamera)
on, image scanned by the camera is displayed on the LCD screen.
Touch the red cross and move
the positioning circle to desired
position on the screen.

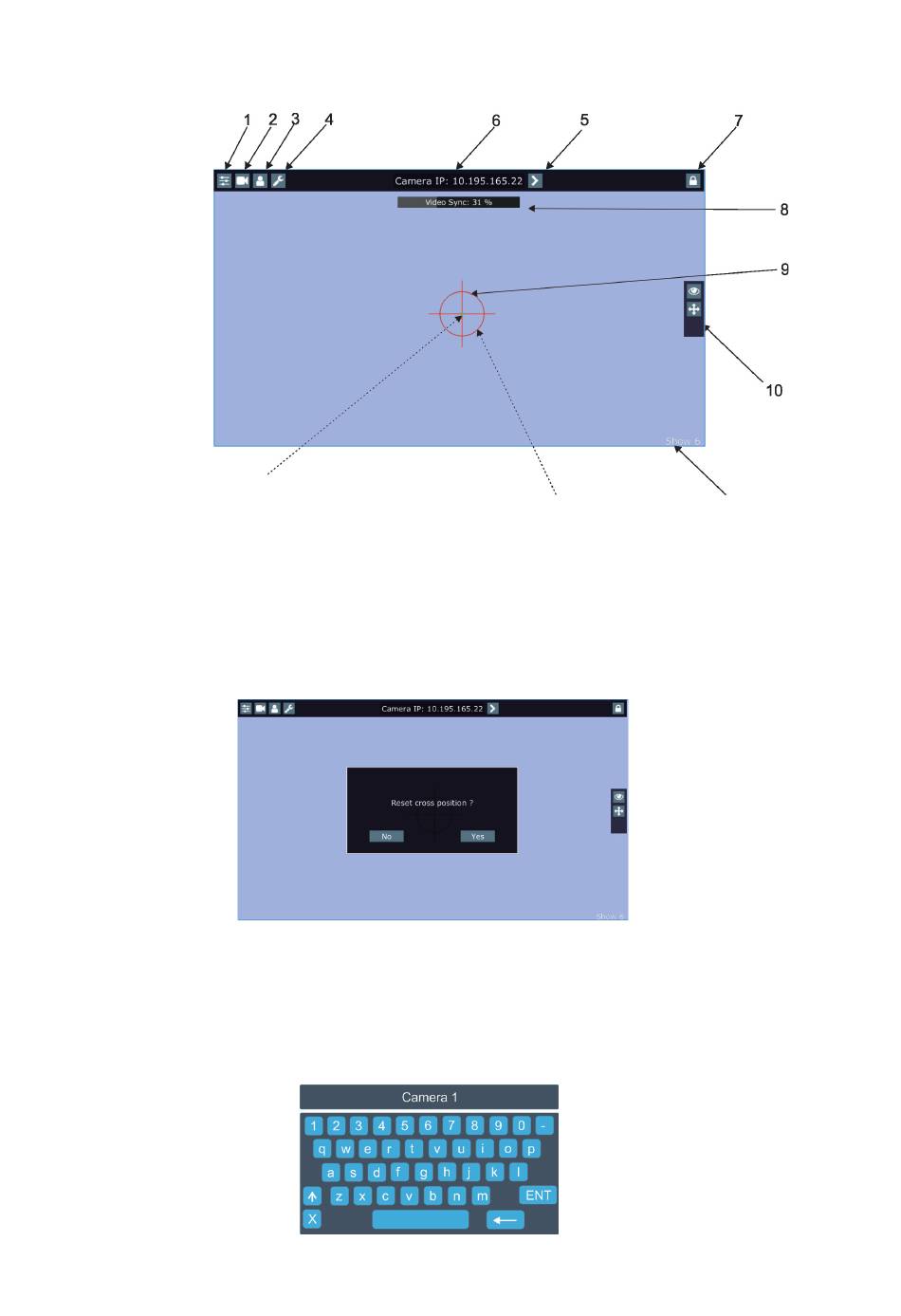

1- Slider button
2- Camera button
3- User button
4- Service button
5 - Camera selection buttons
To centre the positioning circle on the screen, touch the red cross it until the following dialog box will appear:
Select option Yes and the position circle will be placed to the centre of the screen.
*You can change the name of selected camera. To rename selected camera, touch for two seconds the camera
name (e.g. Camera IP: 10.195.164.171).
The software touch keyboard will appear. Use the keyboard to type a new name of camera (e.g. Camera 1).
Touch ENT to save the new name of the camera. The new name is saved into camera (in case that you will
use other Robospot, the new camera name will be reloaded)
Touch the key X to close the keyboard.
**When you switching between cameras, a box with video synchronization status is displayed. This box shows
a delay between the camera and the screen. The value 0% means max. delay, 100% is without delay (and this
box will disappear from the screen after reaching 100%).
Touch the edge of the positioning circle
and move it in/out to decrease/increase
the size of the circle
6- IP address of selected camera*
7- Screen lock***
8- Video synchronization box**
9 - Position circle (red)
10 - Action toolbar
16
Current scene
