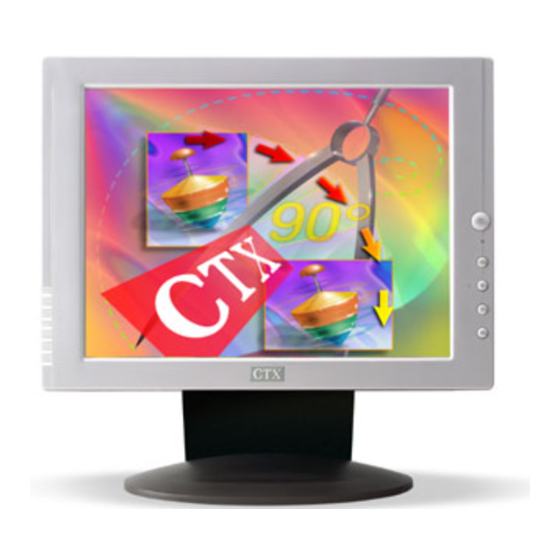

PV520A User's Manual
U s e r ' s
M a n u a l
P V 5 2 0 A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV520A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTX PV520A

Summary of Contents for CTX PV520A

  • Page 1 PV520A User’s Manual U s e r ’ s M a n u a l P V 5 2 0 A...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Instructions Introduction Recommended Use of the Monitor Controls and Adjustments Energy Declaration Trouble Shooting Technical Information Product Overview Specifications PV520A User’s Manual...

  • Page 3: Important Safety Instructions

    I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CE Statement his device complies with the requirements of EMC (Electromagnetic Compatibility), and with Low Voltage directive. PV520A User’s Manual...
  • Page 4 PV520A User’s Manual TCO'99 CO99 compliant monitors must be compliant with TCO99 which is more stringent than MPRII. The purchase of TCO99 compliant monitors contributes to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 5 PV520A User’s Manual The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

  • Page 6: Safety Precautions

    PV520A User’s Manual Cadmium** Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.
  • Page 7 The Monitor has been dropped or the case has been damaged. 8. For use only with power supply: • Li Shin(LSE) LSE9901B1250 • Portrans UP06031120A • Lien Chang BSA-35-115 Notice : Actual safety specifications please refer to the label on the back of monitor. PV520A User’s Manual...

  • Page 8: Introduction

    Direct RGB input • XGA 1024x768 resolution, up to 16.7M colors • Lightweight compact design, weighing less than 6.5Kg • DPMS (power saving) • Universal adapter power supply • Anti-glare display • On-Screen Display (OSD) controls and adjustments PV520A User’s Manual...

  • Page 9: Package Overview

    3.5 mm Audio Cable Speaker Box CAUTION : Keep the shipping carton in case the need arises to store or transport the unit. Let the LCD lie on its face when you put it into the carton. PV520A User’s Manual...
  • Page 10 PV520A User’s Manual Installation & Remove 1-1. Installing the Portrait 1-2. Remove the Portrait...
  • Page 11 PV520A User’s Manual 2-1. Installing the Wall Mount dapter* 2-2. Remove the Wall Mount Adapter* * The Wall Mount Adapter is a optional item.
  • Page 12 2. Connect (1) the video signal cable of the monitor to the 15-pin connector of the video port in your computer. 3. With the monitor switched off, attach (2) the power cord to the monitor and then to a grounded power outlet. PV520A User’s Manual...
  • Page 13 (such like connector of the sound card in the PC). 5. Connect to the earphone plug-in if you need this device. 6. Turn on the monitor and computer. 7. If necessary, adjust the front panel controls according to your personal preference. PV520A User’s Manual...

  • Page 14: Recommended Use Of The Monitor

    PV520A User’s Manual Recommended Use of the Monitor Power Use the type of power indicated on the marking label. Plugs Do not remove any of the prongs of the monitor's three-pronged power plug. Disconnect the power plug from the AC outlet if you are not going to use it for an indefinite period of time.
  • Page 15 PV520A User’s Manual Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. Environment Place the monitor on a flat level surface. Place the monitor in a well-ventilated place.

  • Page 16: Controls And Adjustments

    PV520A User’s Manual Controls and Adjustments nce you have installed this monitor with your system, please read the instructions in this section, they give you some guidelines on how to use the monitor more efficiently. And lead you through the various functions of the user controls and explain how to adjust the monitor to your personal preference.
  • Page 17 PV520A User’s Manual (1) Enter " " button To display the OSD manual and select functions. (2) Down " " button To adjust the selected OSD function or the brightness directly. (3) Up " " button To adjust the selected OSD function or the contrast directly.
  • Page 18 " ESC" button to exit. Contrast Press the " " button to enter the contrast, and press the " " or " " button to increase or decrease the contract level, then press " ESC" button to exit. 1. Auto-Tune PV520A User’s Manual...
  • Page 19 For the adjustment, please execute the program, then processing the "Auto Tune" function in the OSD menu. 2. Color You can choose either the 6500°K, 9300°K colour temperature mode or User mode to store your user defined color settings. User Mode PV520A User’s Manual...
  • Page 20 Press the " " or " " button to adjust the focus of the screen with the resolution is lower than 1024x768. • Dither: Press the " " or " " button to enable true color. PV520A User’s Manual " enter the "...
  • Page 21 Press the " " or " " button to select VGA Text mode 720x400 & 720x350 or VGA Graphics mode 640x400 & 640x350 to get better picture performance. 4. Position To adjust the Image or OSD position. PV520A User’s Manual...
  • Page 22 Press the " " or " " button to select between English, French, Italian, Spanish or German languages. 6. Recall Press the " " or " " button to select "Yes" or "No". Choosing Recall to callback all the settings for the current Input Signal mode to factory preset. PV520A User’s Manual...

  • Page 23: Energy Declaration

    2. Power Consumption (120/230 Vac)) (Without Audio) NUTEK Normal operation Power Saving Position A1 Power Saving Position A2 V. sync Video Blank Blank Blank VESA state indicator Consumption Green Suspend Amber Amber PV520A User’s Manual State Stand-by Suspend Power < 35W < 5W < 5W...

  • Page 24: Trouble Shooting

    1024 x 768. Use "Size" to make an adjustment. Check and reconfigure the display mode of the vertical refresh rate of your graphic card to make it compatible with the LCD display. PV520A User’s Manual...
  • Page 25 When the input signal is outside the normal specifications the screen will display an "Signal out of Range" message. The "No Signal Input" message indicates that the cable may not be plugged property into the host system. PV520A User’s Manual...

  • Page 26: Technical Information

    Pin Assignments Male Mini D-15 Connector Signal Red Video Green Video Blue Video Horizontal Sync Vertical Sync Ground No Connection SDA (DDC) SCL (DDC) 15 Pin Mini D-Sub 5, 6, 7, 8, 10, 11 4, 9 PV520A User’s Manual...

  • Page 27: Video Modes

    (Hz) 31.470 70.000 IBM VGA 31.469 70.000 IBM VGA 31.470 59.940 IBM VGA 37.861 72.000 VESA 37.500 75.000 VESA 37.879 60.000 VESA 48.077 72.000 VESA 46.880 75.000 VESA 48.363 60.000 VESA 56.476 70.000 VESA 60.020 75.000 VESA PV520A User’s Manual...

  • Page 28: Product Overview

    PV520A User’s Manual Product Overview Pivot Function You can turn the LCD panel right 90 degree for particular viewing. Front View (unit: mm)
  • Page 29 PV520A User’s Manual Side View (unit: mm) For viewing clarity, you can tilt the LCD panel forward (up to 5 degrees) or backward (up to 20 degrees) Rear View (unit: mm)

  • Page 30: Specifications

    Plug & Play DDC 1/2B [ Dimension & Weight ] 15" (38.1cm diagonal) XGA 1024x768 16.7M True color 250 Cd/m2 (typical) 350:1 (typical) 40ms 1V(RMS), Max. 1W X 2 Power/Enter/Up/Down/Esc/Volume 35W Max. <5W Power Saving (Without Audio) PV520A User’s Manual...
  • Page 31 [ Operating Environment ] 5°C ~ 35°C Temperature 20% ~ 80% (non-condensing) Humidity 10,000ft Altitude [ Storage Environment ] -20°C ~ 60°C Temperature 10% ~ 90% (non-condensing) Humidity Altitude 40,000ft Note: Specifications are subject to change without notice PV520A User’s Manual...
