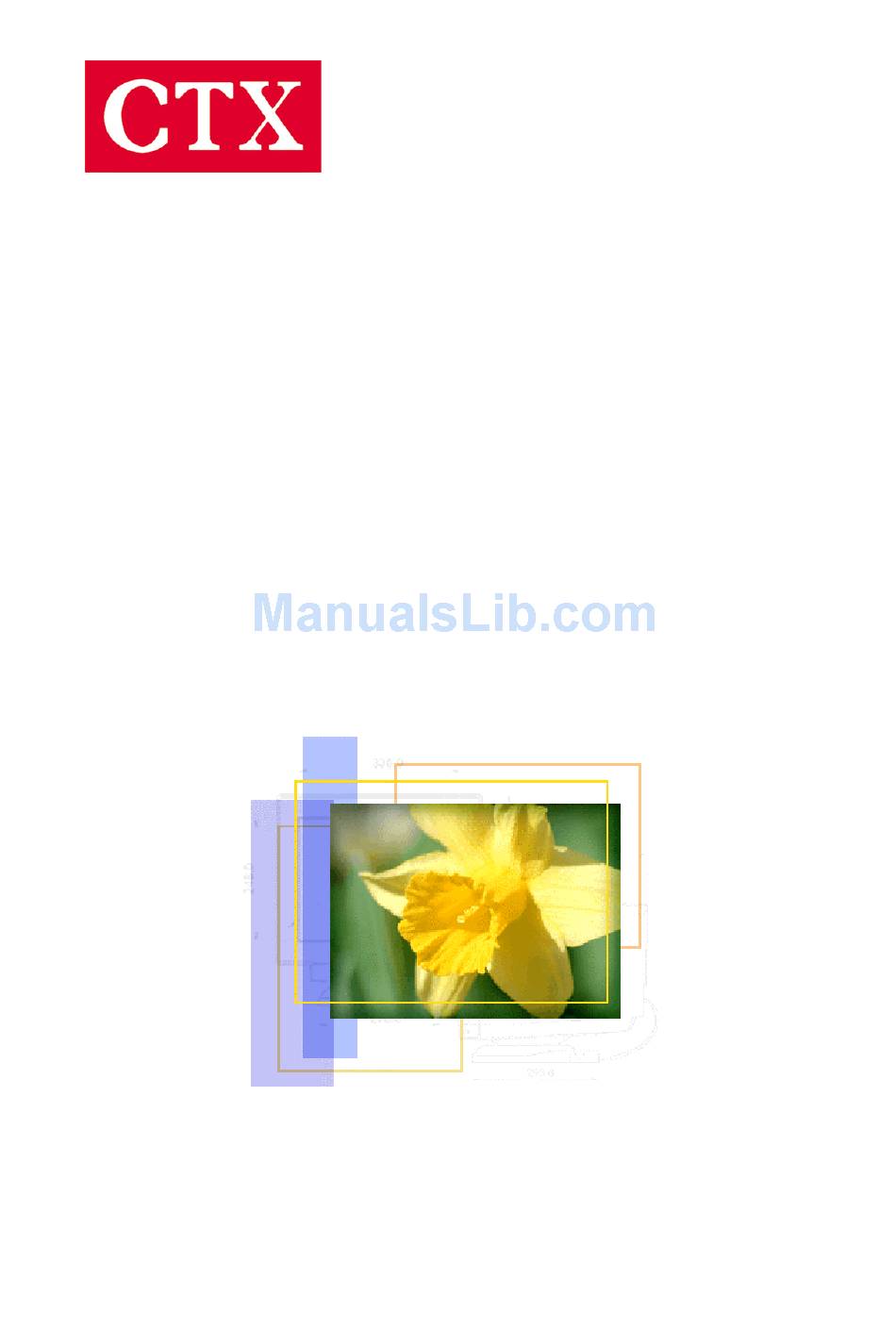

- Page 1 PV505 User’s Manual U s e r ’ s M a n u a l P V 5 0 5...
-
Page 2: Table Of Contents
Table of Contents 1. Important Safety Instructions 2. Introduction 3. Recommended Use of the Monitor 4. Controls and Adjustments 5. Energy Declaration 6. Trouble Shooting 7. Technical Information 8. Product Overview Specifications PV505 User’s Manual... -
Page 3: Important Safety Instructions
Consult the dealer or an experienced radio/TV technician for help. Warning: If a shielded-type power cord is supplied with this monitor, it is required in order to meet FCC emission limits and to prevent interference with nearby radio and television reception. Only shielded cables should be used to connect I/O devices to this equipment. - Page 4 PV505 User’s Manual TCO'99 CO99 compliant monitors must be compliant with TCO99 which is more stringent than MPRII. The purchase of TCO99 compliant monitors contributes to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
- Page 5 PV505 User’s Manual The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.
-
Page 6: Safety Precautions
This manual should be retained for future reference. 1. To clean the LCD Monitor screen make sure the Monitor is in the power off mode. Unplug the Monitor from its power source before cleaning it. Stand away from the LCD Monitor and spray cleaning solution onto a rag. - Page 7 Servicing of any nature should only be performed by an authorised technician. 6. Safe storage of the LCD Monitor is in a range of minus 20 to plus 65 degrees Celsius. Storing your LCD Monitor outside this range could result in permanent damage.
-
Page 8: Introduction
Introduction Product Description ongratulations on purchasing this new generation monitor. Your LCD monitor incorporates high quality display into a small lightweight module. It has power- saving capabilities and emits no X-ray radiation. he features are: • 15" TFT Liquid Crystal Display •... -
Page 9: Package Overview
Power Cord Power Adapter VGA Signal Cable CAUTION Keep the shipping carton in case the need arises to store or transport the unit. Let the LCD lie on its face when you put it into the carton. PV505 User’s Manual... - Page 10 PV505 User’s Manual Installation & Remove 1-1. Installing the Portrait...
- Page 11 PV505 User’s Manual 1-2. Remove the Portrait...
- Page 12 PV505 User’s Manual 2-1. Installing the Wall Mount Adapter*...
- Page 13 PV505 User’s Manual 2-2. Remove the Wall Mount Adapter* * The Wall Mount Adapter is a optional item.
-
Page 14: Recommended Use Of The Monitor
Ensure that the total ampere ratings on all units plugged into the extension cord is not above the cord's rating. If the power supply cord which came with your monitor is to be connected to the PC instead of the wall outlet, this equipment should be used with UL/TUV approved computers with receptacle rated 100~240V AC, 50/60Hz, 1.0A... - Page 15 Environment Place the monitor on a flat level surface. Place the monitor in a well-ventilated place. Keep the monitor away from: rain or water overly hot, cold or humid places sunlight dusty surroundings equipment that generates strong magnetic fields.
-
Page 16: Controls And Adjustments
PV505 User’s Manual Controls and Adjustments nce you have installed this monitor with your system, please read the instructions in this section, they give you some guidelines on how to use the monitor more efficiently. And lead you through the various functions of the user controls and explain how to adjust the monitor to your personal preference. - Page 17 To turn the monitor On or Off. (6) Power LED Indicator As long as the monitor is powered, this indicator is lit. In normal operation, it lights green. While in power saving mode, the indicator will turn to amber. On Screen Display (OSD) Main menu 1.
- Page 18 As some VGA Card doesn't match the VESA standard. It can't out-put 0.7 V p-p VESA standard. Therefore, we need "ADVANCE AUTO TUNE PATTERN PROGRAM" to modify the parameters of monitor to match different output level of VGA card. •...
- Page 19 Press " " button to enter User mode. • Press the " " or " " button to select the R/G/B gain, then press " button to proceed. • Finally, press "ESC" button to leave this function. PV505 User’s Manual "...
- Page 20 Press the " " or " " button to enable true color. • Text/Gfx (Graphics): Press the " " or " " button to select VGA Text mode 720x400 & 720x350 or VGA Graphics mode 640x400 & 640x350 to get better picture performance. PV505 User’s Manual " enter the...
- Page 21 V - Position: Press the" " button to moves the picture or the OSD window upwards and " " to move them downwards. • Center: The Image or OSD window will be adjusted automatically on center of the screen. PV505 User’s Manual...
- Page 22 PV505 User’s Manual 5. Language Press the " " or " " button to select between English, French, Italian, Spanish or German languages. 6. Recall Press the " " or " " button to select "Yes" or "No". Choosing Recall to callback all the settings for the current Input Signal mode...
-
Page 23: Energy Declaration
Energy Declaration his monitor is equipped with a function for saving energy, which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer, which also supports the VESA DPMS standard to fulfill the requirements of the NUTEK specification 803299/94/96. -
Page 24: Trouble Shooting
Image has vertical line bars Check if the monitor is turned on. Turn off the power and check the monitor power cord and signal cable are properly connected. Refer to the Controls and Adjustments section to adjust the brightness (BRIGHTNESS on the OSD sub-menu.) . - Page 25 "Unsupported Mode " message. No Signal Input The "No Signal Input" message indicates that the cable may not be plugged property into the host system. WARNING: Do not disassemble the monitor. Contact your dealer if needed. PV505 User’s Manual...
-
Page 26: Technical Information
Technical Information Compatibility his LCD monitor supports multiple operating platforms such as IBM compatible computers. This section provides you with detailed information on pin assignment of the D-Sub connector and the preset timing chart of the prevailing video standards. Pin Assignments... -
Page 27: Video Modes
(Hz) 31.470 70.000 IBM VGA 31.469 70.000 IBM VGA 31.470 59.940 IBM VGA 37.861 72.000 VESA 37.500 75.000 VESA 37.879 60.000 VESA 48.077 72.000 VESA 46.880 75.000 VESA 48.363 60.000 VESA 56.476 70.000 VESA 60.020 75.000 VESA PV505 User’s Manual... -
Page 28: Product Overview
PV505 User’s Manual Product Overview Pivot Function You can turn the LCD panel right 90 degree for particular viewing. Front View (unit: mm) - Page 29 PV505 User’s Manual Side View (unit: mm) For viewing clarity, you can tilt the LCD panel forward (up to 5 degrees) or backward (up to 20 degrees) Rear View (unit: mm)
-
Page 30: Specifications
Analog 0.7V peak to peak separate TTL Positive or Negative Input signal 100~240 VAC, 50/60 Hz (automatically) Power Supply VESA DDC 1/2B Plug & Play [ Dimension & Weight ] Size (WxDxH) 378x173.5x418 mm Weight (net) 6.2 Kgs/13.7 Lbs PV505 User’s Manual... - Page 31 [ Operating Environment ] Temperature 5°C ~ 35°C Humidity 20% ~ 80% (non-condensing) Altitude 10,000ft [ Storage Environment ] Temperature -20°C ~ 60°C Humidity 10% ~ 90% (non-condensing) Altitude 40,000ft Note: Specifications are subject to change without notice PV505 User’s Manual...
