PV720A User's Manual
U s e r ' s
M a n u a l
P V 7 2 0 A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV720A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTX PV720A

Summary of Contents for CTX PV720A

  • Page 1 PV720A User’s Manual U s e r ’ s M a n u a l P V 7 2 0 A...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Instructions Introduction Recommended Use of the Monitor Controls and Adjustments Energy Declaration Trouble Shooting Technical Information Product Overview Specifications PV720A User’s Manual...

  • Page 3: Important Safety Instructions

    I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CE Statement his device complies with the requirements of EMC (Electromagnetic Compatibility), and with Low Voltage directive. PV720A User’s Manual...
  • Page 4 PV720A User’s Manual TCO'99 CO99 compliant monitors must be compliant with TCO99 which is more stringent than MPRII. The purchase of TCO99 compliant monitors contributes to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 5 PV720A User’s Manual The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

  • Page 6: Safety Precautions

    PV720A User’s Manual Cadmium** Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.
  • Page 7 FSP Electronic Co., Ltd. Type: FSP040-1AD101 • Linearity Electronic Co., Ltd. Type: LAD6019AB4 • Li shin International Enterprise Corp. Type: LSE9901B1250 • LIEN CHANG Corp. Type LA-40M-112 Notice : Actual safety specifications please refer to the label on the back of monitor. PV720A User’s Manual...

  • Page 8: Introduction

    SXGA 1280x1024 resolution • Lightweight compact design, weighing less than 7.5Kg • DPMS (power saving) • Universal adapter power supply • Anti-glare display • On-Screen Display (OSD) controls and adjustments Package Overview our monitor package contains: LCD Monitor PV720A User’s Manual...
  • Page 9 Keep the shipping carton in case the need arises to store or transport the unit. Let the LCD lie on its face when you put it into the carton. User's Guide / Driver CD Power Cord Power Adapter D-Sub 15 VGA Signal Cable 3.5 mm Audio Cable Speaker Box PV720A User’s Manual...
  • Page 10 PV720A User’s Manual Installation & Remove 1-1. Installing the Portrait 1-2. Remove the Portrait...
  • Page 11 PV720A User’s Manual 2-1. Rotating to the mode "Portrait" (vertical orientation) 3-1. Installing VESA-compliant Connecting Device* This product provides square screw holes that conform to 100mm*100mm VESA-compliant connection interface.
  • Page 12 2. Connect (1) the video signal cable of the monitor to the 15-pin connector of the video port in your computer. 3. With the monitor switched off, attach (2) the power cord to the monitor and then to a grounded power outlet. PV720A User’s Manual...
  • Page 13 PC). 5. Connect to the earphone plug-in if you need this device. 6. Turn on the monitor and computer. 7. If necessary, adjust the front panel controls according to your personal preference. PV720A User’s Manual...

  • Page 14: Recommended Use Of The Monitor

    PV720A User’s Manual Recommended Use of the Monitor Power Use the type of power indicated on the marking label. Plugs Do not remove any of the prongs of the monitor's three-pronged power plug. Disconnect the power plug from the AC outlet if you are not going to use it for an indefinite period of time.
  • Page 15 PV720A User’s Manual Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. Environment Place the monitor on a flat level surface. Place the monitor in a well-ventilated place.

  • Page 16: Controls And Adjustments

    PV720A User’s Manual Controls and Adjustments nce you have installed this monitor with your system, please read the instructions in this section, they give you some guidelines on how to use the monitor more efficiently. And lead you through the various functions of the user controls and explain how to adjust the monitor to your personal preference.
  • Page 17 PV720A User’s Manual (1) Enter " " button To display the OSD manual and select functions. (2) Down " " button To adjust the selected OSD function or the brightness directly. (3) Up " " button To adjust the selected OSD function or the contrast directly.
  • Page 18 " ESC" button to exit. Contrast Press the " " button to enter the contrast, and press the " " or " " button to increase or decrease the contract level, then press " ESC" button to exit. PV720A User’s Manual...
  • Page 19 PV720A User’s Manual 1. Volume Tuning Normal Mode Press " " to enter "Volume", and press " " or " " to adjust the volume. Power Saving Mode (when power indication lights amber) a. Mute Hot Key (when playing music) Press "ESC"...
  • Page 20 720x400 70Hz & 640x 350 70Hz under DOS mode adjustment. It will adjust the VGA input level and video quality to optimize. • For the adjustment, please execute the program, then processing the "Auto Tune" function in the OSD menu. PV720A User’s Manual...
  • Page 21 Press the " " or " " button to reduce the noise on the screen. Smoothing: Press the " " or " " button to select "Yes" or "No" to enable "smoothing". PV720A User’s Manual " button to roceed. " enter the item menu.
  • Page 22 " " to move them downwards. Center: The Image or OSD window will be adjusted automatically on center of the screen. 6. Language Press the " " or " " button to select between English, French, Italian, Spanish or German languages. PV720A User’s Manual...
  • Page 23 PV720A User’s Manual 7. Recall Press the " " or " " button to select "Yes" or "No". Choosing Recall to callback all the settings for the current Input Signal mode to factory preset.

  • Page 24: Energy Declaration

    2. Power Consumption (120/230 Vac)) (Without Audio) NUTEK Normal operation Power Saving Position A1 Power Saving Position A2 V. sync Video Blank Blank Blank VESA state indicator Consumption Green Suspend Amber Amber PV720A User’s Manual State Stand-by Suspend Power < 40W < 5W < 5W...

  • Page 25: Trouble Shooting

    The screen is blank. The screen flashes when it initializes. Partial image or incorrectly displayed image PV720A User’s Manual Check if the monitor is turned on. Turn off the power and check the monitor power cord and signal cable are properly connected.
  • Page 26 Signal out of Range No Signal Input WARNING: Do not disassemble the monitor. Contact your dealer if needed. PV720A User’s Manual Use "Clock" to make an adjustment. Check and reconfigure the display mode of the vertical refresh rate of your graphic card to make it compatible with the LCD display.

  • Page 27: Technical Information

    Pin Assignments Male Mini D-15 Connector Signal Red Video Green Video Blue Video Horizontal Sync Vertical Sync Ground No Connection SDA (DDC) SCL (DDC) 15 Pin Mini D-Sub 5, 6, 7, 8, 10, 11 4, 9 PV720A User’s Manual...

  • Page 28: Video Modes

    70.000 IBM VGA 31.470 59.940 IBM VGA 37.861 72.000 VESA 37.500 75.000 VESA 37.879 60.000 VESA 48.077 72.000 VESA 46.880 75.000 VESA 48.363 60.000 VESA 56.476 70.000 VESA 60.020 75.000 VESA 63.981 VESA 79.976 VESA 67.500 VESA PV720A User’s Manual...

  • Page 29: Product Overview

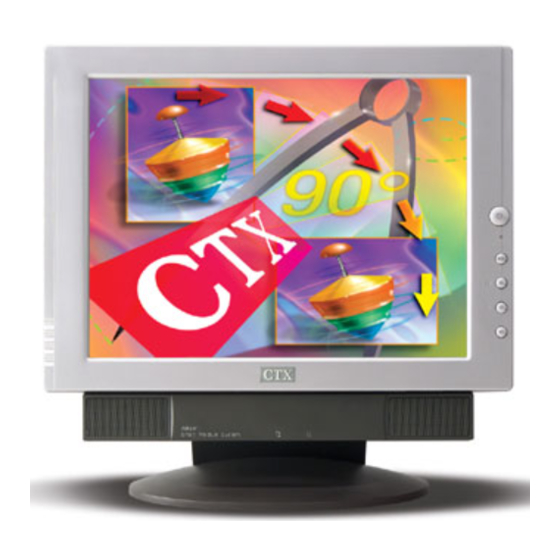

    PV720A User’s Manual Product Overview Pivot Function You can turn the LCD panel right 90 degree for particular viewing. Front View (unit: mm)
  • Page 30 PV720A User’s Manual Side View (unit: mm) For viewing clarity, you can tilt the LCD panel forward (up to 5 degrees) or backward (up to 20 degrees) Rear View (unit: mm)

  • Page 31: Specifications

    40 W Max. <5 W Power Saving Volume Tuning, Auto-Tune, Color, Quality, Position, Language, Recall Clock, Phase, Smoothing, Image Pos, OSD Pos Analog 0.7V peak to peak separate TTL Positive or Negative 100~240 VAC, 50/60 Hz (automatically) DDC 1/2B PV720A User’s Manual...
  • Page 32 [ Storage Environment ] Temperature Humidity Altitude Note: Specifications are subject to change without notice 438 x 166 x 447 mm 7.5 Kgs 5°C ~ 35°C 20% ~ 80% (non-condensing) 10,000ft -20°C ~ 60°C 10% ~ 90% (non-condensing) 40,000ft PV720A User’s Manual...
