CTX PV722E User Manual

Ctx monitor user's manual pv722e
Hide thumbs Also See for PV722E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
PV722E User's Manual
U s e r ' s
M a n u a l
P V 7 2 2 E
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV722E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTX PV722E

Summary of Contents for CTX PV722E

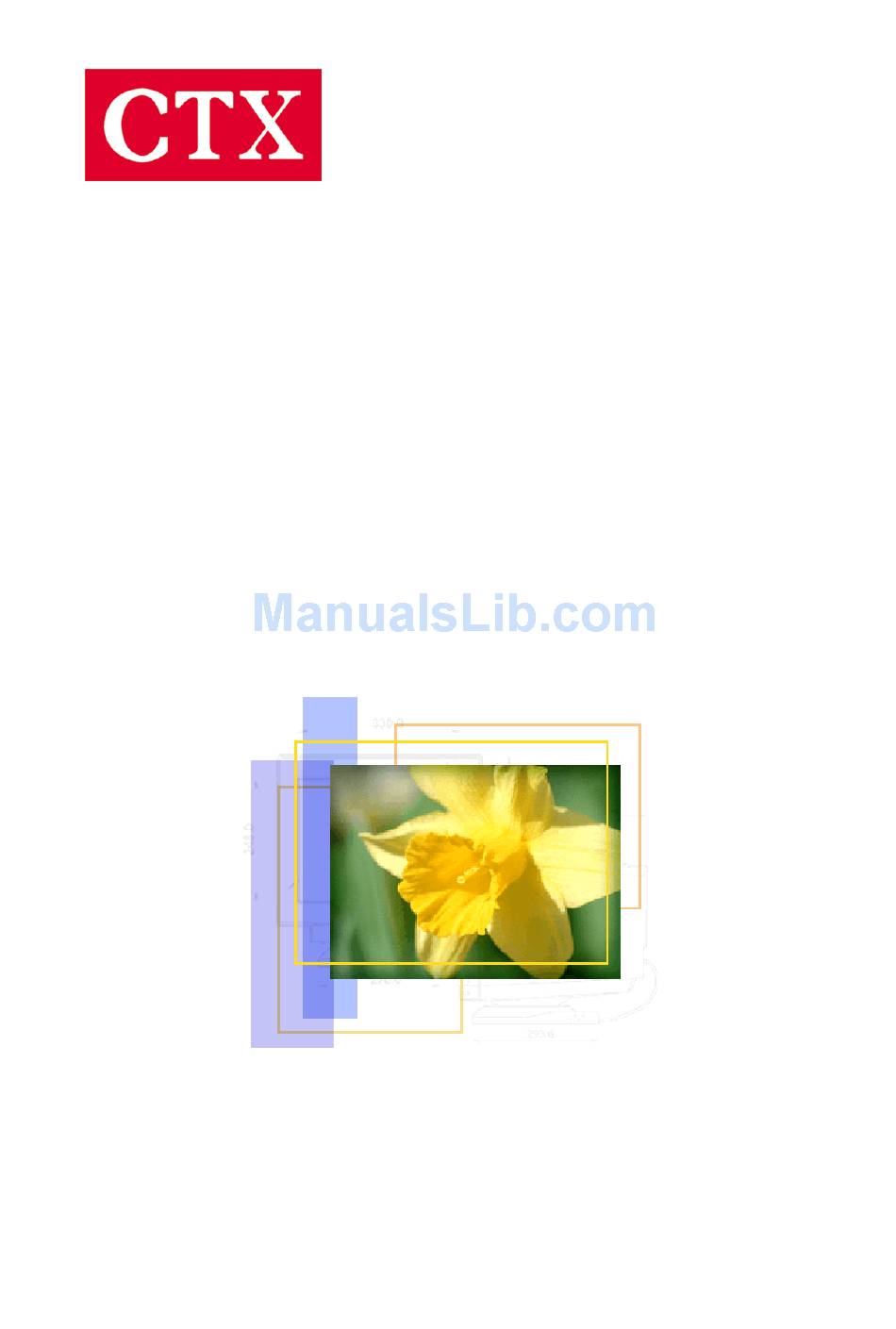

  • Page 1 PV722E User’s Manual U s e r ’ s M a n u a l P V 7 2 2 E...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Instructions Introduction Recommended Use of the Monitor Controls and Adjustments Energy Declaration Trouble Shooting Technical Information Product Overview Specifications PV722E User’s Manual...

  • Page 3: Important Safety Instructions

    I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CE Statement his device complies with the requirements of EMC (Electromagnetic Compatibility), and with Low Voltage directive. PV722E User’s Manual...
  • Page 4 PV722E User’s Manual TCO'99 CO99 compliant monitors must be compliant with TCO99 which is more stringent than MPRII. The purchase of TCO99 compliant monitors contributes to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 5 PV722E User’s Manual The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

  • Page 6: Safety Precautions

    PV722E User’s Manual Cadmium** Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.
  • Page 7 Linearity Electronic Co., Ltd. Type: LAD6019AB4 • Li Shin International Enterprise Corp. Type: LSE9901B1250 • Lice chang Co., Ltd. Type: LCA01F • Potrans Co., Ltd. Type: UP06081120 Notice : Actual safety specifications please refer to the label on the back of monitor. PV722E User’s Manual...

  • Page 8: Introduction

    DVI input SXGA 1280x1024 resolution Lightweight compact design, weighing less than 7.5Kg Compatible with DPMS (power saving) Universal adapter power supply 10. Anti-glare display 11. On-Screen Display (OSD) controls and adjustments 12. USB Hub inside High Quality Speaker PV722E User’s Manual...

  • Page 9: Package Overview

    Keep the shipping carton in case the need arises to store or transport the unit. Let the LCD lie on its face when you put it into the carton. LCD Monitor User's Guide / Driver CD Power Cord Power Adapter D-Sub 15 VGA Signal Cable DVI Cable USB Hub 3.5 mm Audio Cable Speaker Box PV722E User’s Manual...
  • Page 10 PV722E User’s Manual Installation & Remove 1-1. Installing the Portrait 1-2. Remove the Portrait...
  • Page 11 PV722E User’s Manual 2-1. Rotating to the mode "Portrait" (vertical orientation) 3-1. Installing VESA-compliant Connecting Device* This product provides square screw holes that conform to 100mm*100mm VESA-compliant connection interface. *User should prepare the connection device for VESA themselves.
  • Page 12 PV722E User’s Manual 4-1. Speaker Box Install 5-1. USB Hub Install...
  • Page 13 3. With the monitor switched off, attach (2) the power cord to the monitor and then to a grounded power outlet. 4. Connect (3) the DVI Cable of the monitor to the DVI connector of the DVI port in your computer. PV722E User’s Manual...
  • Page 14 PC). 6. Connect to the earphone plug-in if you need this device. 7. Turn on the monitor and computer. 8. If necessary, adjust the front panel controls according to your personal preference. PV722E User’s Manual...

  • Page 15: Recommended Use Of The Monitor

    PV722E User’s Manual Recommended Use of the Monitor Power Use the type of power indicated on the marking label. Plugs Do not remove any of the prongs of the monitor's three-pronged power plug. Disconnect the power plug from the AC outlet if you are not going to use it for an indefinite period of time.
  • Page 16 PV722E User’s Manual Environment Place the monitor on a flat level surface. Place the monitor in a well-ventilated place. Keep the monitor away from: rain or water overly hot, cold or humid places sunlight dusty surroundings equipment that generates strong magnetic fields.

  • Page 17: Controls And Adjustments

    Front User Controls (1) Enter " " button To display the OSD manual and select functions. (2) Down " " button To adjust the selected OSD function or the brightness directly. PV722E User’s Manual...
  • Page 18 PV722E User’s Manual (3) Up " " button To adjust the selected OSD function or the contrast directly. (4) "ESC" button To close the OSD manual and to escape function. (5) Power LED Indicator As long as the monitor is powered, this indicator is lit. In normal operation, it lights green.
  • Page 19 In Power Saving Mode, press " " or " " to enter the volume tuning window, and press " " or " " key to adjust the volume. After 6 seconds, the volume tuning window will close automatically. PV722E User’s Manual...
  • Page 20 • DOS_TUNE.EXE (This file includes in the folder "Auto_Tune" of CD Title "Interactive User's Manual") is used for 720x400 70Hz & 640x 350 70Hz under DOS mode adjustment. It will adjust the VGA input level and video quality to optimize. PV722E User’s Manual...
  • Page 21 " button to enter User mode. Press the " " or " " button to select the R/G/B gain, then press " roceed. Finally, press "ESC" button to leave this function. PV722E User’s Manual " button to proceed. " button to...
  • Page 22 V - Position: Press the" " button to moves the picture or the OSD window upwards and " " to move them downwards. Center: The Image or OSD window will be adjusted automatically on center of the screen. PV722E User’s Manual " enter the item menu.
  • Page 23 PV722E User’s Manual 5. Language Press the " " or " " button to select between English, Spanish, German, Italian or French languages. 6. Reset Press the " " or " " button to select "Yes" or "No". Choosing Reset to callback all the settings for the current Input Signal mode to factory preset.
  • Page 24 In Power Saving Mode, press " " or " " to enter the volume tuning window, and press " " or " " key to adjust the volume. After 6 seconds, the volume tuning window will close automatically. PV722E User’s Manual...
  • Page 25 " button to enter User mode. Press the " " or " " button to select the R/G/B gain, then press " roceed. Finally, press "ESC" button to leave this function. PV722E User’s Manual " button to proceed. " button to...
  • Page 26 V - Position: Press the" " button to moves the picture or the OSD window upwards and " " to move them downwards. Center: The Image or OSD window will be adjusted automatically on center of the screen. PV722E User’s Manual " enter the item menu.
  • Page 27 PV722E User’s Manual 4. Language Press the " " or " " button to select between English, Spanish, German, Italian or French languages. 5. Reset Press the " " or " " button to select "Yes" or "No". Choosing Reset to callback all the settings for the current Input Signal mode to factory preset.

  • Page 28: Energy Declaration

    70 minutes. Power Consumption (110/220 Vac) NUTEK Normal operation Power Saving Power Switch off VESA state LED indicator Green Amber PV722E User’s Manual Power Consumption < 56W < 6W (USB disable) < 3W...

  • Page 29: Trouble Shooting

    Image has vertical line bars Image has horizontal flickering lines Signal out of Range PV722E User’s Manual Check if the monitor is turned on. Turn off the power and check the monitor power cord and signal cable are properly connected.
  • Page 30 No Signal Input WARNING: Do not disassemble the monitor. Contact your dealer if needed. PV722E User’s Manual The "No Signal Input" message indicates that the cable may not be plugged property into the host system.

  • Page 31: Technical Information

    72.000 37.500 75.000 37.879 60.000 48.077 72.000 46.875 75.000 48.363 60.000 56.746 70.000 60.023 75.000 63.981 60.000 79.976 75.000 67.500 75.000 PV722E User’s Manual Standard IBM VGA IBM VGA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA...
  • Page 32 T.M.D.S. Data 5+ T.M.D.S. Clock +5V Power Ground (for +5V) T.M.D.S. Clock+ Hot Plug Detect T.M.D.S. Clock- Horizontal Refresh Rate Frequency (Hz) (KHz) 31.469 59.940 37.879 60.000 48.363 60.000 63.981 60.000 PV722E User’s Manual Shield Shield Standard IBM VGA VESA VESA VESA...

  • Page 33: Product Overview

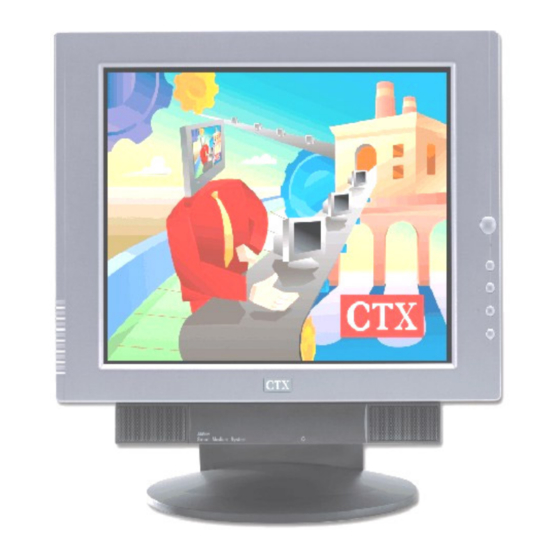

    PV722E User’s Manual Product Overview Pivot Function You can turn the LCD panel right 90 degree for particular viewing. Front View (unit: mm)
  • Page 34 PV722E User’s Manual Side View (unit: mm) For viewing clarity, you can tilt the LCD panel forward (up to 5 degrees) or backward (up to 20 degrees) Rear View (unit: mm)

  • Page 35: Specifications

    Analog 0.7V peak to peak separate TTL Positive or Negative Input Signal(DVI) DVI Rev.1 TMDS 165MHz 1-Channel Power Supply 100~240 VAC, 50/60 Hz (automatically) Plug & Play(D-15 Analog) DDC 1/2B Plug & Play(DVI) DDC 2B+ 17" TFT LCD module with wide-viewing angle, 0.264(H)x0.264 (V)mm pixel PV722E User’s Manual...
  • Page 36 PV722E User’s Manual [ Audio ] Audio Input 1V(p-p), Max. Audio Output 1W X 2(RMS) USB Hub [ Dimension & Weight ] Size (WxDxH) 433 x 166 x 447 mm Weight (net) 7.5 Kgs [ Operating Environment ] Temperature 5°C ~ 35°C...
