PV520 User's Manual
U s e r ' s
M a n u a l
P V 5 2 0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV520 and is the answer not in the manual?

Questions and answers

Related Manuals for CTX PV520

Summary of Contents for CTX PV520

  • Page 1 PV520 User’s Manual U s e r ’ s M a n u a l P V 5 2 0...

  • Page 2: Table Of Contents

    Table of Contents 1. Important Safety Instructions 2. Introduction 3. Recommended Use of the Monitor 4. Controls and Adjustments 5. Energy Declaration 6. Trouble Shooting 7. Technical Information 8. Product Overview Specifications PV520 User’s Manual...

  • Page 3: Important Safety Instructions

    I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CE Statement his device complies with the requirements of EMC (Electromagnetic Compatibility), and with Low Voltage directive. PV520 User’s Manual...
  • Page 4 PV520 User’s Manual TCO'99 CO99 compliant monitors must be compliant with TCO99 which is more stringent than MPRII. The purchase of TCO99 compliant monitors contributes to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 5 PV520 User’s Manual The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

  • Page 6: Safety Precautions

    PV520 User’s Manual Cadmium** Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.
  • Page 7 The Monitor has been dropped or the case has been damaged. 8. For use only with power supply: • Li Shin(LSE) LSE9901B1250 • Portrans UP06031120A • Lien Chang BSA-35-115 Notice : Actual safety specifications please refer to the label on the back of monitor. PV520 User’s Manual...

  • Page 8: Introduction

    Direct RGB input • XGA 1024x768 resolution, up to 16.7M colors • Lightweight compact design, weighing less than 6.5Kg • DPMS (power saving) • Universal adapter power supply • Anti-glare display • On-Screen Display (OSD) controls and adjustments PV520 User’s Manual...

  • Page 9: Package Overview

    Power Cord Power Adapter VGA Signal Cable CAUTION Keep the shipping carton in case the need arises to store or transport the unit. Let the LCD lie on its face when you put it into the carton. PV520 User’s Manual...
  • Page 10 PV520 User’s Manual Installation & Remove 1-1. Installing the Portrait...
  • Page 11 PV520 User’s Manual 1-2. Remove the Portrait...
  • Page 12 PV520 User’s Manual 2-1. Installing the Wall Mount Adapter*...
  • Page 13 PV520 User’s Manual 2-2. Remove the Wall Mount Adapter* * The Wall Mount Adapter is a optional item.

  • Page 14: Recommended Use Of The Monitor

    PV520 User’s Manual Recommended Use of the Monitor Power Use the type of power indicated on the marking label. Plugs Do not remove any of the prongs of the monitor's three-pronged power plug. Disconnect the power plug from the AC outlet if you are not going to use it for an indefinite period of time.
  • Page 15 PV520 User’s Manual Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. Environment Place the monitor on a flat level surface. Place the monitor in a well-ventilated place.

  • Page 16: Controls And Adjustments

    PV520 User’s Manual Controls and Adjustments nce you have installed this monitor with your system, please read the instructions in this section, they give you some guidelines on how to use the monitor more efficiently. And lead you through the various functions of the user controls and explain how to adjust the monitor to your personal preference.
  • Page 17 " ESC" button to exit. Contrast Press the " " button to enter the contrast, and press the " " or " " button to increase or decrease the contract level, then press " ESC" button to exit. PV520 User’s Manual...
  • Page 18 Manual") is used for 720x400 70Hz & 640x 350 70Hz under DOS mode adjustment. It will adjust the VGA input level and video quality to optimize. • For the adjustment, please execute the program, then processing the "Auto Tune" function in the OSD menu. 2. Color PV520 User’s Manual...
  • Page 19 Press the " " or " " button to select the R/G/B gain, then press " button to proceed. • Finally, press "ESC" button to leave this function. 3. Quality Here are some items can be adjusted as below, please press " item menu. PV520 User’s Manual " enter the "...
  • Page 20 Press the " " or " " button to select VGA Text mode 720x400 & 720x350 or VGA Graphics mode 640x400 & 640x350 to get better picture performance. 4. Position To adjust the Image or OSD position. PV520 User’s Manual...
  • Page 21 Press the " " or " " button to select between English, French, Italian, Spanish or German languages. 6. Recall Press the " " or " " button to select "Yes" or "No". Choosing Recall to callback all the settings for the current Input Signal mode to factory preset. PV520 User’s Manual...

  • Page 22: Energy Declaration

    VESA DPMS Standard H. sync V. sync 2. Power Consumption (120/230 Vac) VESA NUTEK state Normal operation Power Saving Suspend Position A1 Power Saving Position A2 PV520 User’s Manual Video State Blank Stand-by Blank Suspend Blank Power indicator Consumption Green < 35W Amber <...

  • Page 23: Trouble Shooting

    1024 x 768. Use "Size" to make an adjustment. Check and reconfigure the display mode of the vertical refresh rate of your graphic card to make it compatible with the LCD display. PV520 User’s Manual...
  • Page 24 "Unsupported Mode " message. No Signal Input The "No Signal Input" message indicates that the cable may not be plugged property into the host system. WARNING: Do not disassemble the monitor. Contact your dealer if needed. PV520 User’s Manual...

  • Page 25: Technical Information

    Pin Assignments Male Mini D-15 Connector Signal Red Video Green Video Blue Video Horizontal Sync Vertical Sync Ground No Connection SDA (DDC) SCL (DDC) 15 Pin Mini D-Sub 5, 6, 7, 8, 10, 11 4, 9 PV520 User’s Manual...

  • Page 26: Video Modes

    (Hz) 31.470 70.000 IBM VGA 31.469 70.000 IBM VGA 31.470 59.940 IBM VGA 37.861 72.000 VESA 37.500 75.000 VESA 37.879 60.000 VESA 48.077 72.000 VESA 46.880 75.000 VESA 48.363 60.000 VESA 56.476 70.000 VESA 60.020 75.000 VESA PV520 User’s Manual...

  • Page 27: Product Overview

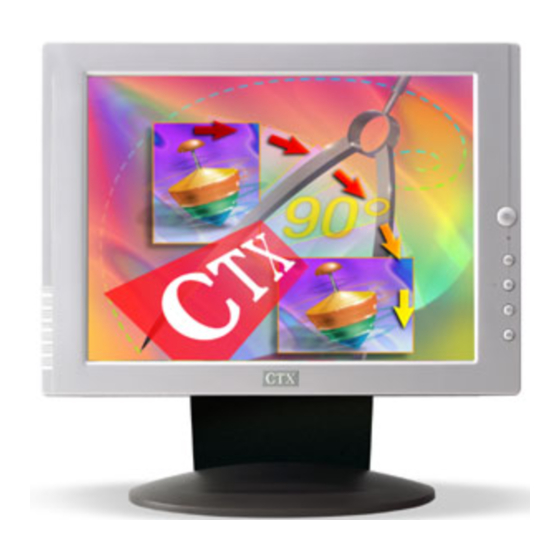

    PV520 User’s Manual Product Overview Pivot Function You can turn the LCD panel right 90 degree for particular viewing. Front View (unit: mm)
  • Page 28 PV520 User’s Manual Side View (unit: mm) For viewing clarity, you can tilt the LCD panel forward (up to 5 degrees) or backward (up to 20 degrees) Rear View (unit: mm)

  • Page 29: Specifications

    Auto-Tune, Brightness, Contrast, Color, Quality, Position, Language, Recall Size, Phase, Focus, Dither, Text/Graphics, Image Position, OSD Position Analog 0.7V peak to peak separate TTL Positive or Negative 100~240 VAC, 50/60 Hz (automatically) DDC 1/2B 383 x 172 x 373 mm 5.5 Kgs PV520 User’s Manual...
  • Page 30 [ Operating Environment ] Temperature 5°C ~ 35°C Humidity 20% ~ 80% (non-condensing) Altitude 10,000ft [ Storage Environment ] Temperature -20°C ~ 60°C Humidity 10% ~ 90% (non-condensing) Altitude 40,000ft Note: Specifications are subject to change without notice PV520 User’s Manual...
