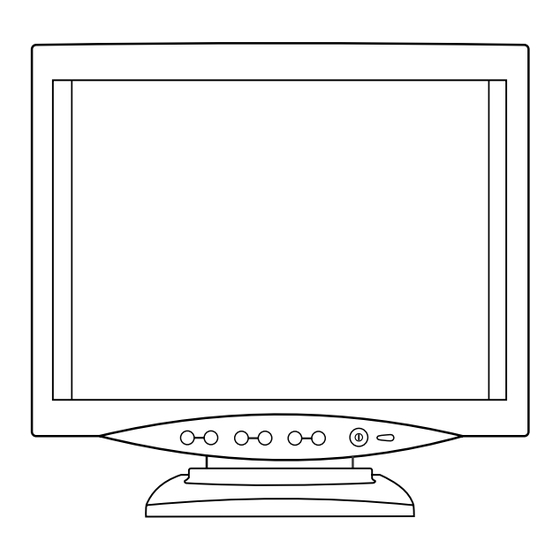

CTX PV411S User Manual

Ctx pv411s: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English
1

Table of Contents

Precautions ................................................................................. 2
About the Product ....................................................................... 3
Package Overview ...................................................................... 4
Product Overview ........................................................................ 5
Start Your Installation .................................................................. 7
Front Bezel Controls ................................................................... 11
How to Use the OSD Menus ....................................................... 13
On-Screen Display Menus ......................................................... 14
Troubleshooting ........................................................................... 16
Product Dimensions ................................................................... 17
Compatibility Modes ................................................................... 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV411S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTX PV411S

Summary of Contents for CTX PV411S

  • Page 1: Table Of Contents

    English Table of Contents Usage Notice Precautions ... 2 Introduction About the Product ... 3 Package Overview ... 4 Installation Product Overview ... 5 Start Your Installation ... 7 User Controls Front Bezel Controls ... 11 How to Use the OSD Menus ... 13 On-Screen Display Menus ...

  • Page 2: Usage Notice

    English Usage Notice To prevent the risk of fire or shock hazards, do not Warning- expose this product to rain or moisture. Please do not open or disassemble the product as this Warning- may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recom- mended in this user’s manual to maximize product usage life.

  • Page 3: Introduction

    Introduction About the Product Having a 14.1” inch flat panel screen with an active, thin-film transistor (TFT) liquid crystal display (LCD) , this product also demon- strates following outstanding features. Direct analog RGB input 14.1” diagonal screen size 16.7 million displayable colors 1024 x 768 resolution XGA/SVGA/VGA/VESA compatible 31~50kHz horizontal scan...

  • Page 4: Package Overview

    English Package Overview Power Adapter LCD Display Power Cord VGA Signal Cable USB Upstream Cable Warranty Card User’s Manual Installation Diskette ( for DDC1/2B)

  • Page 5: Installation

    English Installation Product Overview " Main Unit LCD Display User Controls Stand Power " Rear View Cable Management Device...
  • Page 6 English Connectors " Display Rear Connectors DC Power-In Display Input Display Stand Back USB Hub Ports 4 USB Downstream Ports USB Upstream Port...

  • Page 7: Start Your Installation

    Start Your Installation " Connecting the Display To setup this display, please refer to the following figure and procedures. 1. Be sure all equipment is off. 2. Connect the VGA signal cable from display input connector to the 15-pin connector of your host computer and tighten the screws. 3.
  • Page 8 English Display and system setting " For the optimum display of your monitor, please follow the procedures as below. 1. Adjust the vertical refresh of your graphic card to 60Hz: If the monitor setting of your computer provides vertical refresh selection, set the vertical refresh to 60Hz.
  • Page 9 " USB Hub $ USB Downstream Ports These four USB ports are available for connecting USB type peripheral devices such as keyboard, mouse, printer and so on. # USB Upstream Port This port is for connecting the USB Upstream cable to computer’s or other hub’s USB port.
  • Page 10 English " Cable Management 1. Route the cables through the cable management device. 2. Connect the cables to their respective connectors on the back panel of the display. Cable Management Device...

  • Page 11: User Controls

    User Controls Front Bezel Controls Control Brightness Minus/Minus Brightness Plus/Plus Menu button & Select/Auto % & ' ( Function 1. Decreases the brightness of the display image. 2. Decreases value of the adjustment items. 1. Increases the brightness of the display image. 2.
  • Page 12 English Contrast Minus/Minus Contrast Plus/Plus Power Switch Power LED 1. Decreases the contrast of the display image. 2. Decreases value of the adjustment items. 1. Increases the contrast of the display image. 2. Increases value of the adjustment items. Switches on/off the power of the LCD display.

  • Page 13: How To Use The Osd Menus

    How to Use the OSD Menus 1. Press the “ (Menu)” button to pop up the on-screen menu and to toggle between Main Menu Page 1 and Page 2. 2. Choose the adjustment items by pressing the “S/A (Select/Auto)” button. 3.

  • Page 14: On-Screen Display Menus

    English On-Screen Display Menus First OSD Menu: Horizontal Position Changes the horizontal position of the image. Vertical Position Changes the vertical position of the image. Frequency Changes the display data frequency to match the frequency of your graphic card. When you are experiencing vertical flickering bar, use this function to make an adjustment.

  • Page 15: Color Setting

    Second OSD Menu: Color Setting Obtains an optimum color of the display. Color Adjustment-Red Adjusts the red color of the display. Color Adjustment-Green Adjusts the green color of the display. Color Adjustment-Blue Adjusts the blue color of the display. Display Mode Shows the display resolution, vertical refresh, and horizontal scan of the current mode.

  • Page 16: Appendices Troubleshooting

    English Appendices Troubleshooting If you are experiencing trouble with the LCD display, refer to the follows. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. Check that all the I/O and power connectors are correctly and well connected as described in the “...

  • Page 17: Product Dimensions

    English Product Dimensions 342mm/13.5” 322.5mm/12.7” Front View 128.9mm/5.1” Side View 40.9mm/1.6” Top View...

  • Page 18: Compatibility Modes

    English Compatibility Modes Mode I BM & VES A VG A I BM & VES A VG A I BM & VES A VG A I BM & VES A VG A VES A S VG A VES A XG A H.
