External Power Supply - Crest Audio Mixing Console HPW Owner's Manual

power supply
12

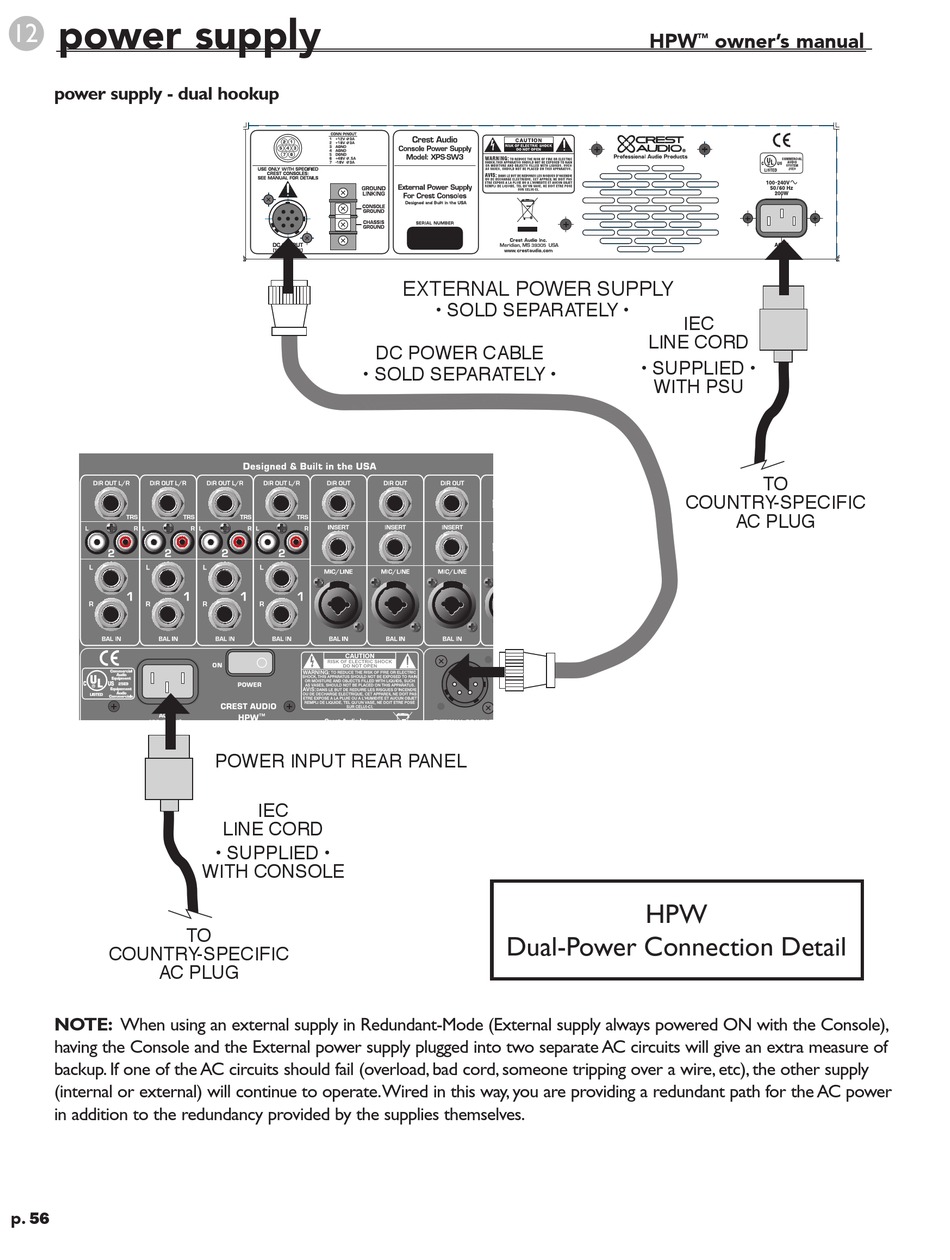

power supply - dual hookup
DIR OUT DIR OUT
INSERT INSERT
PUSH PUSH
BAL IN BAL IN
U L
COMMERCIAL
AUDIO
C ® US
SYSTEM
25E9
LISTED
AC IN
100-240V
50 / 60 Hz
200W
COUNTRY-SPECIFIC
AC PLUG
NOTE: When using an external supply in Redundant-Mode (External supply always powered ON with the Console),
having the Console and the External power supply plugged into two separate AC circuits will give an extra measure of
backup. If one of the AC circuits should fail (overload, bad cord, someone tripping over a wire, etc), the other supply
(internal or external) will continue to operate. Wired in this way, you are providing a redundant path for the AC power
in addition to the redundancy provided by the supplies themselves.
p. 56
CONN PINOUT
1 +12V @3A
2 1 2 +18V @3A
3 AGND
5 4 3
4 AGND
7 6 5 DGND
6 +48V @.65A
7 -18V @3A
USE ONLY WITH SPECIFIED
CREST CONSOLES:
SEE MANUAL FOR DETAILS
DC OUTPUT
( TO CONSOLE )
DIR OUT DIR OUT DIR OUT DIR OUT
INSERT INSERT INSERT INSERT
PUSH PUSH PUSH PUSH
BAL IN BAL IN BAL IN BAL IN
CAUTION
RISK OF ELECTRIC SHOCK
ON
DO NOT OPEN
AVIS :
RISQUE DE CHOC ÉLECTRIQUE—NE PAS OUVRIR
POWER WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
CREST AUDIO ATTENTION!
POUR ÉVITER LE RISQUE D'INCENDIE
OU DE CHOC ÉLECTRIQUE, NE PLACEZ PAS CET APPAREIL
SOUS LA PLUIE OU Á L'HUMIDITÉ
HP-Eight
NO USER SERVICABLE PARTS INSIDE. REFER
8-Bus Console
SERVICING TO QUALIFIED SERVICE PERSONNEL
Crest Audio Inc.
Designed & Built Fair Lawn, NJ 07410 USA
in the USA www.crestaudio.com
HP-Eight
POWER INPUT REAR PANEL
IEC
LINE CORD
• SUPPLIED •
WITH CONSOLE
TO
Crest Audio
Console Power Supply
Model: XPS-SW3

External Power Supply

GROUND
LINKING
For Crest Consoles:
HP-Eight
CONSOLE
GROUND
CHASSIS
GROUND SERIAL NUMBER
EXTERNAL POWER SUPPLY
• SOLD SEPARATELY •
DC POWER CABLE
• SOLD SEPARATELY •
DIR OUT DIR OUT
INSERT INSERT
PUSH PUSH
BAL IN BAL IN
1 2
3 4 5
6 7
EXT DC PINOUT
1 +12V @3A
2 +18V @3A
3 AGND
4 AGND
5 DGND
6 +48V @1A
EXTERNAL DC INPUT
7 -18V @3A
( )
FROM BACKUP SUPPLY
CONNECT ONLY TO
APPROVED CREST SUPPLY
Dual-Power Connection Detail
Dual-Power Connection Detail
HPW owner's manual
TM
Professional Audio Products
Designed and Built in the USA
U L COMMERCIAL
AUDIO
C US
®
SYSTEM
C AUTI ON 25E9
LISTED
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AC IN
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK,THIS APPARATUS SHOULD NOT BE EXPOSED TO RAIN
OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
AVIS:
DANS LE BUT DE REDUIRES LES RISQUES D INCENDIE
OU DE DECHARGE ELECTRIQUE, CET APPREIL NE DOIT PAS
ETRE EXPOSE A LA PLUIE OU A L HUMIDITE ET AUCUN OBJET
REMPLI DE LIQUIDE, TEL QU UN VASE, NE DOIT ETRE POSE
SUR CELUI-CI.
100-240V
Crest Audio Inc.
50 / 60 Hz
Fair Lawn, NJ 07410 USA
200W
www.crestaudio.com
IEC
LINE CORD
• SUPPLIED •
WITH PSU
TO
COUNTRY-SPECIFIC
AC PLUG
HP-Eight
HPW
