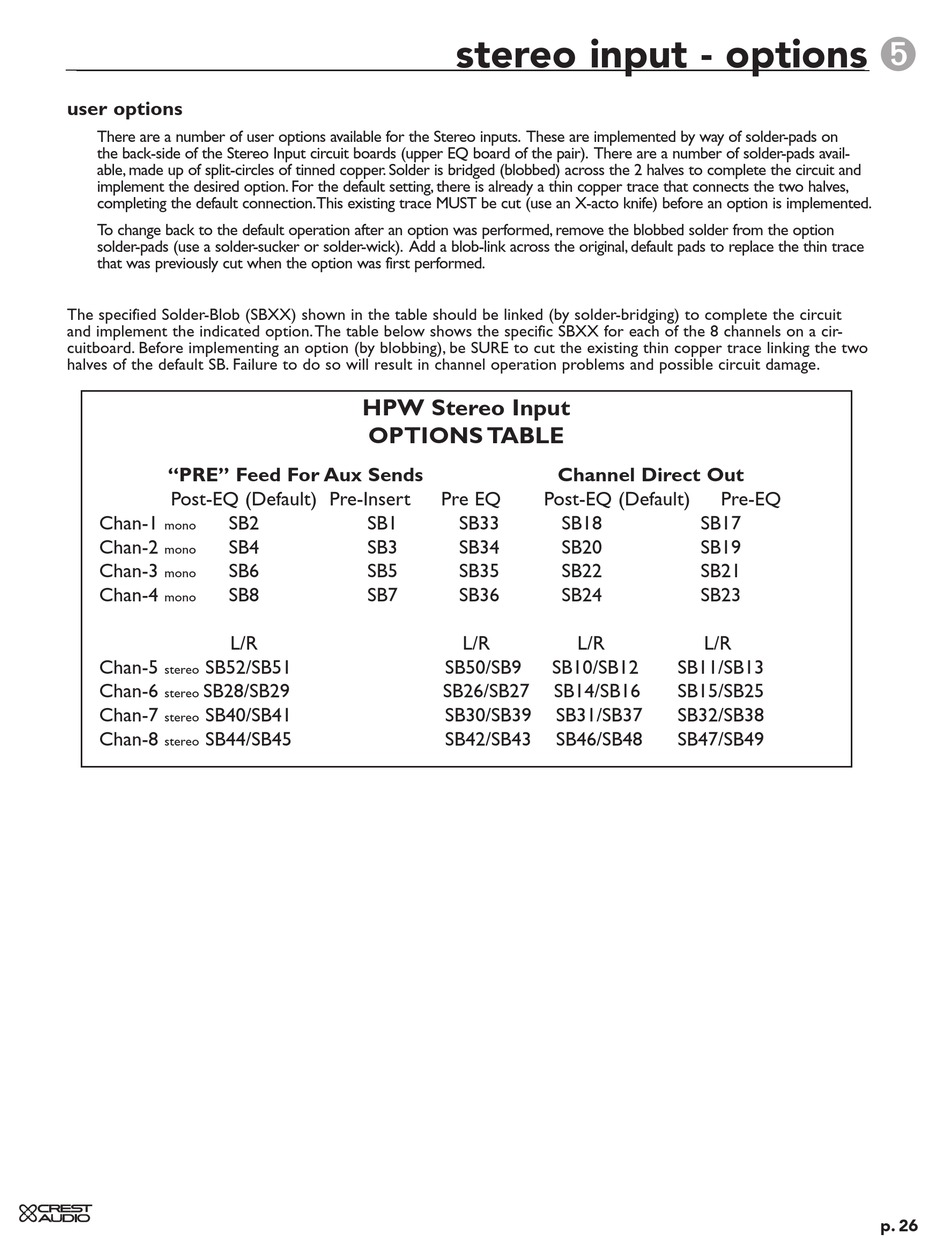

Crest Audio Mixing Console HPW Owner's Manual page 26

user options
There are a number of user options available for the Stereo inputs. These are implemented by way of solder-pads on
the back-side of the Stereo Input circuit boards (upper EQ board of the pair). There are a number of solder-pads avail-
able, made up of split-circles of tinned copper. Solder is bridged (blobbed) across the 2 halves to complete the circuit and
implement the desired option. For the default setting, there is already a thin copper trace that connects the two halves,
completing the default connection. This existing trace MUST be cut (use an X-acto knife) before an option is implemented.
To change back to the default operation after an option was performed, remove the blobbed solder from the option
solder-pads (use a solder-sucker or solder-wick). Add a blob-link across the original, default pads to replace the thin trace
that was previously cut when the option was first performed.
The specified Solder-Blob (SBXX) shown in the table should be linked (by solder-bridging) to complete the circuit
and implement the indicated option. The table below shows the specific SBXX for each of the 8 channels on a cir-
cuitboard. Before implementing an option (by blobbing), be SURE to cut the existing thin copper trace linking the two
halves of the default SB. Failure to do so will result in channel operation problems and possible circuit damage.
"PRE" Feed For Aux Sends
Post-EQ (Default) Pre-Insert
Chan-1 SB2
mono
Chan-2 SB4
mono
Chan-3 SB6
mono
Chan-4 SB8
mono
L/R
Chan-5 SB52/SB51
stereo
Chan-6 SB28/SB29
stereo
Chan-7 SB40/SB41
stereo
Chan-8 SB44/SB45
stereo
stereo input - options
HPW Stereo Input
OPTIONS TABLE
Pre EQ
SB1 SB33
SB3 SB34
SB5 SB35
SB7 SB36
L/R
SB50/SB9
SB26/SB27
SB30/SB39
SB42/SB43
Channel Direct Out
Post-EQ (Default) Pre-EQ
SB18 SB17
SB20 SB19
SB22 SB21
SB24 SB23
L/R L/R
SB10/SB12 SB11/SB13
SB14/SB16 SB15/SB25
SB31/SB37 SB32/SB38
SB46/SB48 SB47/SB49
