stereo inputs

HPW

owner's manual

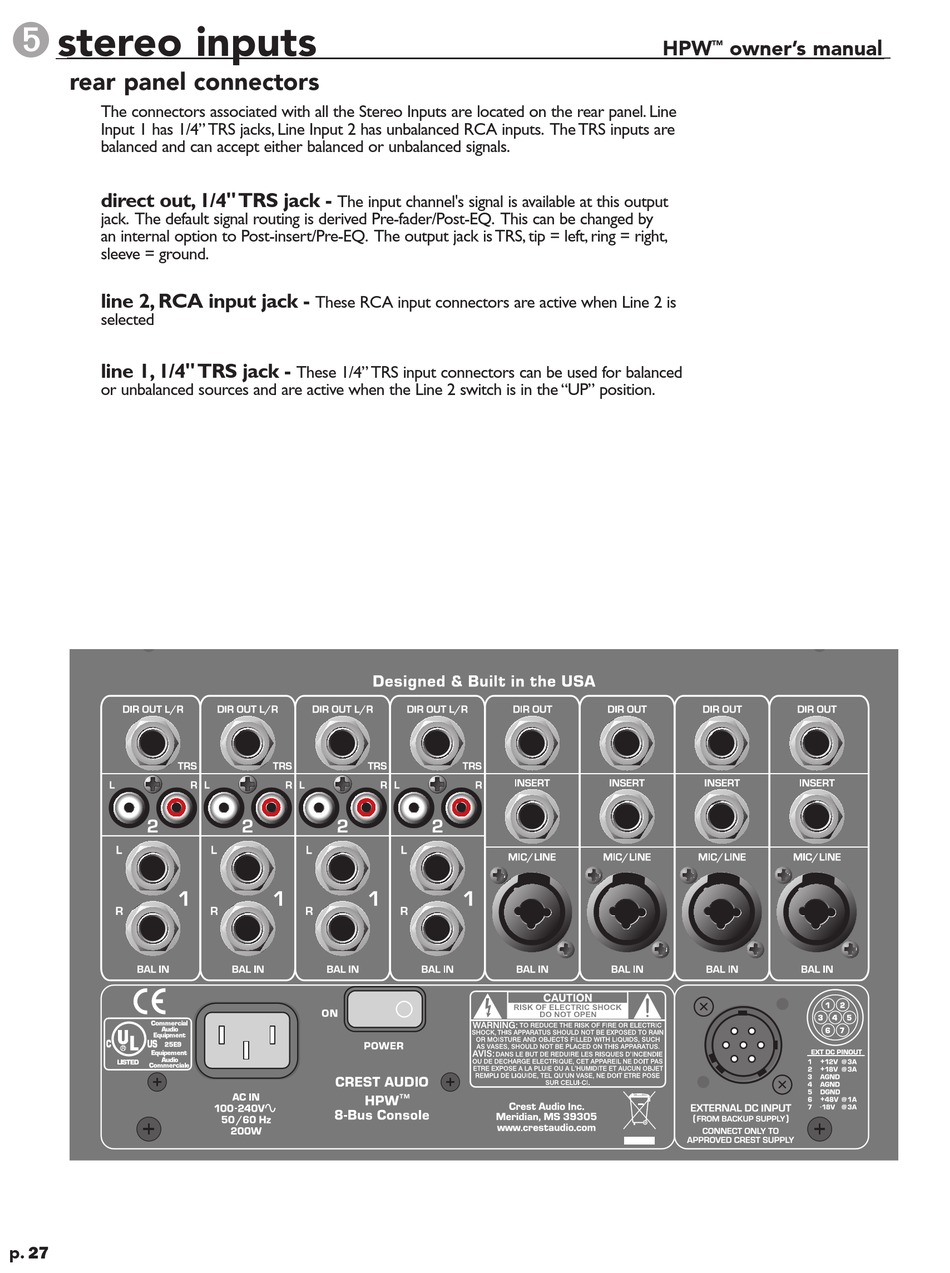

rear panel connectors

The connectors associated with all the Stereo Inputs are located on the rear panel. Line

Input 1 has 1/4" TRS jacks, Line Input 2 has unbalanced RCA inputs. The TRS inputs are

balanced and can accept either balanced or unbalanced signals.

direct out, 1/4" TRS jack -

The input channel's signal is available at this output

jack. The default signal routing is derived Pre-fader/Post-EQ. This can be changed by

an internal option to Post-insert/Pre-EQ. The output jack is TRS, tip = left, ring = right,

sleeve = ground.

line 2, RCA input jack -

These RCA input connectors are active when Line 2 is

selected

line 1, 1/4" TRS jack -

These 1/4" TRS input connectors can be used for balanced

or unbalanced sources and are active when the Line 2 switch is in the "UP" position.

p. 27
