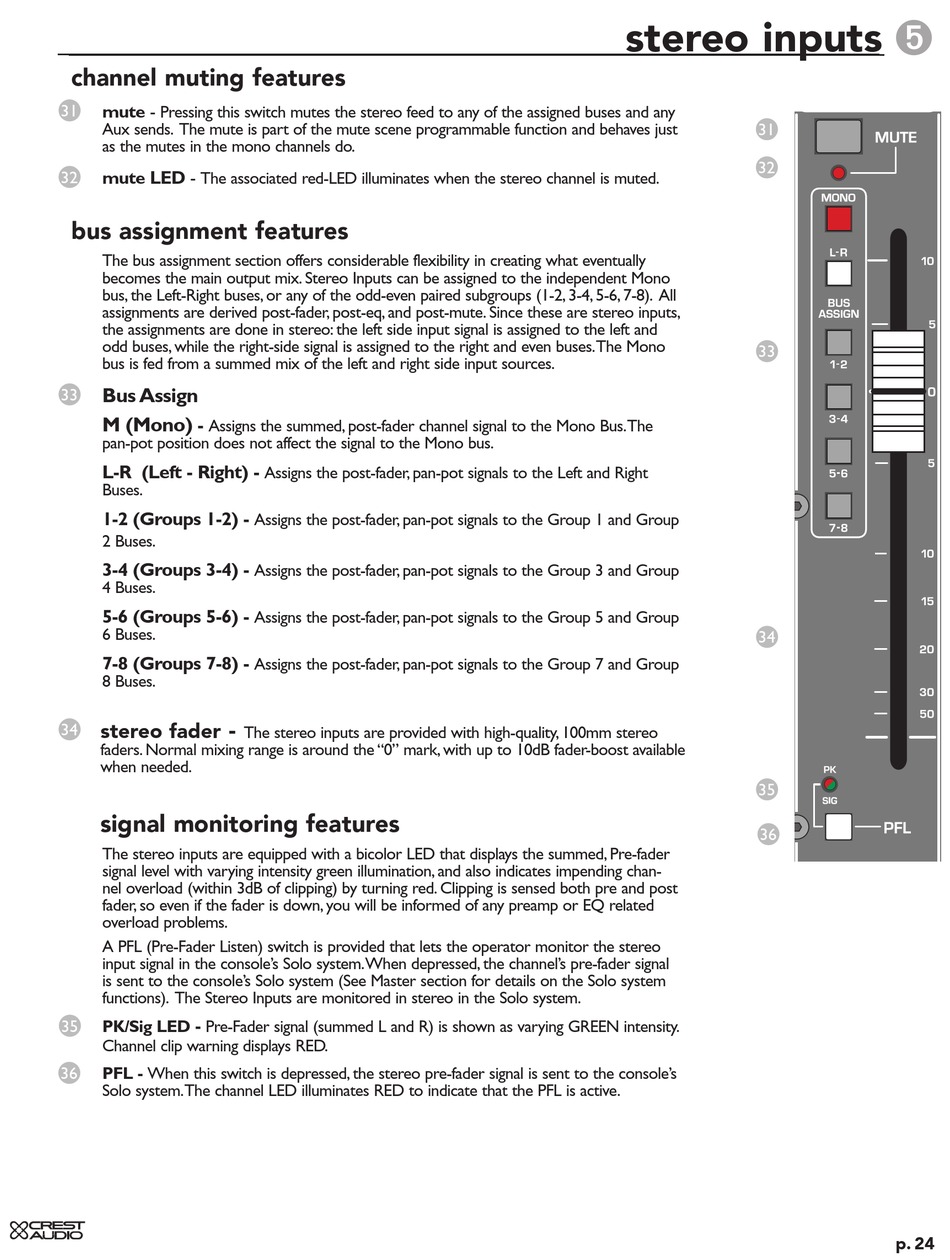

Stereo Inputs - Crest Audio Mixing Console HPW Owner's Manual

channel muting features
31 mute - Pressing this switch mutes the stereo feed to any of the assigned buses and any
Aux sends. The mute is part of the mute scene programmable function and behaves just
as the mutes in the mono channels do.
32 mute LED - The associated red-LED illuminates when the stereo channel is muted.
bus assignment features
The bus assignment section offers considerable flexibility in creating what eventually
becomes the main output mix. Stereo Inputs can be assigned to the independent Mono
bus, the Left-Right buses, or any of the odd-even paired subgroups (1-2, 3-4, 5-6, 7-8). All
assignments are derived post-fader, post-eq, and post-mute. Since these are stereo inputs,
the assignments are done in stereo: the left side input signal is assigned to the left and
odd buses, while the right-side signal is assigned to the right and even buses. The Mono
bus is fed from a summed mix of the left and right side input sources.
Bus Assign
33
M (Mono)
-
Assigns the summed, post-fader channel signal to the Mono Bus. The
pan-pot position does not affect the signal to the Mono bus.
L-R (Left - Right) -
Buses.
1-2 (Groups 1-2) -
2 Buses.
3-4 (Groups 3-4) -
4 Buses.
5-6 (Groups 5-6) -
6 Buses.
7-8 (Groups 7-8) -
8 Buses.
-
stereo fader
34
faders. Normal mixing range is around the "0" mark, with up to 10dB fader-boost available
when needed.
signal monitoring features
The stereo inputs are equipped with a bicolor LED that displays the summed, Pre-fader
signal level with varying intensity green illumination, and also indicates impending chan-
nel overload (within 3dB of clipping) by turning red. Clipping is sensed both pre and post
fader, so even if the fader is down, you will be informed of any preamp or EQ related
overload problems.
A PFL (Pre-Fader Listen) switch is provided that lets the operator monitor the stereo
input signal in the console's Solo system. When depressed, the channel's pre-fader signal
is sent to the console's Solo system (See Master section for details on the Solo system
functions). The Stereo Inputs are monitored in stereo in the Solo system.
- Pre-Fader signal (summed L and R) is shown as varying GREEN intensity.
35 PK/Sig LED
Channel clip warning displays RED.
PFL - When this switch is depressed, the stereo pre-fader signal is sent to the console's
36
Solo system. The channel LED illuminates RED to indicate that the PFL is active.
Assigns the post-fader, pan-pot signals to the Left and Right
Assigns the post-fader, pan-pot signals to the Group 1 and Group
Assigns the post-fader, pan-pot signals to the Group 3 and Group
Assigns the post-fader, pan-pot signals to the Group 5 and Group
Assigns the post-fader, pan-pot signals to the Group 7 and Group
The stereo inputs are provided with high-quality, 100mm stereo

stereo inputs

31
32
33
34
35
36
