Summary of Contents for Bartscher B 28 Plus

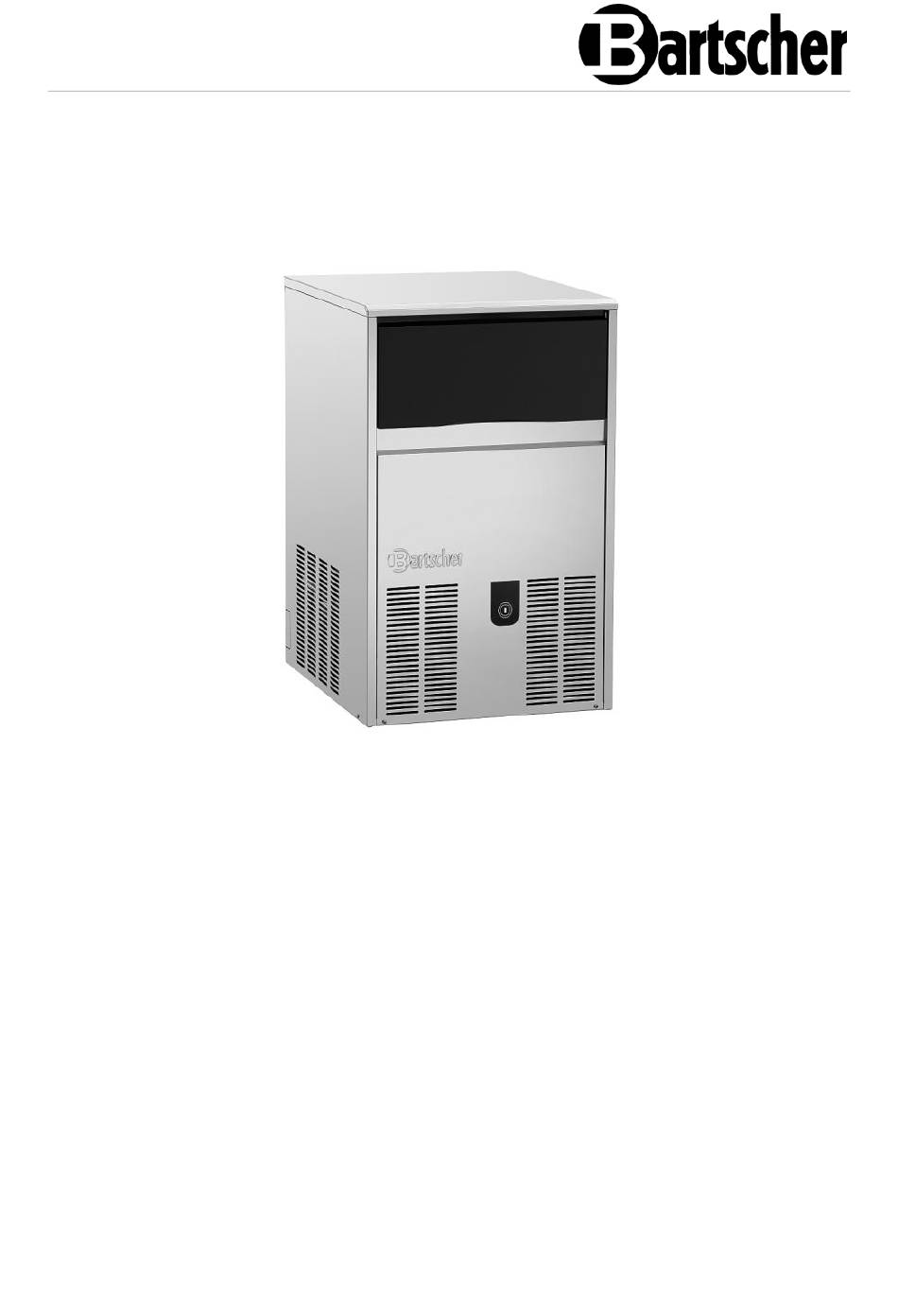

- Page 1 B 28 Plus - B 38 Plus - B 46 Plus - B 70 Plus - B 86 Plus 104523-104538-104548-104583-104593...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-12-10...
- Page 3 Bes chr eibung...
- Page 5 Quick Start Guide TOUCH Operation status LED indicator status Standby every 30” every 10” Storage container full every 0.5” Production cycle start Ice production ON 5” + OFF Alarm blackout ON 3” + OFF Cleaning cycle In case of alarm: 1.
-
Page 7: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 5 Unintended Use ..................5 General information ..................6 Liability and Warranty ................6 Copyright Protection ................6 Declaration of Conformity ................ 6 Transport, Packaging and Storage .............. -
Page 8: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hri ften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewa hrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 9: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 10 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
-
Page 11: Intended Use
Safety • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force. -
Page 12: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 13: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 14: Technical Data
Technical Data Technical Data Technical Specifications Ice-cube maker B 28 Plus Name: 104523 Art. No.: Material: stainless steel, plastic, steel galvanised Ice cube design: tapered form (full taper) Number of ice cube sizes: Ice cube size (W x D x H), in mm:... - Page 15 Technical Data Ice-cube maker B 38 Plus Name: 104538 Art. No.: Material: stainless steel, plastic, steel galvanised Ice cube design: tapered form (full taper) Number of ice cube sizes: Ice cube size (W x D x H), in mm: 35 x 37 x 32 Ice cube weight, in g: Ice cubes output / work cycle: Max.
- Page 16 Technical Data Ice-cube maker B 46 Plus Name: 104548 Art. No.: Material: stainless steel, plastic, steel galvanised Ice cube design: tapered form (full taper) Number of ice cube sizes: Ice cube size (W x D x H), in mm: 35 x 37 x 32 Ice cube weight, in g: Ice cubes output / work cycle: Max.
- Page 17 Technical Data Ice-cube maker B 70 Plus Name: 104583 Art. No.: Material: stainless steel, plastic, steel galvanised Ice cube design: tapered form (full taper) Number of ice cube sizes: Ice cube size (W x D x H), in mm: 35 x 37 x 32 Ice cube weight, in g: Ice cubes output / work cycle: Max.
- Page 18 Technical Data Ice-cube maker B 86 Plus Name: 104593 Art. No.: Material: stainless steel, plastic, steel galvanised Ice cube design: tapered form (full taper) Number of ice cube sizes: Ice cube size (W x D x H), in mm: 35 x 37 x 32 Ice cube weight, in g: Ice cubes output / work cycle: Max.
-
Page 19: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 1. Housing 2. Storage container lid 3. Storage container 4. Water drain opening 5. Lamellar curtain 6. Front bezel 7. Power cord with mains plug 8. Water connection 9. Drain port 10. Feet (4 pcs) 11. -
Page 20: Operation
Installation and operation Operation When producing ice cubes in the shape of a full cone using the spray system, the supplied water is sprayed on the evaporator unit (here in the form of a water pan) with a pump. When in contact with a suitable evaporator's element water freezes, creating condensed, crystal clear, full ice cube cones. - Page 21 Installation and operation NOTE! The manufacturer disclaims all liability and provides no warranty for damages, which may be attributed to non-observance of regulations or incorrect installation. Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards.
- Page 22 Installation and operation • Then lift the appliance with a suitable lifting equipment (lift truck or the like) and remove he wooden base. • Place the appliance in a suitable location. Requirements for Place of Installation When selecting the place of installation, provide for the following conditions: –...
- Page 23 Installation and operation 4. Connect the other end of the tube to the water connection at the back of the appliance. NOTE! Due to practical and safety reasons we suggest to integrate a shut-off valve, which is not a part of the delivery (Fig. 7): 1.
-
Page 24: Operation
Installation and operation • The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y. The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y. The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y. - Page 25 Installation and operation After dispensing ice cubes clean the probe off of ice remains, so that the new ice cubes production process re-starts faster (Fig. 14). Setting the Size of Ice Cubes With time, due to the change in ambient temperature in a room, the size and weight of ice cubes may change.
- Page 26 Installation and operation Drain pump alarm (optionally) blinks 1x blinks 1x Time extension between two production blinks 2x ON 3" cycles alarm Storage container probe damage alarm blinks 3x ON 3" Upload/download HACCP data — blinks 3x blinks 3x software update Condenser probe damage alarm blinks 4x ON 3"...
- Page 27 Installation and operation Indicator / Alarm WHITE High pressure alarm Gas charge phase alarm ON 1" ON 1" No water alarm ON 3" blinks 1x Periodic maintenance alarm ON 3" ON 3" Capacitive sensor alarm (optionally) ON 3" blinks 3x OFF: LED indicator / colour always off ON: LED indicator / colour always on Blinking: LED indicator / colour on for 0.5 s and off for 0.5 s...
-
Page 28: Cleaning
Cleaning Cleaning Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. - Page 29 Cleaning If the appliance is not to be used for a long time: – switch the appliance off and disconnect it from power and water supply; – remove the produced ice from the storage container; – drain the entire water; –...
- Page 30 Cleaning Cleaning and Disinfecting Cycle To avoid problems caused by water hardness, and thus generation of impurities on parts and components that come in contact with water, the ice-cube maker is equipped with 'Self Cleaning' function. This function, owing to citric acid's cleaning action, makes it possible to remove limesacle and impurities from the appliance.
- Page 31 Cleaning When the cleaning and disinfecting cycle is over the appliance switches to Standby mode. 10. Remove the plug of the evaporator's water pan and empty it by draining water (Fig. 18). Next, re-fit the plug. 11. Pour fresh potable water into the evaporator's pan to fill it up. 12.
-
Page 32: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche ATTENTION! The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. These malfunctions may be cleared by a qualified refrigeration technician. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. - Page 33 Possible Malfunctions Malfunction Appliance Condition Solution Alarm Filling level probe Appliance stops Check probe connection to PCB alarm Check probe integrity Replace the damaged probe Periodic Appliance continues Contact the service company maintenance operation (Reset the alarm by touching the alarm control key for 10 seconds) Condenser high...
- Page 34 Possible Malfunctions Malfunction Appliance Condition Solution Alarm Drain pump alarm Clogged discharge Check the appliance for obstacles (if available) opening in discharge route Discharge pump Replace the discharge pump damaged Capacitive sensor Appliance stops Check electric power connection alarm (if available) Replace the sensor Condenser cleaning Appliance continues...
-
Page 35: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
