Ice-cube maker

Advertisement

„Compact Ice"
A100.062
Bedienungsanleitung
D/A/CH
Eiswürfelbereiter
Seite 3 bis 15
Instruction manual
Ice-Cube maker
GB/UK
from page 17 to 29
Mode d'emploi
Machine à glaçons
F/B/CH
de page 31 à page 43
- 1 -
V6/0512

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compact Ice A100.062 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bartscher Compact Ice A100.062

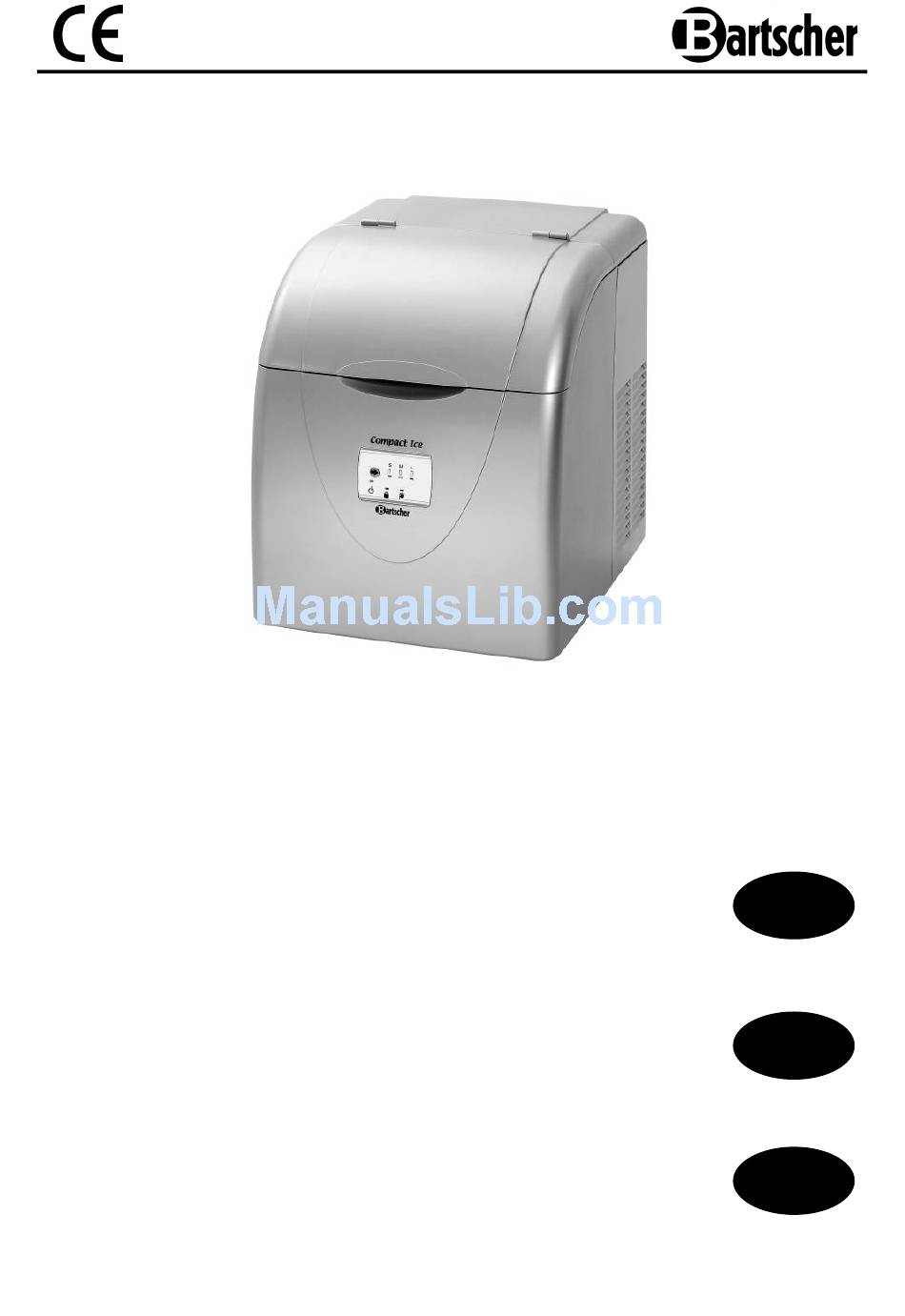

  • Page 1 „Compact Ice“ A100.062 Bedienungsanleitung D/A/CH Eiswürfelbereiter Seite 3 bis 15 Instruction manual Ice-Cube maker GB/UK from page 17 to 29 Mode d’emploi Machine à glaçons F/B/CH de page 31 à page 43 - 1 - V6/0512...
  • Page 2: Table Of Contents

    25-26 6. Cleaning and maintenance 6.1 Safety advice 6.2 Cleaning and Descaling 6.3 Safety instructions for maintenance 7. Possible Malfunctions 8. Waste disposal Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax: +49 (0) 5258 971-120...
  • Page 3: General Information

    1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.
  • Page 4: Liability And Warrantees

    1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.
  • Page 5: Safety

    2. Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.
  • Page 6: Intended Use

    CAUTION! o The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
  • Page 7: Delivery, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.
  • Page 8: Technical Data

    4. Technical data 4.1 Technical specification Description Ice cube maker „Compact Ice“ A100.062 Article no.: Body: Steel-grey – plastic Cooling agent/filling quantity: R134a / 85 g 230 V ~ 50 Hz Connection: 210 W Capacity of tank: 4.5 litres / approx. 150 ice-cubes Performance: 15 kg / 24 hours Dimensions:...
  • Page 9: Installation And Operation

    5. Installation and operation 5.1 Safety instructions WARNING! Electrical hazard! The device must only be connected to a properly installed single socket with protective contact. Never yank cord to disconnect from outlet. Cable must not touch any hot parts. • See that the cable does not touch any heat sources or sharp edges.
  • Page 10: Installation And Connection

    5.2 Installation and connection • Discard the complete packing material after unpacking the device. • Place the device on top of an even and safe surface which supports the weight of the device. • Choose a surface where the ice cube maker is not exposed to direct sunlight, or close to a direct source of heat such as a cooker, oven or radiator.
  • Page 11: Cleaning And Maintenance

    WARNING! Danger of injury! Do not touch the vaporizer during ice production! • Make sure to check the water level at regular intervals during the operation of the ice cube maker. If the water pump cannot inject any water, the ice cube maker shuts off automatically and the indicator lights up.
  • Page 12: Cleaning And Descaling

    6.2 Cleaning and Descaling Cleaning o Clean the ice cube maker thoroughly after every use and after longer periods of non-use. o Disconnect the ice cube maker from its power source (remove the plug!) o Remove the ice cube container and wash it in running water. o Clean the interior and exterior of the unit with warm water and a soft cloth.
  • Page 13: Possible Malfunctions

    7. Possible Malfunctions PROBLEM POSSIBLE CAUSES SOLUTION No water. Switch off device, fill up with The indicator water and switch on again. lights up Too much ice in the ice The indicator cube basket. Remove ice from the ice cube lights up.
  • Page 14: Waste Disposal

    NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
