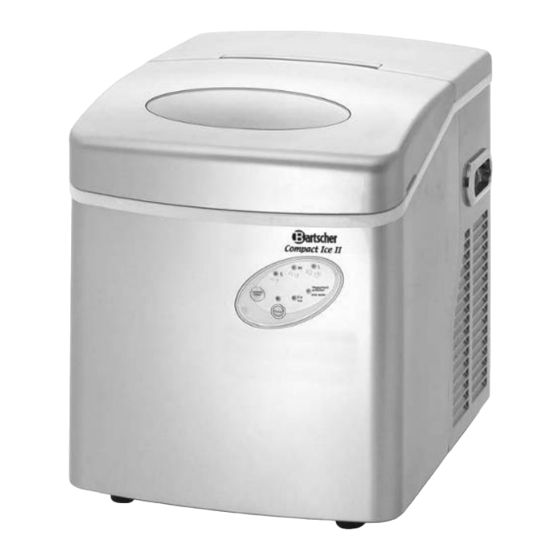

Bartscher Compact Ice II A100.063G Instruction Manual
Hide thumbs
Also See for Compact Ice II A100.063G:
- Instruction manual (71 pages) ,
- Instruction manual (50 pages)
Table of Contents
Advertisement
„Compact Ice II"
A100.063G
Bedienungsanleitung
Eiswürfelbereiter
D/A/CH
Seite 3 bis 15
Instruction manual
GB/UK
Ice maker
from page 17 to 29
Mode d'emploi
Machine à glaçons
F/B/CH
de page 31 à page 43
Gebruiksaanwijzing
IJsblokjestoestel
NL/B
blz. 45 t/m 57
Instrukcja obsługi
PL
Kostkarka do lodu
strony od 59 do 71
V5/0811
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bartscher Compact Ice II A100.063G
Summary of Contents for Bartscher Compact Ice II A100.063G
- Page 1 „Compact Ice II“ A100.063G Bedienungsanleitung Eiswürfelbereiter D/A/CH Seite 3 bis 15 Instruction manual GB/UK Ice maker from page 17 to 29 Mode d’emploi Machine à glaçons F/B/CH de page 31 à page 43 Gebruiksaanwijzing IJsblokjestoestel NL/B blz. 45 t/m 57 Instrukcja obsługi Kostkarka do lodu strony od 59 do 71...
-
Page 2: Table Of Contents
25-26 6. Cleaning and maintenance 6.1 Safety advice 6.2 Cleaning and decalcification 6.3 Safety instructions for maintenance 7. Possible Malfunctions 8. Waste disposal Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax: +49 (0) 5258 971-120... -
Page 3: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 5: Safety
2. Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 6: Intended Use
CAUTION! o The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device. -
Page 7: Delivery, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 8: Technical Data
4. Technical data 4.1 Technical specification Name "Compact Ice II" ice maker A100.063G Code-No: Coolant / quantity: R600a / 130 g Power: 230 V ~ 50 Hz 160 W Construction: steel - plastic Water tank capacity: 4.5 liters Output: 15 kg / 24 hours Dimensions: width 380 x depth 435 x height 431 mm Weight:... -
Page 9: Installation And Operation
Contol panel Ice cube size indicators Selection button size of ice cubes Indicator "Fill the water tank" Operation light "Ice" indicator ON / OFF switch 5. Installation and operation 5.1 Safety instructions WARNING! Electrical hazard! The device must only be connected to a properly installed single socket with protective contact. -
Page 10: Installation And Connection
WARNING! Hazard via electrical current! The device can cause injuries due to improper installation! Before installation the local power grid specification should be compared with that of the device (see type label). Connect the device only in case of compliance! Take note of the security advice! 5.2 Installation and connection •... -
Page 11: Cleaning And Maintenance
• Open the lid and remove the ice cube basket. Fill the water tank with water to a level below the mark. Re-insert the ice cube basket. • Press the ON / OFF switch on the control panel to start the ice cube production cycle. •... -
Page 12: Cleaning And Decalcification
6.2 Cleaning and decalcification Cleaning o The device should be cleaned regularly. o Remove the ice maker from the socket (pull the plug!). o Remove and clean the ice cube basket. o Clean the inside and outside the device with warm water and a soft cloth. o Use only a soft cloth. -
Page 13: Possible Malfunctions
7. Possible Malfunctions PROBLEM POSSIBLE CAUSES SOLUTION The indicator light Turn off the device, pour in displays "Fill the water No water in the water tank. water and then turn on the tank." device. There are too many ice The indicator light Remove the ice cubes from cubes in the ice cube displays "Ice"... -
Page 14: Waste Disposal
For that purpose disconnect device from mains supply and remove mains connection cable from the device. NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
